Land Rover Discovery: Uni-body, Subframe and Mounting System Front Subframe Front Bushing (G1348232) / Removal and installation

Land Rover Discovery (2009–2016) Service Manual / Body / Frame and mounting / Uni-body, Subframe and Mounting System Front Subframe Front Bushing (G1348232) / Removal and installation

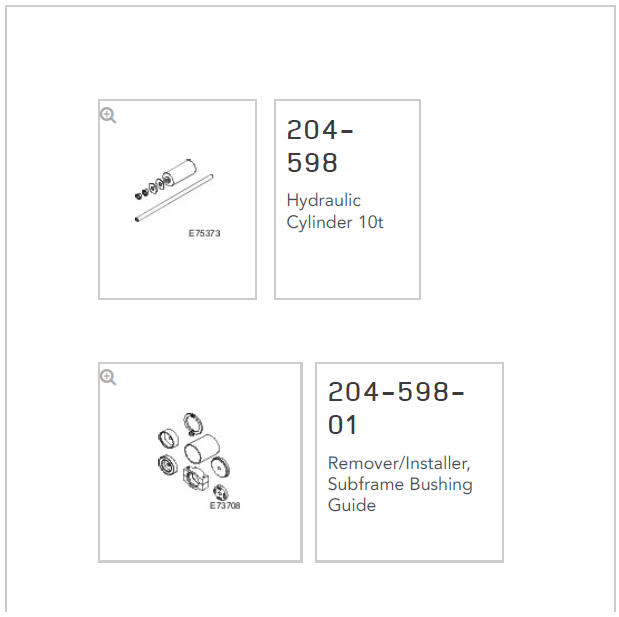

SPECIAL TOOL(S)

Uni-body, subframe and mounting system front subframe front bushing (g1348232) removal and installation

REMOVAL

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Front Subframe (502-00, Removal and Installation).

CAUTION:

Mark the components to aid installation.

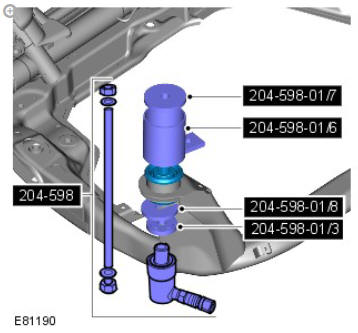

Uni-body, subframe and mounting system front subframe front bushing (g1348232) removal and installation

  • Remove the bushing.

    Special Tool(s): 204-598, 204-598-01

  • Special tool 204-598-01/8 is used to start the bushing removal process, and must be removed after the bushing has released, as it will not pass through the sub-frame bushing aperture.

INSTALLATION

CAUTION:

Make sure that the component aligns with the installation mark.

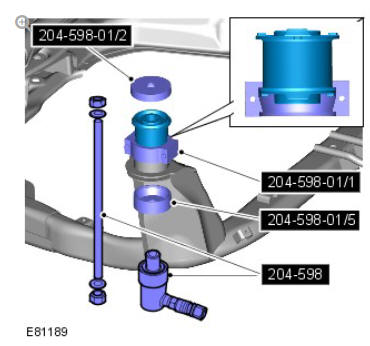

Uni-body, subframe and mounting system front subframe front bushing (g1348232) removal and installation

Install the bushing.

Special Tool(s): 204-598, 204-598-01

Refer to: Front Subframe (502-00, Removal and Installation).

Uni-body, subframe and mounting system front subframe rear bushing (G1348233) removal and installation

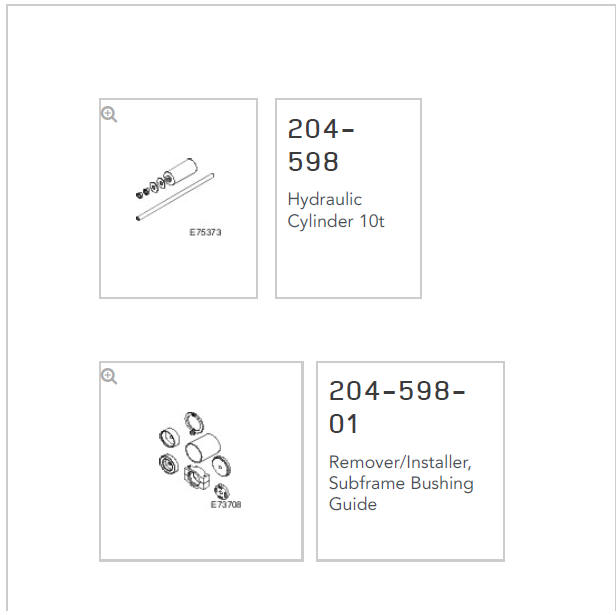

SPECIAL TOOL(S)

Uni-body, subframe and mounting system front subframe rear bushing (G1348233) removal and installation

REMOVAL

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

CAUTION:

Mark the components to aid installation.

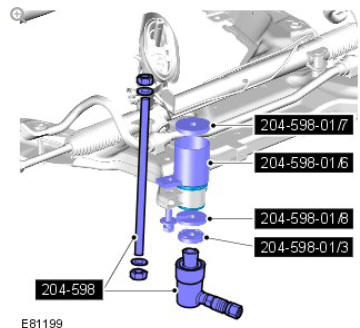

Uni-body, subframe and mounting system front subframe rear bushing (G1348233) removal and installation

  • Special tool 204-598-01/8 is used to start the bushing removal process, and must be removed after the bushing has released, as it will not pass through the sub-frame bushing aperture.
  • Remove the bushing.

    Special Tool(s): 204-598, 204-598-01

INSTALLATION

CAUTION:

Make sure that the component aligns with the installation mark.

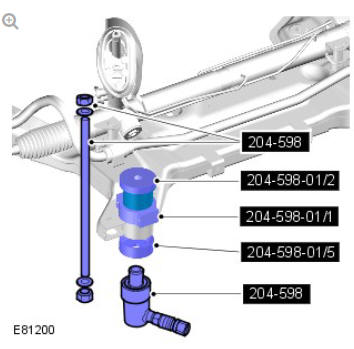

Uni-body, subframe and mounting system front subframe rear bushing (G1348233) removal and installation

Install the bushing.

Special Tool(s): 204-598, 204-598-01

Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).
