Controls overview

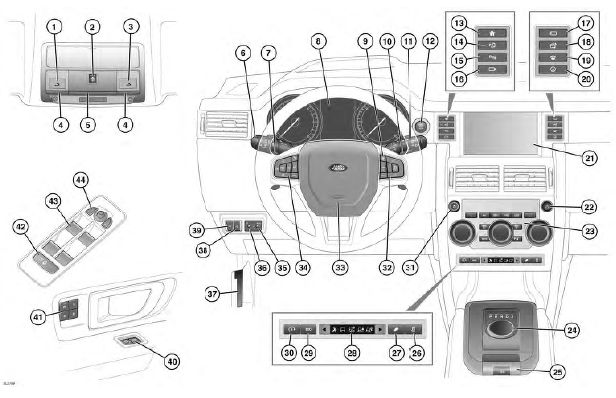

DRIVER CONTROLS

For further information on the numbered item, refer to the page number.

  1. InControl remote - Breakdown call
  2. Roof blind
  3. InControl remote - SOS emergency call
  4. Front map reading lamps
  5. Front interior lamp
  6. Exterior lamps and Trip computer
  7. Downshift gear paddle
  8. Instrument panel and Message centre
  9. Heated steering wheel
  10. Upshift gear paddle
  11. Wiper/washers controls
  12. Engine START/STOP
  13. Touch screen home menu
  14. Touch screen General settings or Park assist
  15. Mute or Parking aids off
  16. Touch screen on/off or Surround cameras
  17. Media source
  18. Media system
  19. Telephone
  20. Navigation
  21. Touch screen
  22. Hazard warning lamps.
  23. Heating, ventilation and air conditioning controls
  24. Rotary gear selector (123), for Manual transmission
  25. Electric Parking Brake (EPB)
  26. Dynamic Stability Control (DSC)
  27. Hill Descent Control (HDC)
  28. Terrain Response
  29. ECO Program
  30. Intelligent stop/start
  31. Media on/off and volume
  32. Cruise control or Adaptive Cruise Control (ACC)
  33. Horn.
  34. Audio controls, Voice control, and Telephone
  35. Headlamp levelling
  36. Interior illumination control
  37. Bonnet release
  38. Lane departure warning
  39. Tailgate release/open
  40. Central locking/unlocking
  41. Driving position memory
  42. Rear window isolation and child door locks
  43. Window controls
  44. Mirror adjustment/power-folding mirrors
