Land Rover Discovery: Rear head restraints
Fixed seat
.gif)

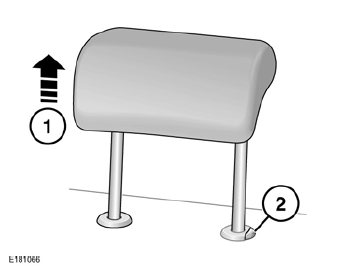

- To raise, pull the head restraint
upwards to the uppermost position.
The head restraint will lock in this
position.
- To lower, press the button on the
stem collar in and push down on the
head restraint.
The head restraints can be removed, if
required (e.g., to fit larger child seats).
To remove a head restraint, first raise the
head restraint to its uppermost position.
With the adjusting collar pressed in, lift
the restraint out of the seatback.
Always store a removed head
restraint securely.
To refit a head restraint, make sure that it
is facing the correct direction. Insert the
stems of the head restraint into the
sockets and push it downwards until at
least the first click.
Sliding seat
.gif)

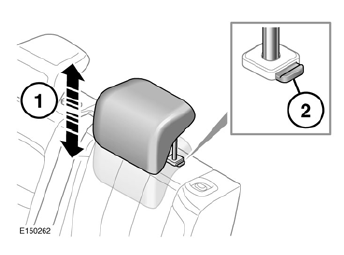

- To raise, pull the head restraint
upwards to the uppermost position.
The head restraint will lock in this
position.
- To lower, press the button on the
stem collar in and push down on the
head restraint.
.gif)
The head restraints can be removed, if
required (e.g., to fit larger child seats).
Note: Two people are required for this
operation.
To remove a head restraint:

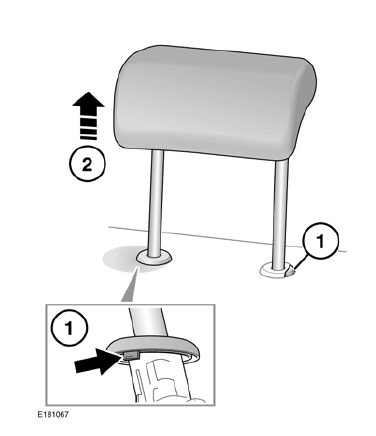

- With the head restraint in the fully
raised position, press the *release tag
below the stem collar. At the same
time, press the button on the other
stem collar.
*To locate the release tag, press
down on the seat material in the area
shown on the illustration.
- A second person is now required to
lift out the head restraint.
Always store a removed head
restraint securely.
To refit a head restraint, make sure that it
is facing in the correct direction. Insert
the stems of the head restraint into the
stem collars and push it downwards.
