CHILD SAFETY LOCKS
If children are to be carried in the rear seat positions, it is recommended that the rear door interior handles are disabled.

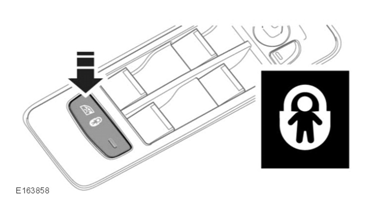

Press the switch to activate the child door locks and inhibit the rear windows. The LED indicator will illuminate when active and a message will display in the Message centre.
To switch off, press the switch again. The LED will extinguish and a message will display in the Message centre.
