Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Upper Timing Chain (G1875889) / Removal

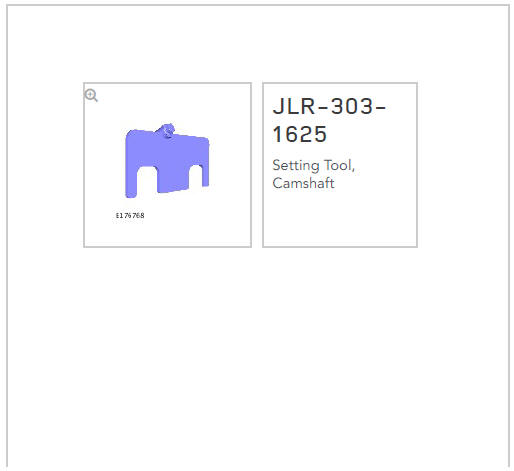

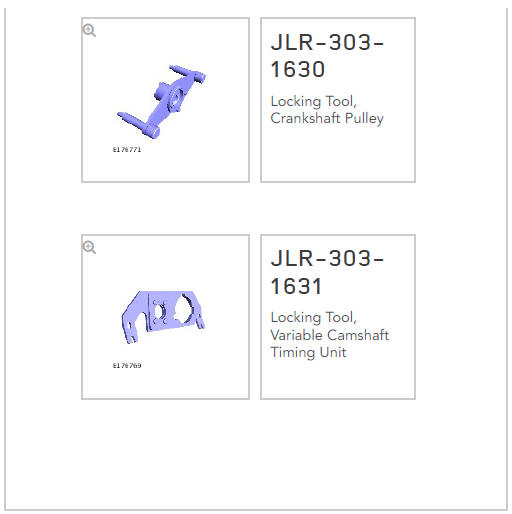

SPECIAL TOOL(S)
.jpg)
.jpg)
PART(S)
.jpg)
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the battery ground cable.
- Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Upper Timing Cover (303-01B Engine - INGENIUM I4 2.0L
Diesel, Removal and Installation).
CAUTION:
Make sure the camshaft timing marks are positioned as
illustrated.
.jpg)

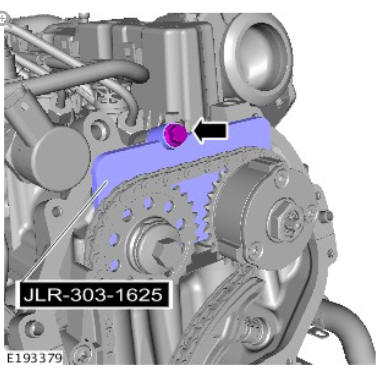

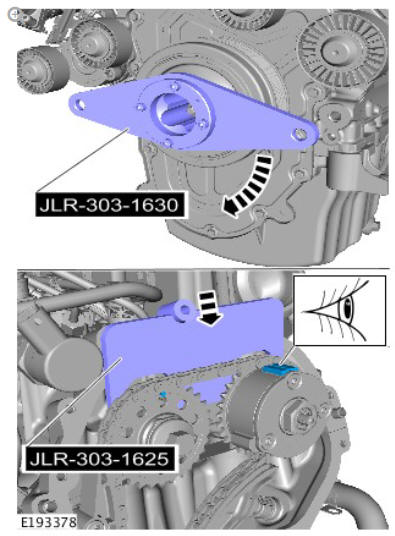

- Using the special crankshaft pulley tool, rotate the crankshaft
until the camshaft locking tool can be installed.
Special Tool(s): JLR-303-1630
Special Tool(s): JLR-303-1625
.jpg)
Torque: 10 Nm
.jpg)

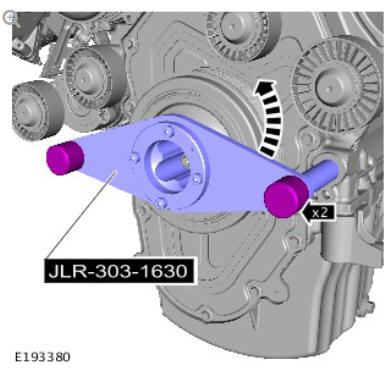

- Rotate the crankshaft counter-clockwise.
Special Tool(s): JLR-303-1630

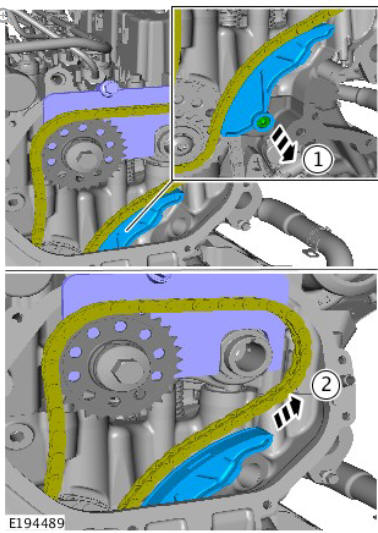

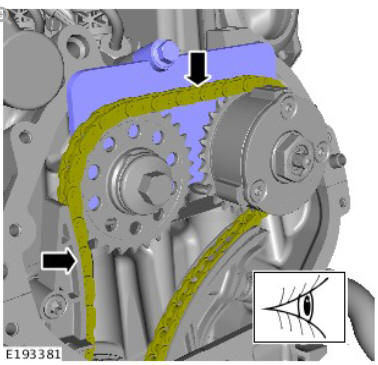

NOTE:
The timing chain will not be under tension in the positions
illustrated.
.jpg)
.jpg)
Install the special tool.
.jpg)

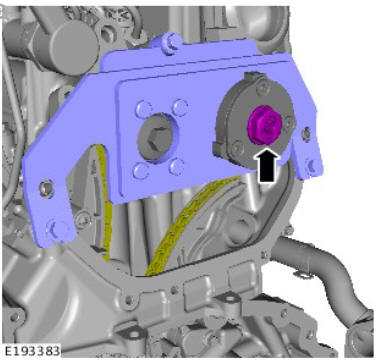

Loosen, but do not fully remove the bolt.

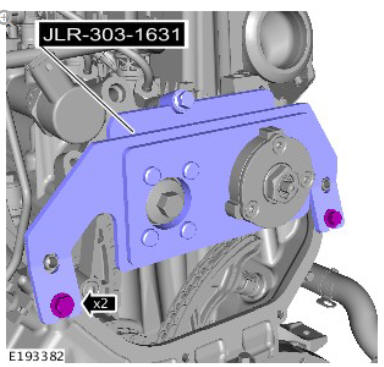

.jpg)

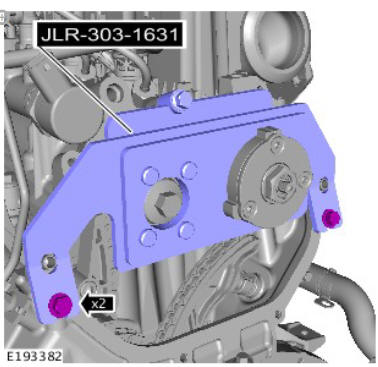

Special Tool(s): JLR-303-1631
.jpg)

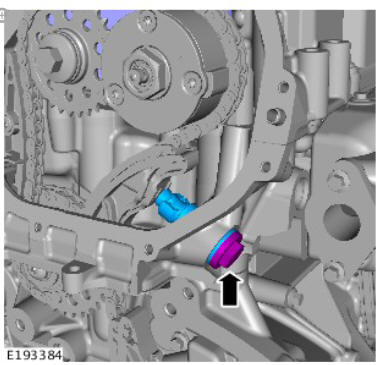

- Remove and retain the hydraulic timing chain tensioner for
installation.
.jpg)

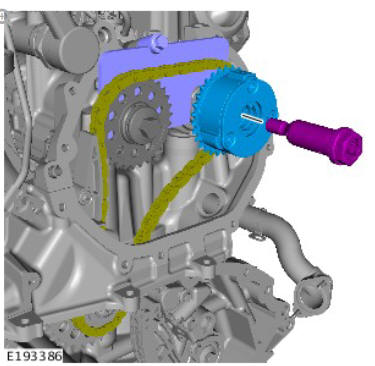

- Remove the Variable Valve Timing (VVT) unit.
.jpg)

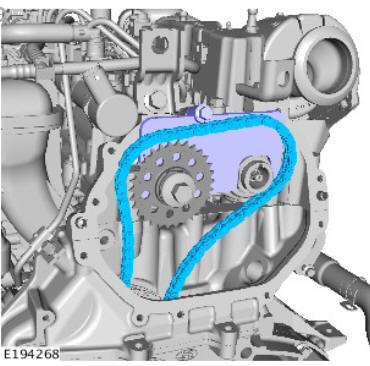

- Remove the fixed timing chain guide.
.jpg)

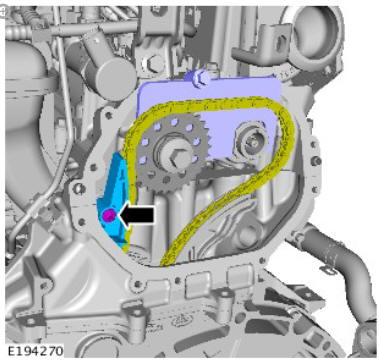

- Remove the timing chain tensioner lever arm.
.jpg)
