Land Rover Discovery: Before starting or driving
If the vehicle is involved in a collision, it should be checked by a Retailer/Authorised repairer, or suitably qualified personnel, before starting or driving.
Note: The vehicle has an SOS Emergency call button and a Breakdown call button.
AFTER DEPLOYMENT OF THE PEDESTRIAN PROTECTION SYSTEM
Do not attempt to open the bonnet if the pedestrian protection system has been deployed.
The vehicle must be stopped as soon as it is safe to do so.
The hazard warning lamps will be activated and can only be switched off by pressing the engine START/STOP button to switch the engine off and on again.
A warning message CHECK PEDESTRIAN SYSTEM will appear on the Message centre and the vehicle should be transported to the nearest Retailer/ Authorised Repairer. The vehicle must not be driven when the bonnet has been deployed.
Note: If the warning message CHECK PEDESTRIAN SYSTEM appears in the Message centre when the bonnet has not been deployed, the vehicle should be taken to the nearest Retailer/Authorised Repairer immediately. It can be driven.
If any significant damage occurs to the front bumper it should be inspected by a Retailer/Authorised Repairer as soon as possible.
REPACKING THE PEDESTRIAN AIRBAG
.gif)

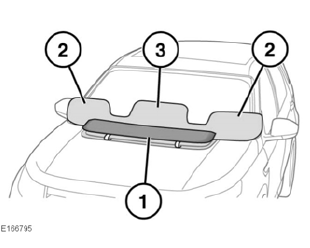

- Airbag cover.
- Airbag side panels inflated.
- Airbag centre panel inflated.
Repack the Pedestrian airbag, as follows:
Note: If the airbag is not fully deflated, fold and compress the airbag to release air, before starting to repack.
.gif)
.gif)

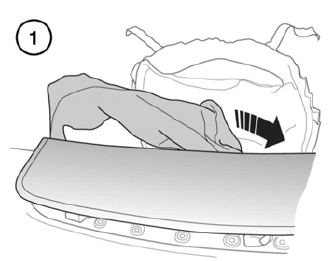

- Fold both of the airbag side panels across the vehicle, and underneath the airbag cover.
- Pull the airbag centre panel over the airbag cover.

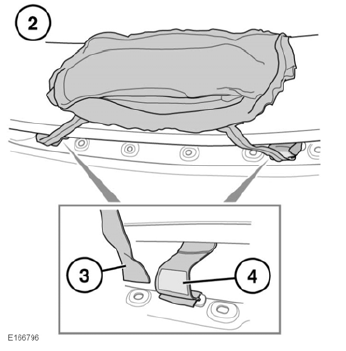

- On each side, pull the airbag centre panel as tight as possible. Using the velcro panels, attach the straps on the centre airbag panel (3) to the airbag cover straps (4).
Following repacking, if safe to do so, the vehicle should be driven with caution to a Dealer/Authorised Repairer to be checked for damage and for the replacement of the Pedestrian airbag.
