Land Rover Discovery: Warning Devices - Blind Spot Monitoring Control Module (G1817887) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Warning Devices / Warning Devices - Blind Spot Monitoring Control Module (G1817887) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Left illustration shown, Right is similar.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

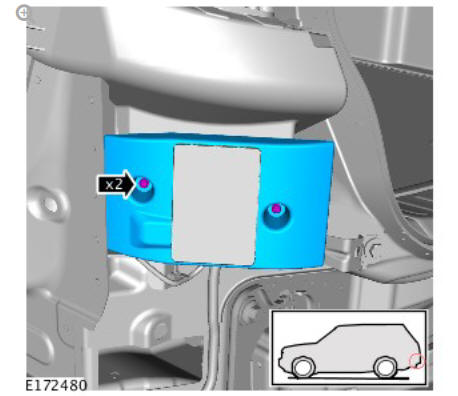

Warning Devices Blind Spot Monitoring Control Module (G1817887) Removal and Installation

Torque: 1.9 Nm

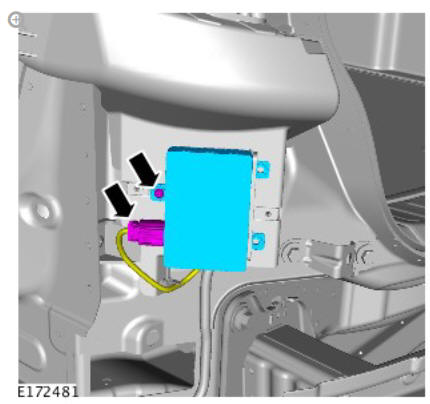

Warning Devices Blind Spot Monitoring Control Module (G1817887) Removal and Installation

Torque: 1.9 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure both the left and right side Blindspot Monitoring Sensors using Land Rover approved diagnostic equipment.

Warning devices general proximity sensor module (G1817890) removal and installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.

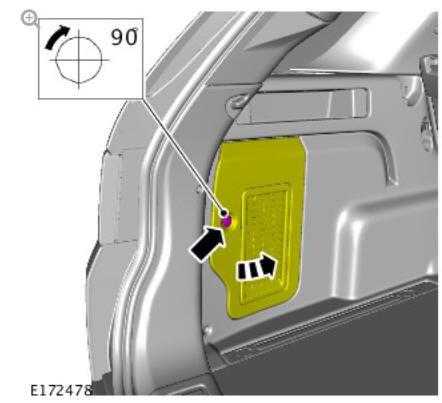

Warning devices general proximity sensor module (G1817890) removal and installation

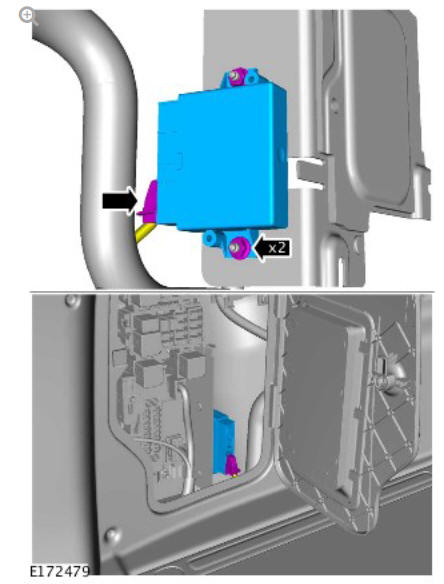

Warning devices general proximity sensor module (G1817890) removal and installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
