REMOVAL

CAUTIONS:

  • Protect the surrounding components.
  • Use a suitable trim tool.
  • Take extra care when removing the component, prevent damage to the mating faces.

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

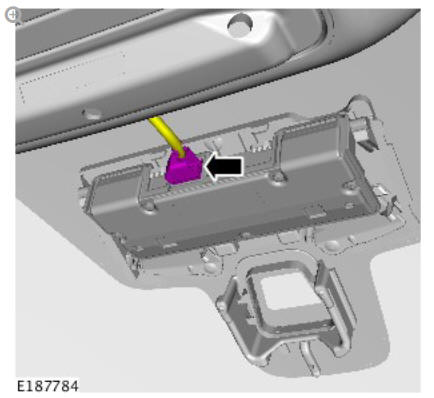

Warning Devices Image Processing Control Module (G1881161) Removal and Installation

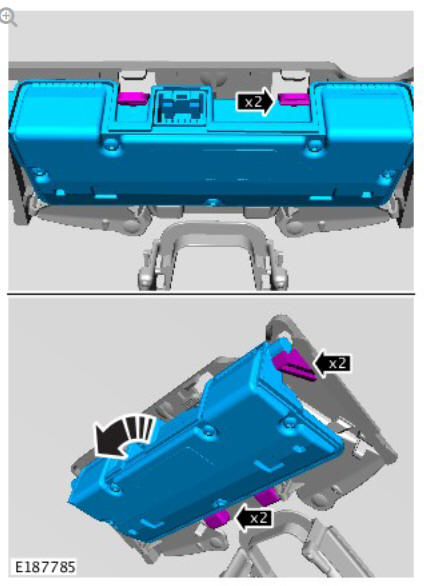

Warning Devices Image Processing Control Module (G1881161) Removal and Installation

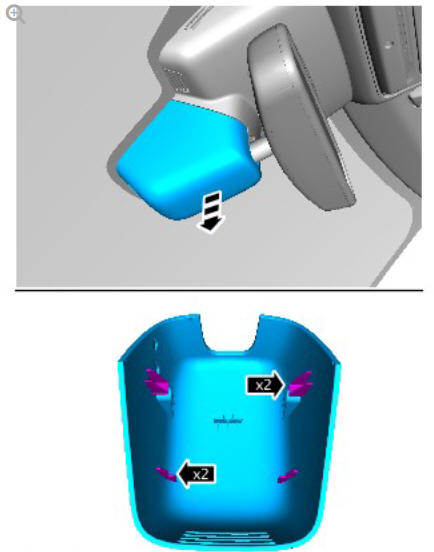

Warning Devices Image Processing Control Module (G1881161) Removal and Installation

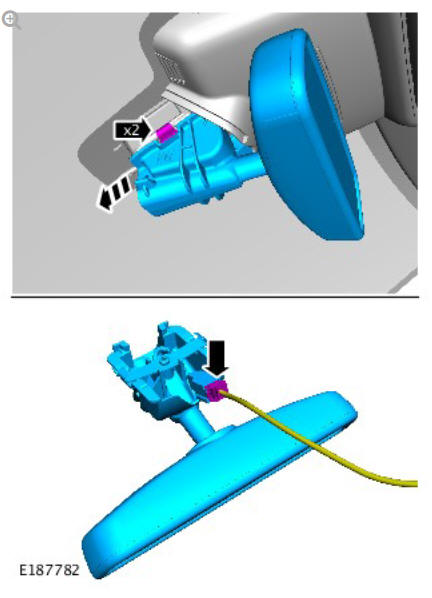

Warning Devices Image Processing Control Module (G1881161) Removal and Installation

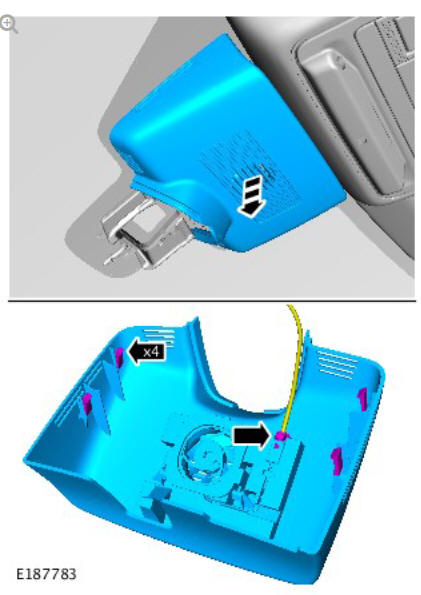

Warning Devices Image Processing Control Module (G1881161) Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new Image Processing Control Module (IPCM) is installed, configure using the approved Land Rover diagnostic equipment.

    Reference SRO : 88.90.40 Configure Image Processing Control Module (IPCM).

Warning devices service indicator reset (G1702687) general procedures

SYNCHRONIZATION

NOTE:

Make sure the Land Rover approved diagnostic equipment is not connected to the vehicle.

  1. Set the ignition to the ON position.
  2. Open the hood.
  3. Open the drivers door.

NOTE:

A service resetting message will appear on the instrument cluster

Fully depress both the accelerator and brake pedals and hold for 60 seconds.

Set the ignition to the OFF position.

Set the ignition to the ON position and check the message has been cleared.

If the message remains, repeat the process.
