Removal

WARNING:

Be prepared to collect escaping fuel.

NOTES:

  • Some illustrations may show the engine removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Diesel Fuel System Health and Safety Precautions (100-00 General Information, Description and Operation).

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

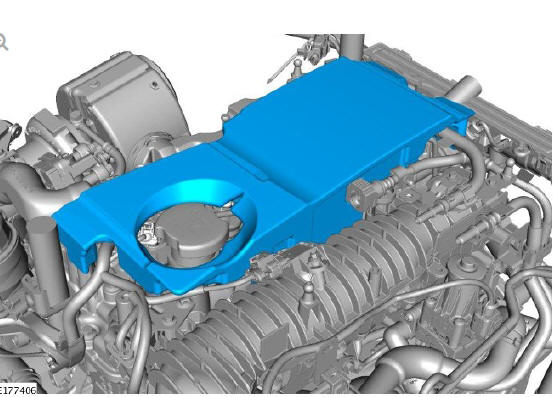

Remove the noise, vibration and harshness (NVH) material

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

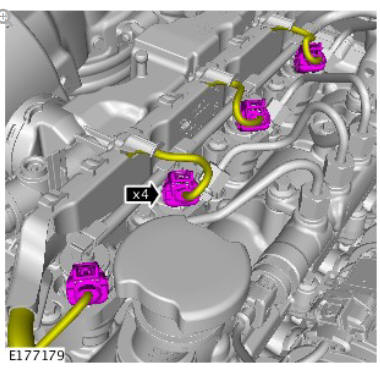

Disconnect the fuel injector electrical connectors

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

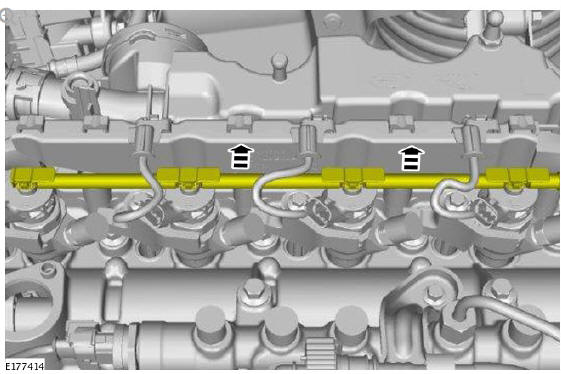

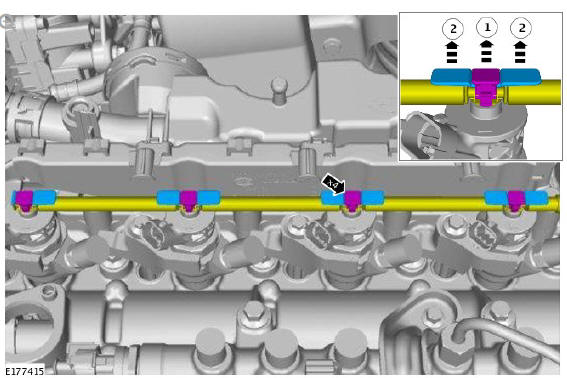

Release the fuel injector fuel return line from the fuel injectors.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

Position the fuel injector fuel return line to one side.

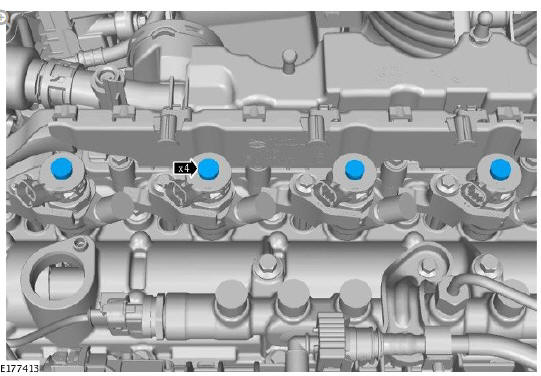

NOTE:

Install the blanking caps.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

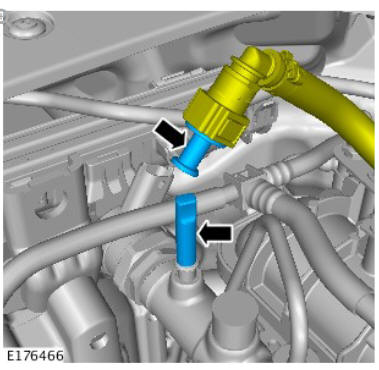

Disconnect the fuel rail fuel supply line.

NOTE:

Install the blanking caps.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

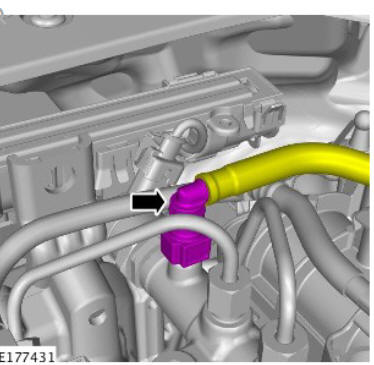

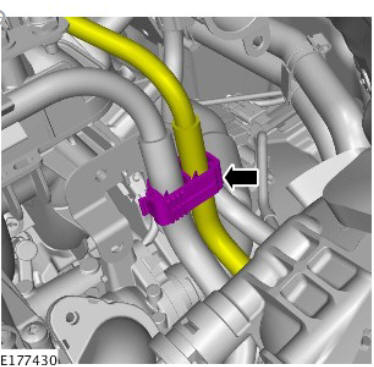

Disconnect the fuel line retaining clip and detach the fuel return line.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

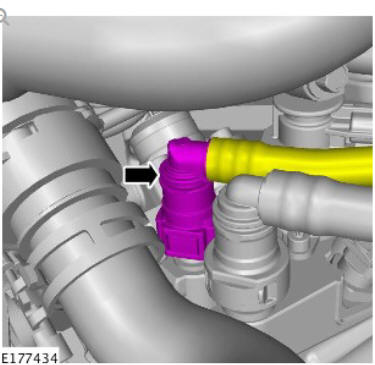

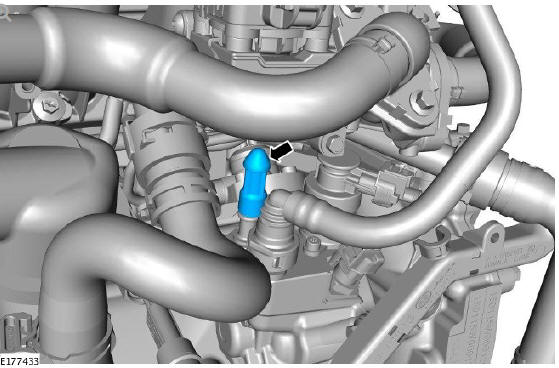

Disconnect the fuel pump fuel return line.

NOTE:

Install the blanking cap.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962) / Removal

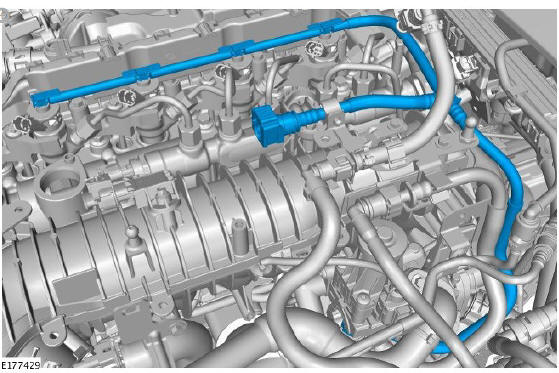

Remove the fuel injector fuel return line.
