Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

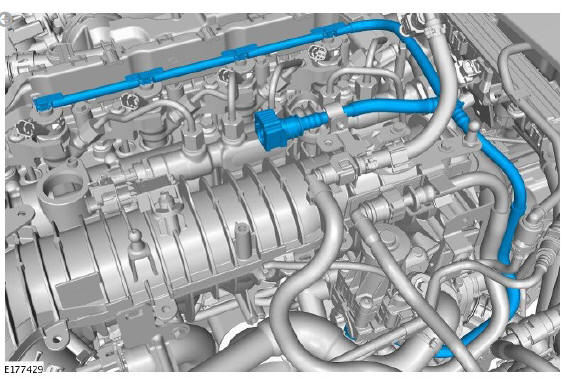

Install the fuel injector fuel return line.

NOTE:

Remove and discard the blanking cap.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

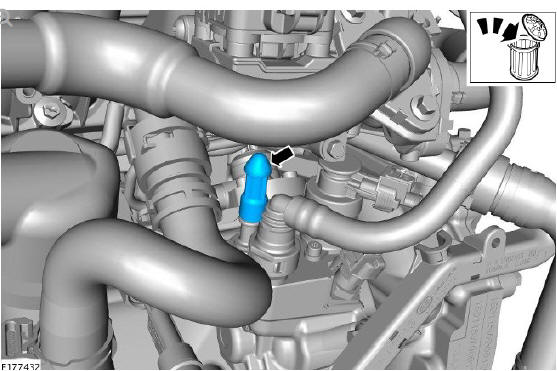

Connect the fuel pump fuel return line.

NOTE:

Remove and discard the blanking caps.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

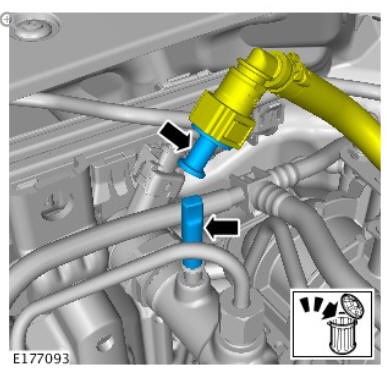

Connect the fuel rail fuel supply line.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

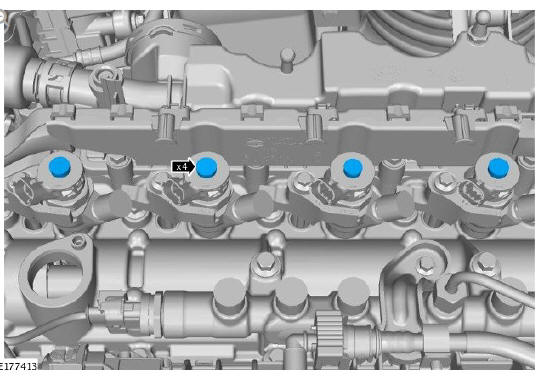

Attach the fuel return line and connect the fuel line retaining clip.

NOTE:

Remove and discard the blanking caps.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

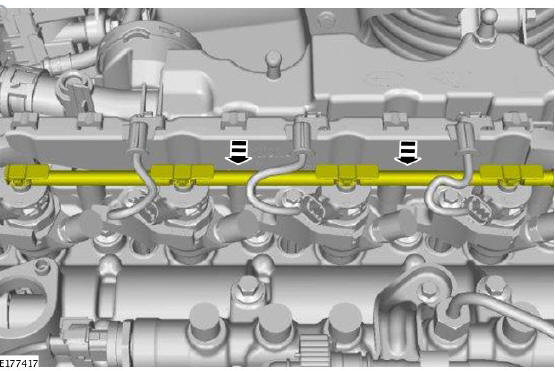

Position the fuel injector fuel return line to the fuel injectors.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

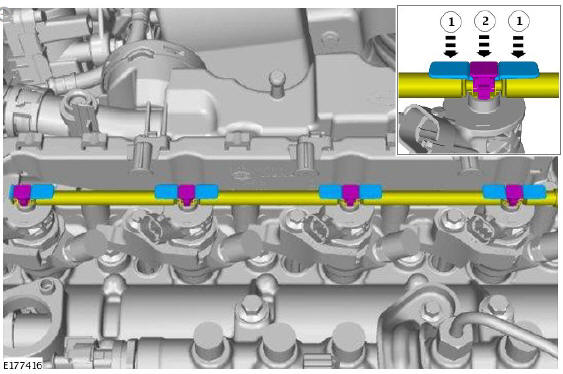

Connect the fuel injector fuel return line to the fuel injectors.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

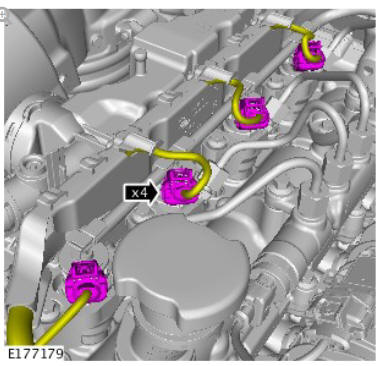

Connect the fuel injector electrical connectors.

Fuel Charging and Controls - Ingenium i4 2.0l Diesel Fuel Injector Fuel Return Line (G1875962)/ Installation

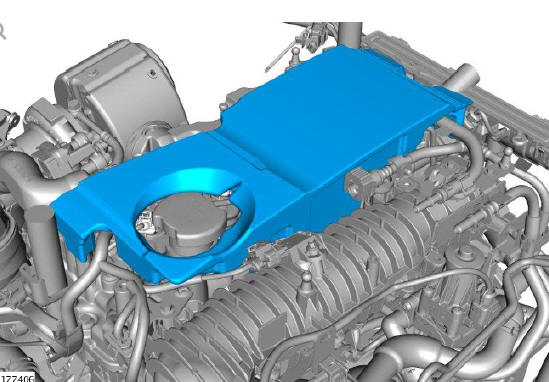

Install the NVH material.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
