Land Rover Discovery: Climate Control Air Conditioning Compressor - Ingenium I4 2.0l Diesel (G1885406)/ Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Climate Control System / Climate Control Air Conditioning Compressor - Ingenium I4 2.0l Diesel (G1885406)/ Removal and Installation

REMOVAL

  1. Disconnect the battery ground cable.

    Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Air Conditioning System Recovery, Evacuation and Charging - INGENIUM I4 2.0L Diesel (412-00 Climate Control System - General Information, General Procedures).

Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

Refer to: Accessory Drive Belt (303-05B Accessory Drive - INGENIUM I4 2.0L Diesel, Removal and Installation).

CAUTIONS:

  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
  • Lubricate the new seals with clean refrigerant oil.

NOTE:

Install new O-ring seals.

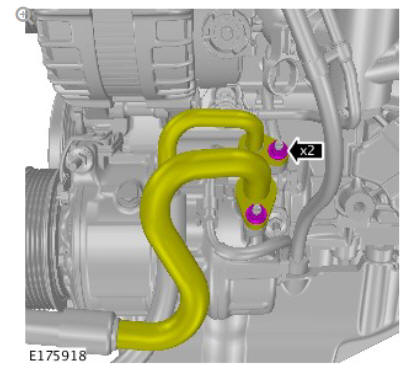

Climate control air conditioning compressor - Ingenium I4 2.0l diesel (G1885406) removal and installation

Torque: 25 Nm

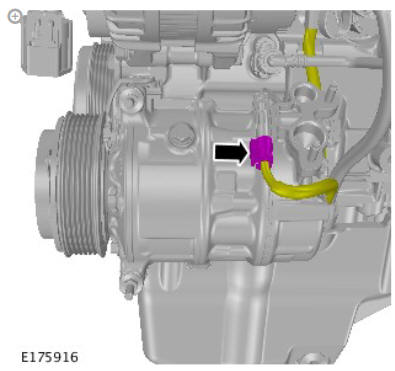

Climate control air conditioning compressor - Ingenium I4 2.0l diesel (G1885406) removal and installation

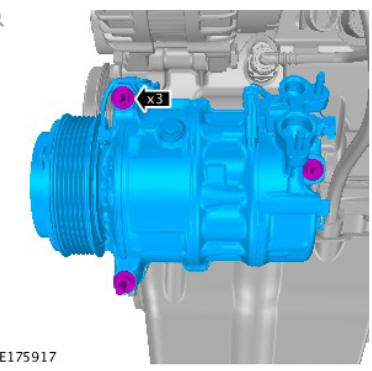

Climate control air conditioning compressor - Ingenium I4 2.0l diesel (G1885406) removal and installation

Torque: 25 Nm

INSTALLATION

  1. To install reverse the removal procedure.

Climate control air conditioning pressure transducer (G1815596) removal and installation

REMOVAL

WARNING:

Wear safety goggles and protective gloves.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

CAUTIONS:

  • Extreme cleanliness must be exercised when handling these components.
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

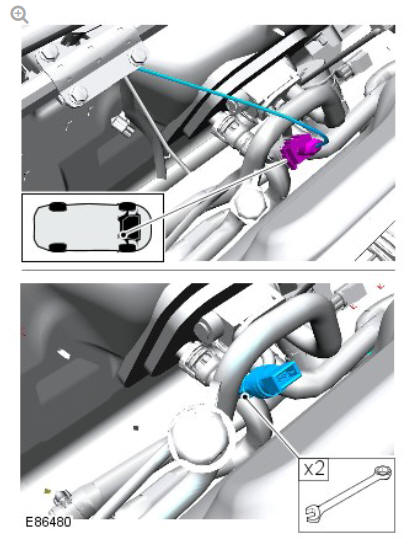

Climate control air conditioning pressure transducer (G1815596) removal and installation

Torque: 8 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
