Land Rover Discovery: Battery (G1774714) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • If a new battery is installed, the battery monitoring system (BMS) must be reset using Land Rover approved diagnostic equipment

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

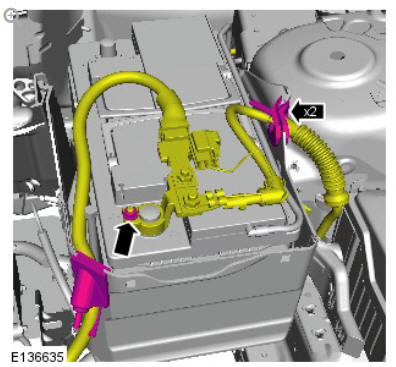

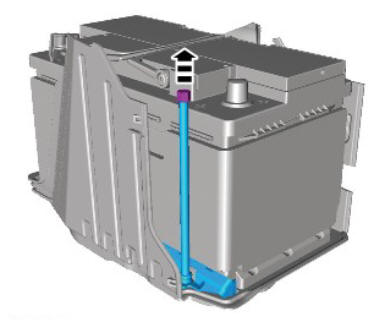

Battery (G1774714) removal and installation

Battery (G1774714) removal and installation

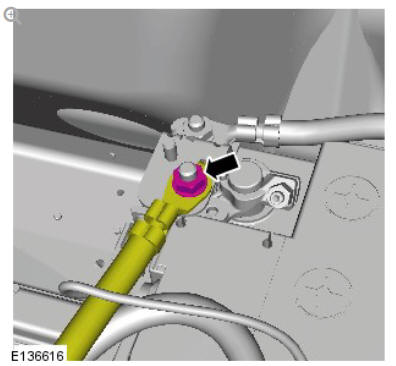

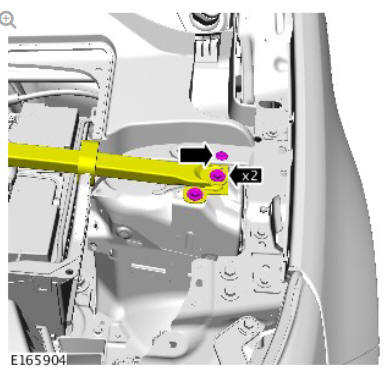

Battery (G1774714) removal and installation

Torque: 25 Nm

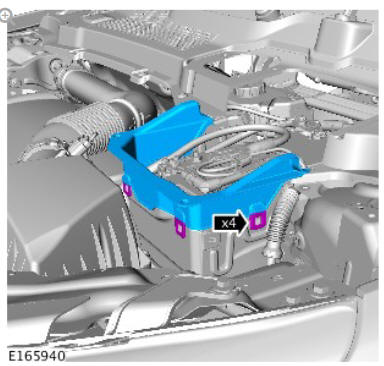

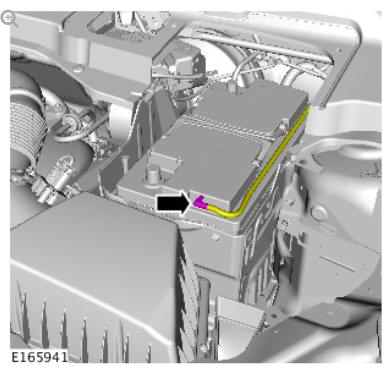

Battery (G1774714) removal and installation

Torque: 25 Nm

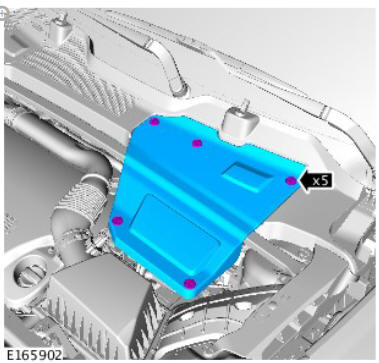

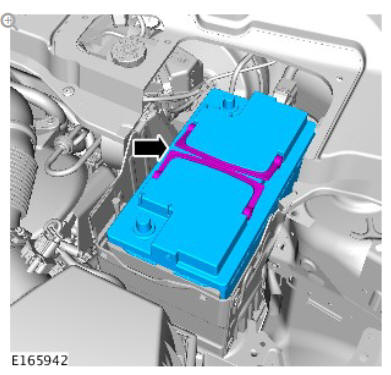

Battery (G1774714) removal and installation

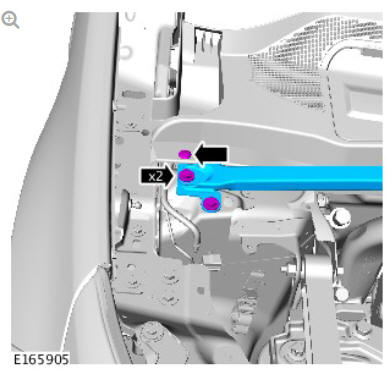

Battery (G1774714) removal and installation

Torque: 6 Nm

NOTE:

If equipped.

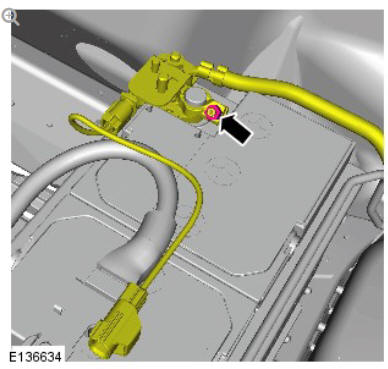

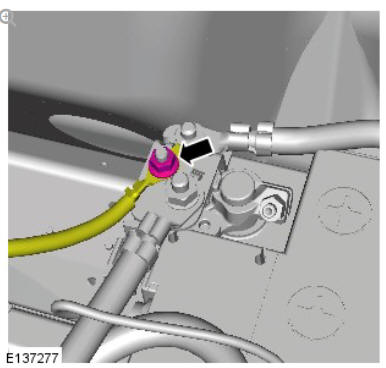

Battery (G1774714) removal and installation

Torque: 10 Nm

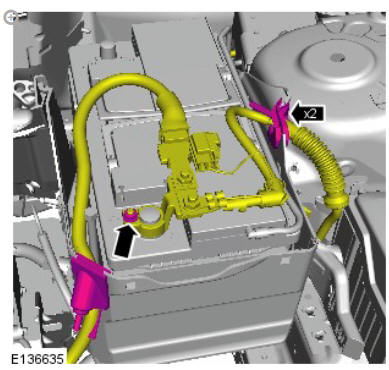

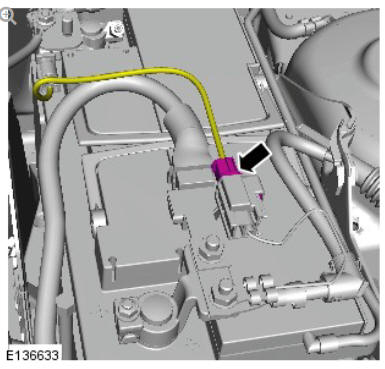

Battery (G1774714) removal and installation

CAUTION:

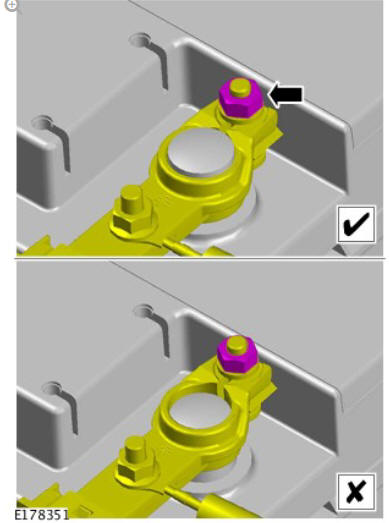

Ensure the clamping lug on the BMS is below the top of the negative terminal post as shown.

Battery (G1774714) removal and installation

Battery (G1774714) removal and installation

Torque: 6 Nm

Battery (G1774714) removal and installation

Torque: 6 Nm

Battery (G1774714) removal and installation

Torque: 6 Nm

Battery (G1774714) removal and installation

Battery (G1774714) removal and installation

Battery (G1774714) removal and installation

INSTALLATION

CAUTION:

Make sure the battery monitoring system (BMS) electrical connector is connected to the module, before installing the BMS on to the battery terminal.

To install, reverse the removal procedure.

NOTE:

This step is only necessary when installing a new battery.

Using Land Rover approved diagnostic equipment, reset the battery monitoring system (BMS).
