Land Rover Discovery: Auxiliary Battery (G1913471) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Electrical / Battery and Charging System / Auxiliary Battery (G1913471) /
Removal and
Installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
Disconnect the battery earth lead.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

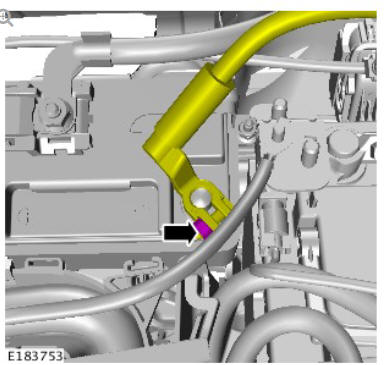

.jpg)
Torque: 10 Nm

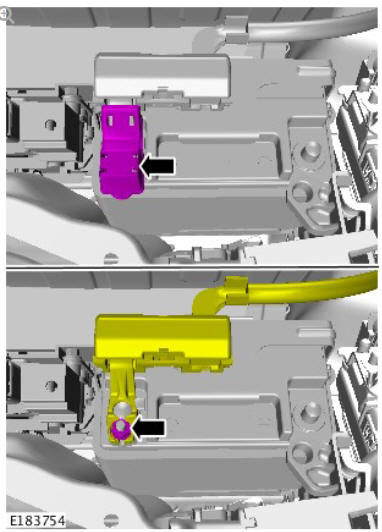

.jpg)
Torque: 10 Nm

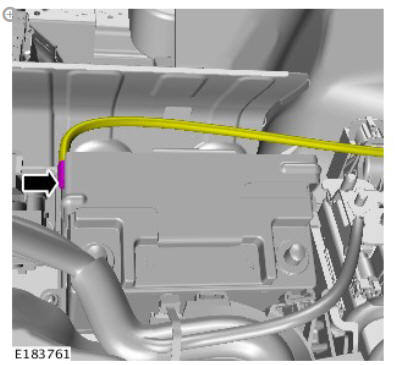

.jpg)
Torque: 18 Nm

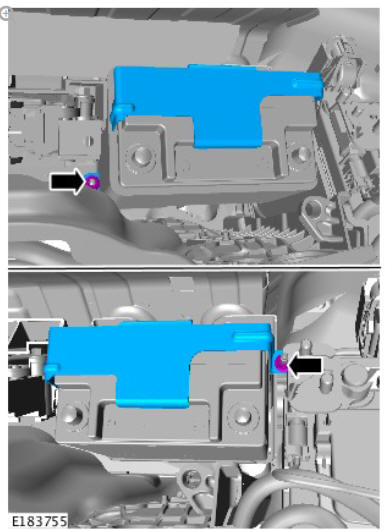

.jpg)

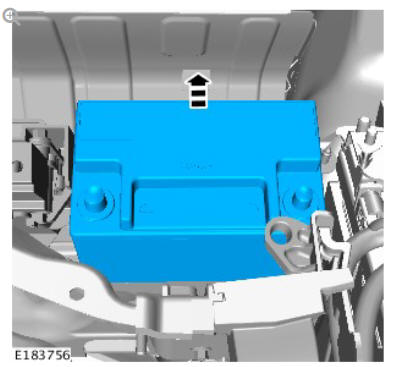

.jpg)
INSTALLATION
To install reverse the removal procedure.
