Land Rover Discovery: Rear Drive Axle- Differential - Vehicles with- Active Driveline Rear Drive Unit Actuator (G1781295)/ Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle- Differential - Vehicles with- Active Driveline Rear Drive Unit Actuator (G1781295)/ Removal and Installation

PART(S)

PART(S)

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

NOTE:

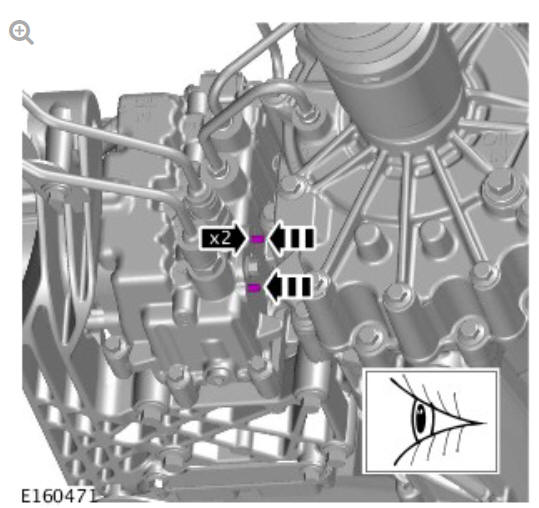

Before disconnecting any components of the active driveline hydraulic system, the two pipe port closing valve must be closed manually as illustrated.

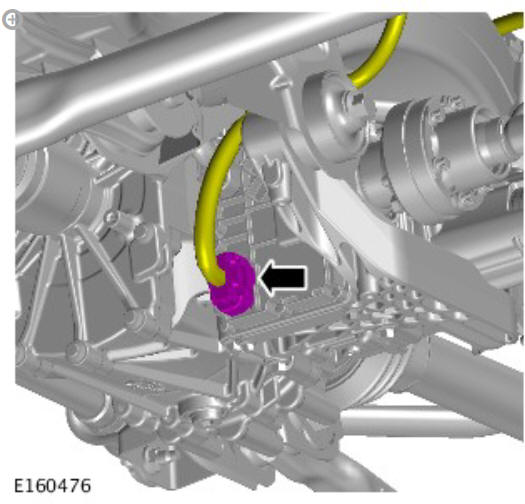

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

CAUTION:

Be prepared to collect escaping fluids.

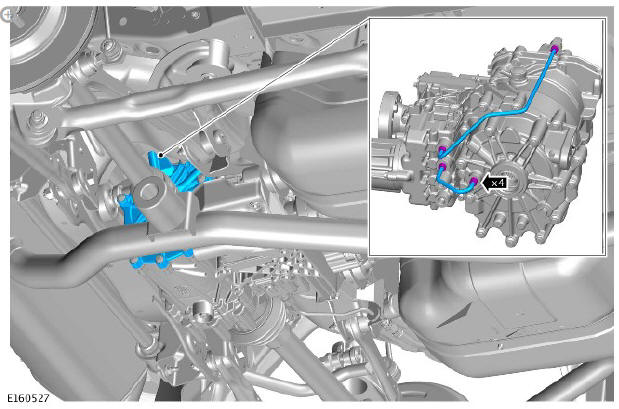

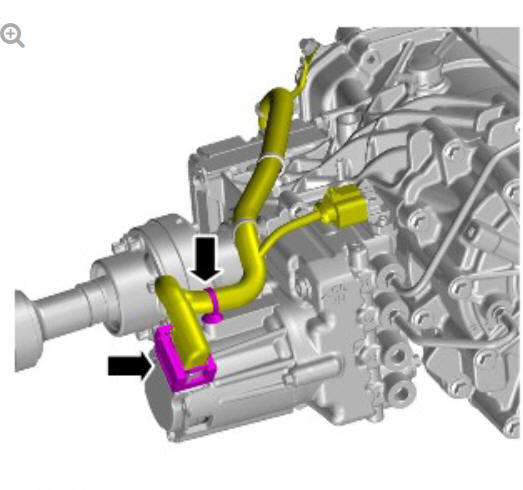

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Torque: 16 Nm

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Torque: 10 Nm

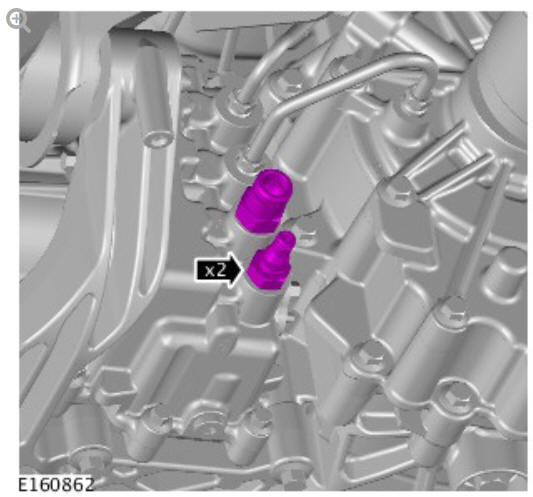

CAUTIONS:

  • Be prepared to collect escaping fluids.
  • Make sure that all openings are sealed. Use new blanking caps.

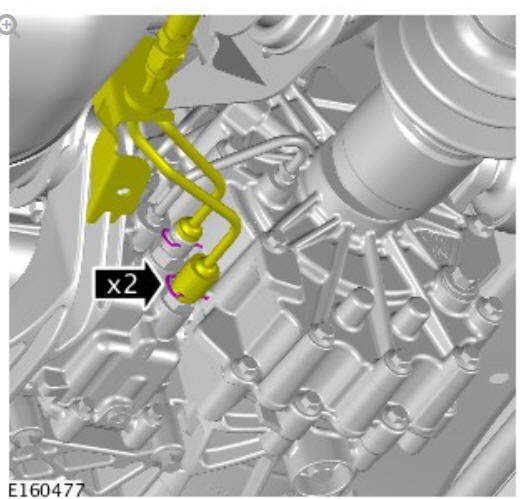

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

CAUTION:

Make sure that all openings are sealed. Use new blanking caps.

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Torque: 17 Nm

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Torque: 10 Nm

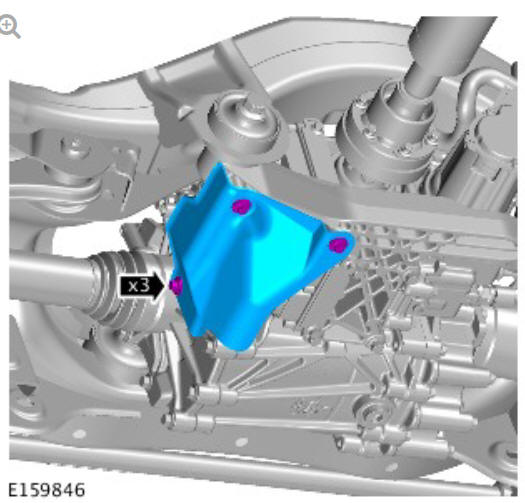

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

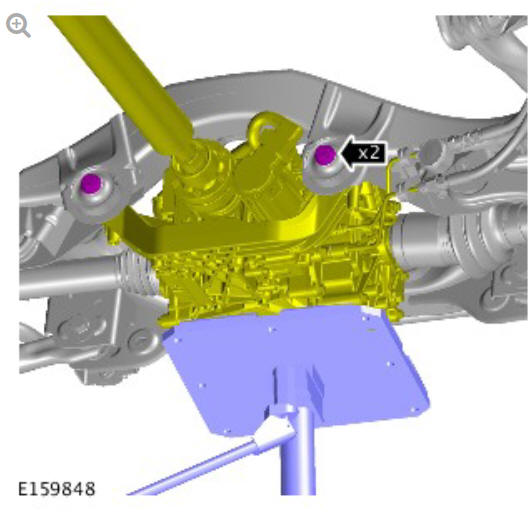

NOTE:

Using a suitable transmission jack support the differential case.

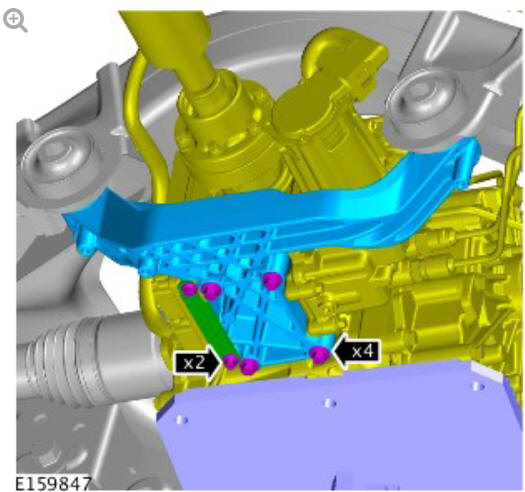

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Torque: 175 Nm

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

CAUTIONS:

  • Be prepared to collect escaping fluids.
  • Make sure that all openings are sealed. Use new blanking caps.

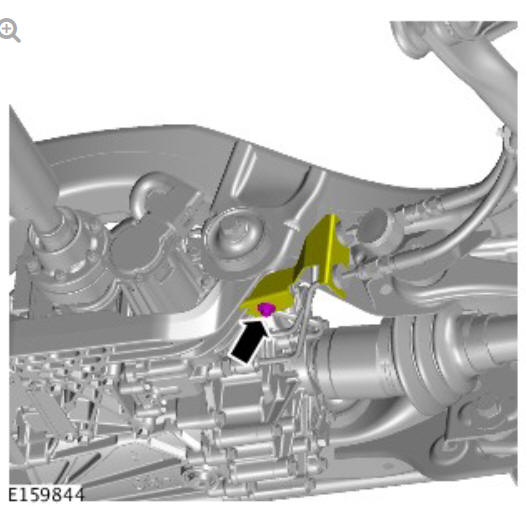

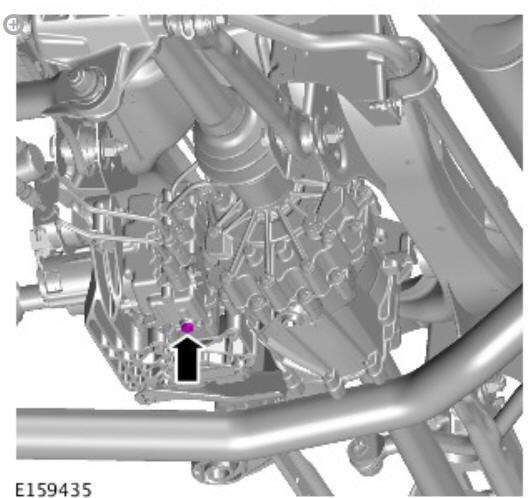

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Torque: 12 Nm

CAUTION:

Be prepared to collect escaping fluids.

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

Torque: 10 Nm

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel,

Removal and Installation).

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

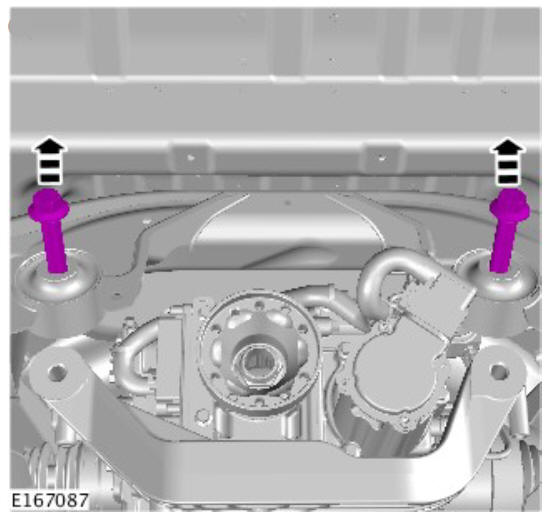

CAUTION:

Discard the bolts.

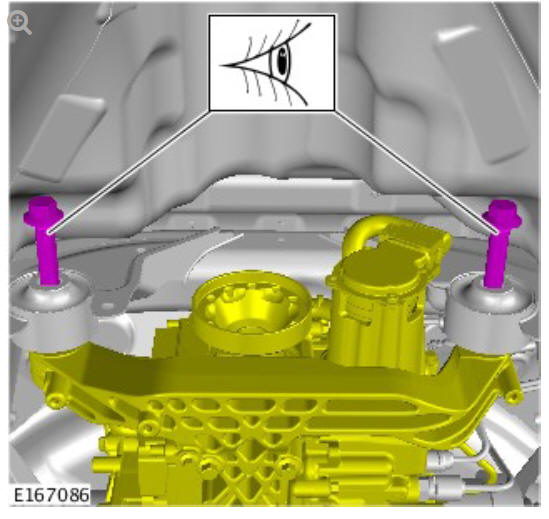

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

INSTALLATION

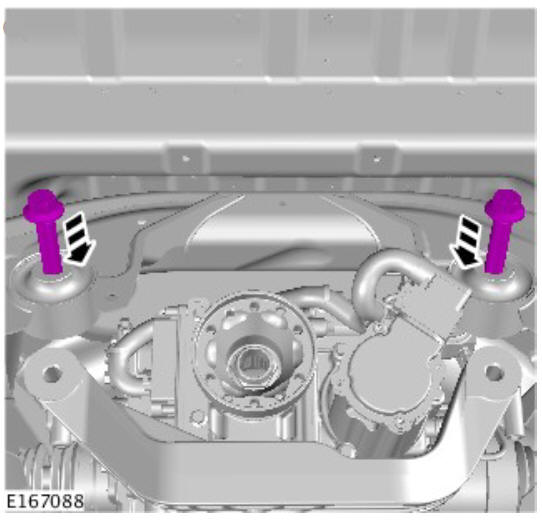

CAUTION:

Make sure new bolts are installed.

NOTE:

Do not tighten at this stage.

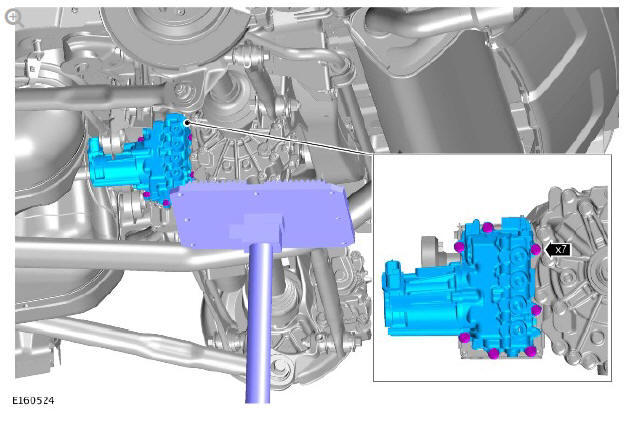

Rear drive axle_differential - vehicles with- active driveline rear drive unit actuator (G1781295) removal and installation

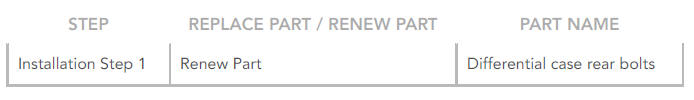

Renew Part: Differential case rear bolts.

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

NOTE:

Remove and discard all blanking caps.

To install, reverse the removal procedure.

Refer to: Hydraulic System Draining, Filling and Bleeding (205-02B Rear Drive Axle/Differential - Vehicles With: Active Driveline, General Procedures).

Refer to: Differential Draining and Filling (205-02B Rear Drive Axle/Differential - Vehicles With: Active Driveline, General Procedures).
