Land Rover Discovery: Rear Drive Axle - Differential - Vehicles with- Active Driveline Rear Halfshaft Seal (G1781302) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles with- Active Driveline Rear Halfshaft Seal (G1781302) / Removal and Installation

SPECIAL TOOL(S)

SPECIAL TOOL(S)

PART(S)

PART(S)

PART(S)

REMOVAL

NOTES:

  • Left-hand shown, right-hand similar.
  • Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Rear Left Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

CAUTIONS:

  • Discard the seal.
  • Take extra care not to damage the mating faces.
  • Take extra care not to damage the edges of the component.

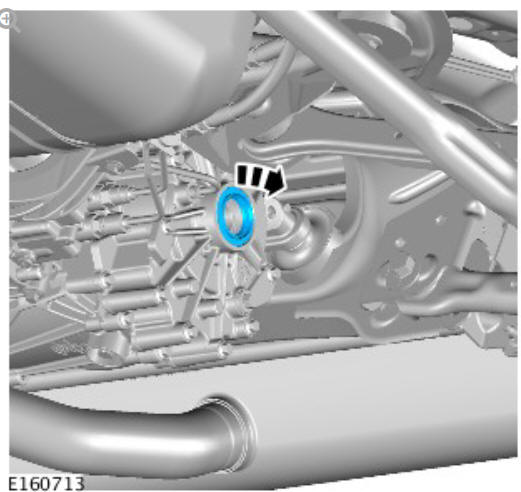

Rear drive axle_differential - Vehicles with- Active driveline rear halfshaft seal (G1781302) Removal and installation

INSTALLATION

CAUTIONS:

  • A new O-ring seal is to be installed.
  • Make sure that the seal is correctly located.
  • Take extra care not to damage the seal.

Rear drive axle_differential - Vehicles with- Active driveline rear halfshaft seal (G1781302) Removal and installation

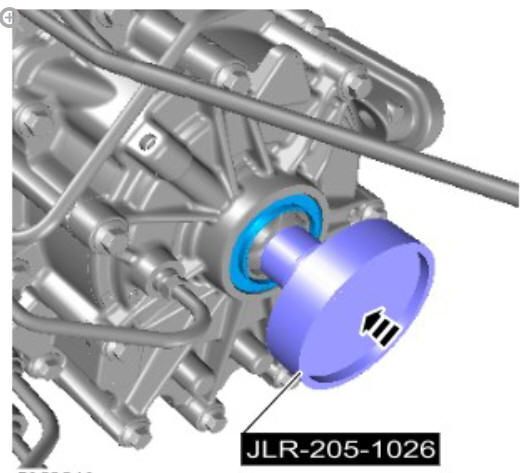

Tap in the seal until the head of the drift is against the rear differential housing.

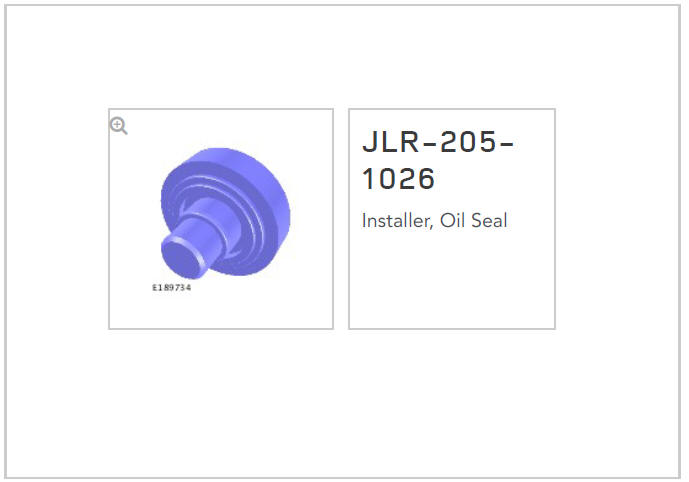

Special Tool(s): JLR-205-1026

Renew Part: Halfshaft seal.

Refer to: Rear Left Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

Rear drive axle_differential - Vehicles with- Active driveline description and operation

On vehicles fitted with an active driveline, the rear differential is included in the Description and Operation of the Four-Wheel Drive System.

For additional information, refer to: Four-Wheel Drive Systems (308-07A Four-Wheel Drive Systems - Vehicles With: Active Driveline, Description and Operation).

Rear drive axle_differential - Vehicles with- Active driveline diagnosis and testing

PRINCIPLES OF OPERATION

For a detailed description of the Active Driveline system, refer to the relevant Description and Operation section in the workshop manual. REFER to: Rear Drive Axle and Differential (205-02B Rear Drive Axle/Differential - Vehicles With: Active Driveline, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION:

Diagnosis by substitution from a donor vehicle is NOT acceptable.

Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  • If a control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty Policy and Procedures manual, or determine if any prior approval programme is in operation, prior to the installation of a new module/component.
  • When performing voltage or resistance tests, always use a digital multimeter accurate to three decimal places, and with an up-todate calibration certificate. When testing resistance always take the resistance of the digital multimeter leads into account.
  • Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity

Visual Inspection

Visual Inspection

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check DDW for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and carry out the recommendations as required

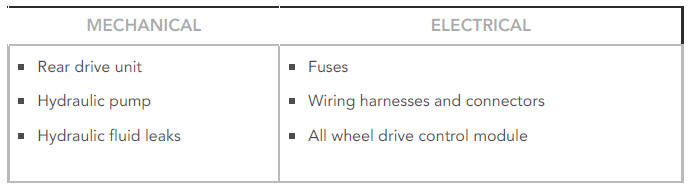

SYMPTOM CHART

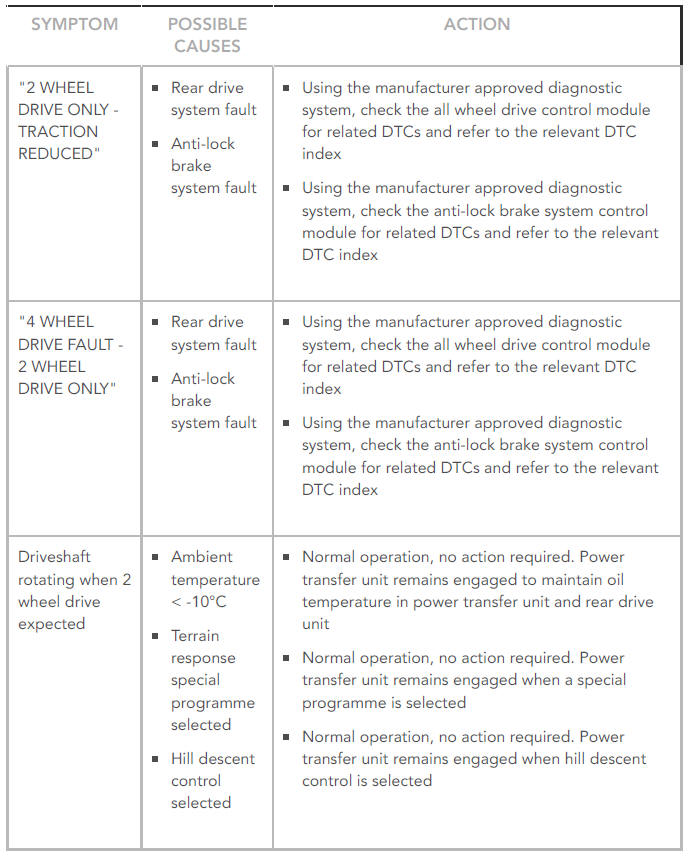

SYMPTOM CHART

DTC INDEX

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: Diagnostic Trouble Code Index - DTC: All Wheel Drive Control Module (AWDCM) (100-00 General Information, Description and Operation).

Rear drive axle_differential - Vehicles with - Active driveline specifications

General Specification

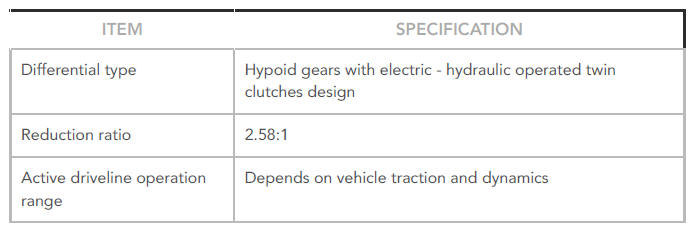

General Specification

Lubricant

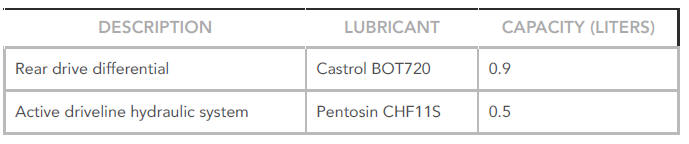

Lubricant

Torque Specifications

Torque Specifications

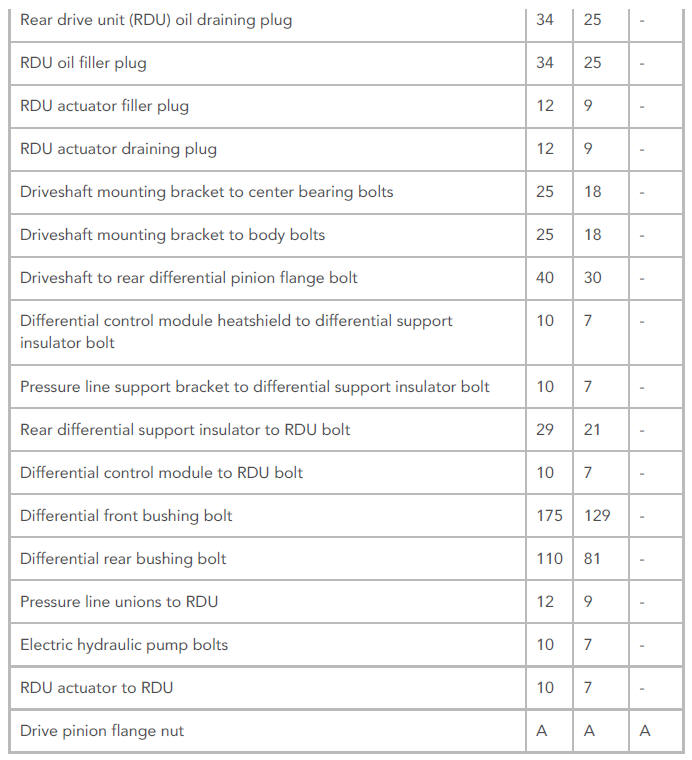

Torque Specifications

A = refer to procedure for correct tightening sequence
