Luggage compartment fuse box

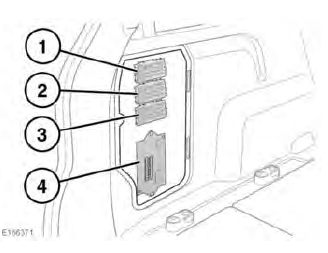

  1. Fuse box 1
  2. Fuse box 2
  3. Fuse box 3
  4. Fuse box 4

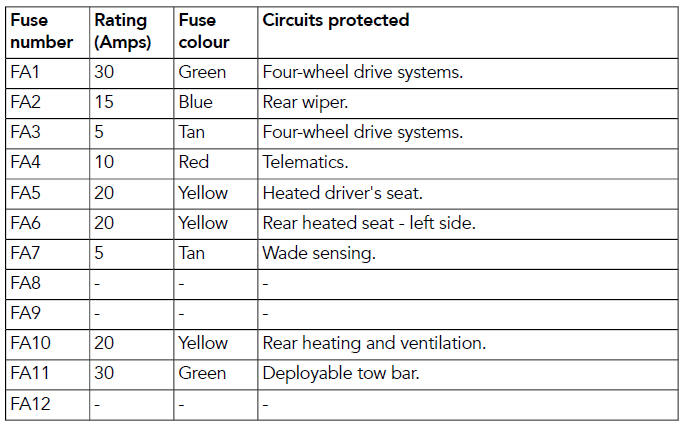

Fuse box 1

Fuse box 1

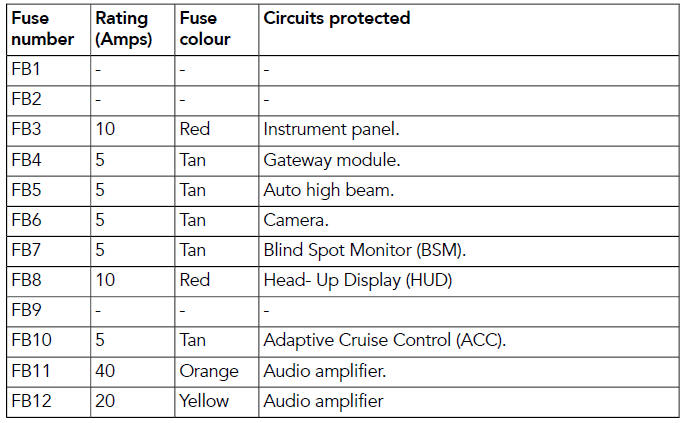

Fuse box 2

Fuse box 2

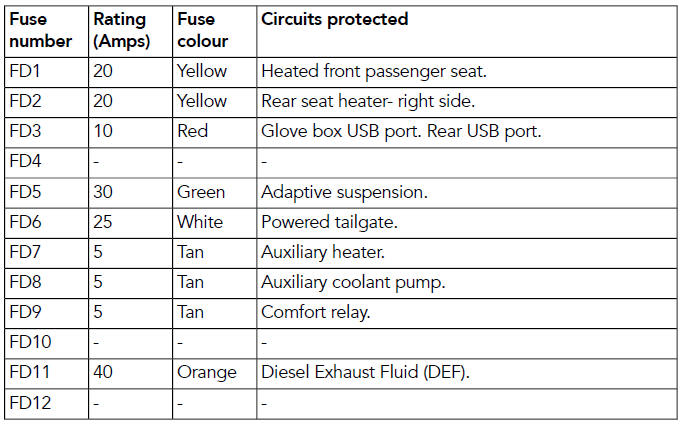

Fuse box 3

Fuse box 3

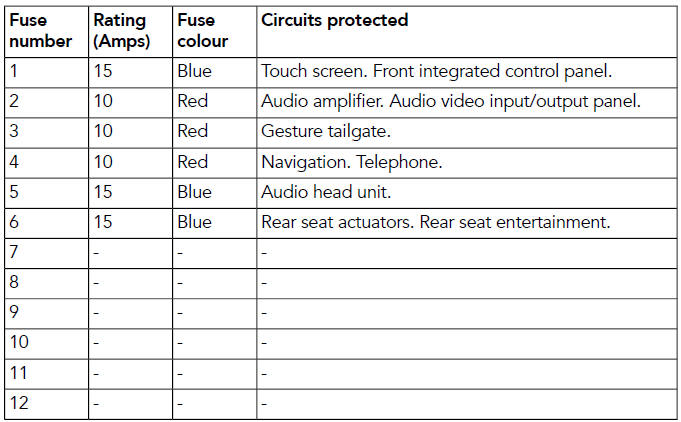

Fuse box 4

Fuse box 4

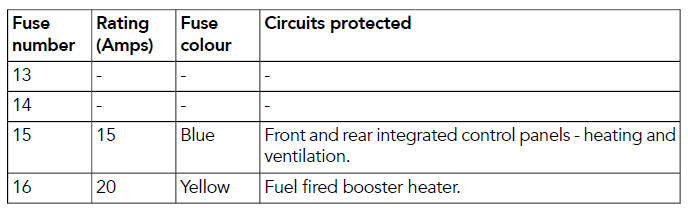

Fuse box 4
