Land Rover Discovery: Wheels and Tires - Tire Pressure Monitoring System Receiver (G1780281) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Suspension / Wheels and Tires - Tire Pressure Monitoring System Receiver (G1780281) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details
  1. Refer to: Overhead Console (501-12 Instrument Panel and Console, Removal and Installation).
  2. Refer to: 'A' Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

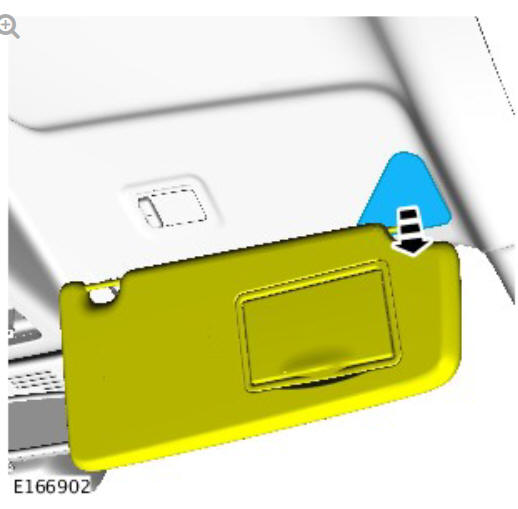

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

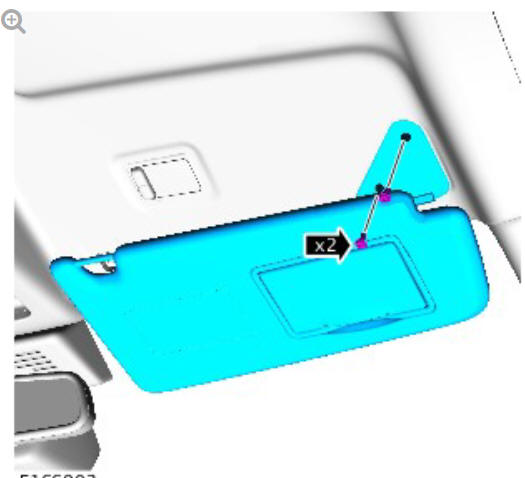

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

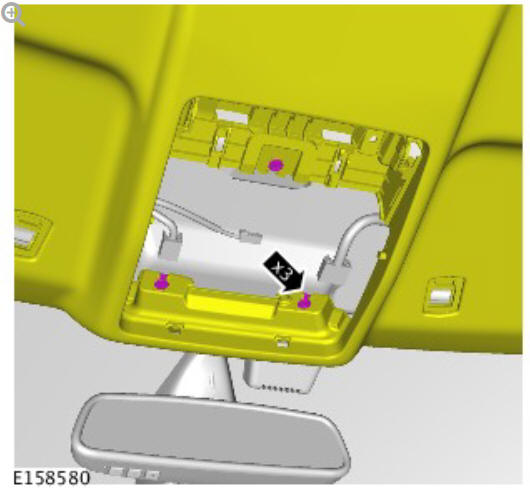

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

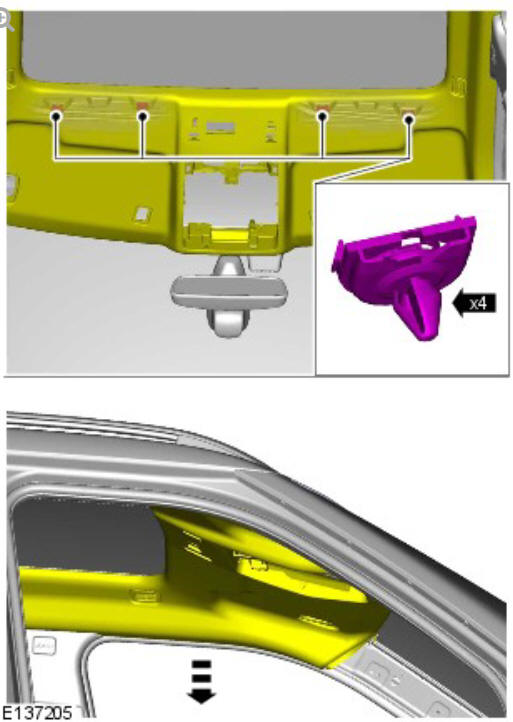

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

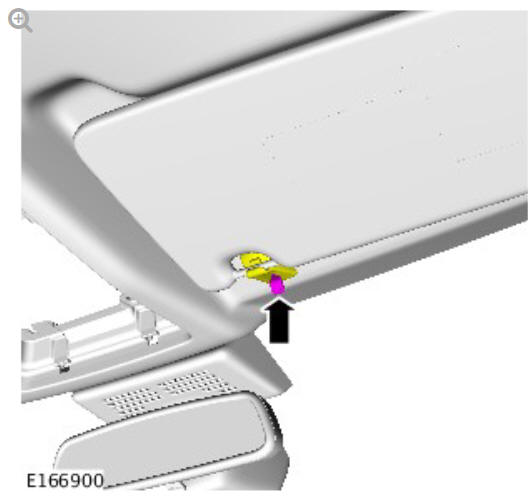

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

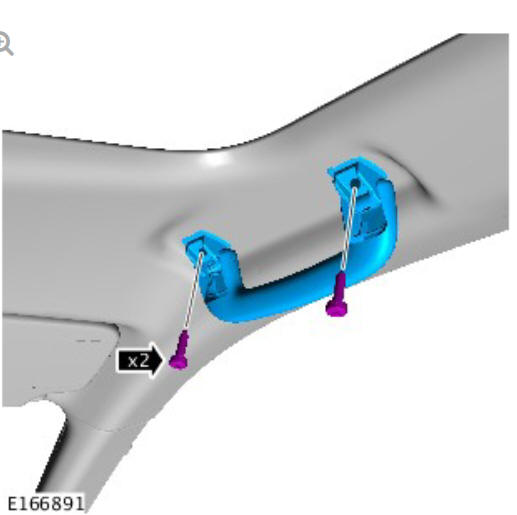

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

Repeat steps 2 to 8 on the other side of the vehicle.

CAUTION:

Take extra care not to damage the component.

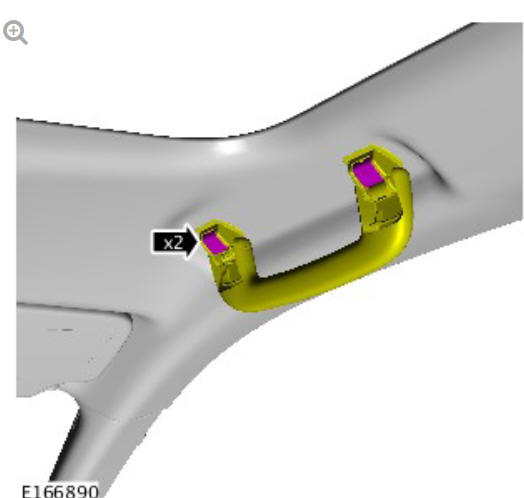

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

CAUTION:

Take extra care not to damage the component.

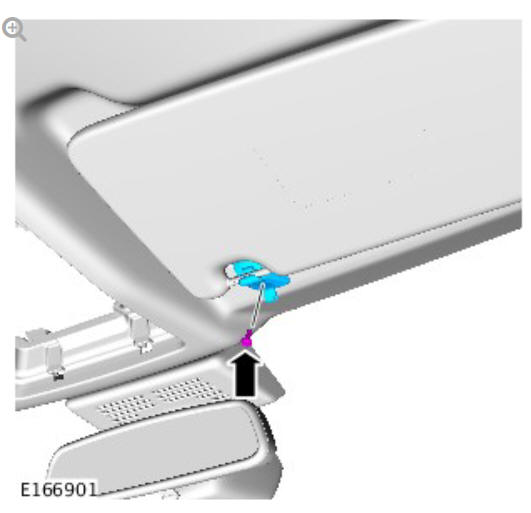

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

Wheels and tires - tire pressure monitoring system receiver (G1780281) Removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
