Land Rover Discovery: Wheels and Tires - Tire Pressure Sensor (G2160695) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Suspension / Wheels and Tires - Tire Pressure Sensor (G2160695) / Removal and Installation

REMOVAL

CAUTIONS:

  • Take extra care not to damage the sensor during the removal and refitting of the tire.
  • If a new sensor is installed, make sure that the sensor type and frequency is the same as the sensor that has been removed. Failure to follow this instruction may result in the system malfunction.

NOTES:

  • If the sensor is replaced on a 'running' wheel, the new sensor identification will be learnt when the vehicle is first driven. Note the sensor will only be learnt if the vehicle is driven for a minimum of 8 minutes at a speed exceeding 15kph. If a new sensor is installed to the spare wheel, the identification for that sensor must be programmed into the Tire Pressure Monitoring System (TPMS) module using Land Rover approved diagnostic equipment. The identification code is printed on the casing of each sensor. To avoid null or under inflated pressure readings for the spare tire the spare tire should be inflated in close proximity to the vehicle, and to the maximum pressure as stated on the placard label for the specific tire size.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Remove the wheel.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

Wheels and tires - tire pressure sensor (G2160695) Removal and installation

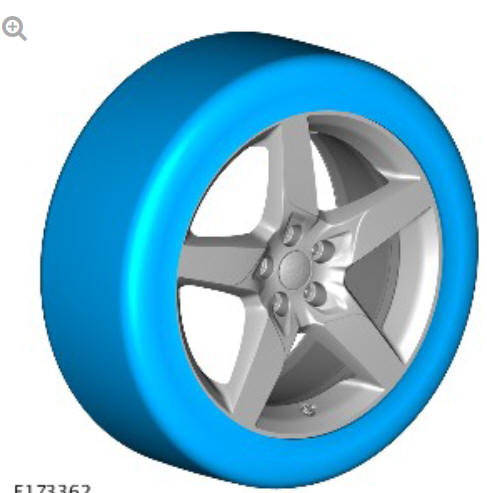

Remove the tire from the wheel, release the tire bead from the rim 180 degrees from the valve.

Wheels and tires - tire pressure sensor (G2160695) Removal and installation

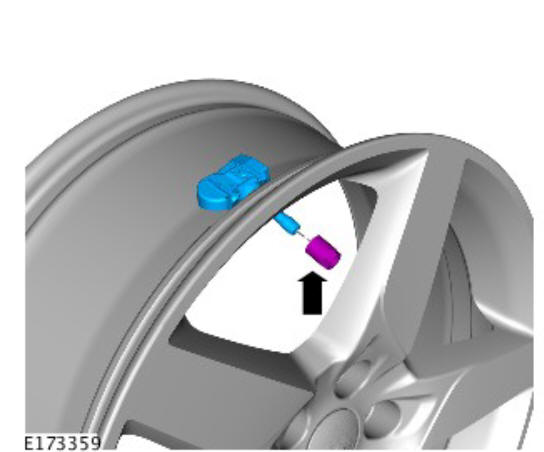

  1. Remove the valve cap.
  2. Remove the TPMS sensor

Wheels and tires - tire pressure sensor (G2160695) Removal and installation

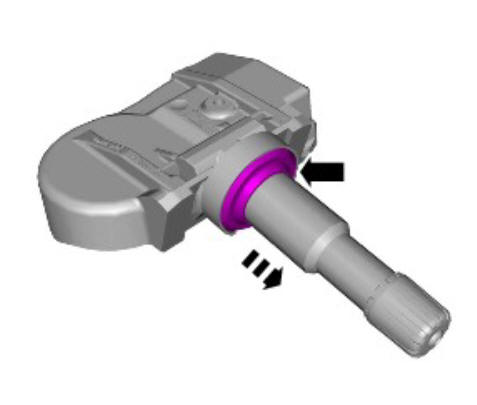

Remove and discard the TPMS sensor washer and seal.

INSTALLATION

CAUTION:

Make sure that the seal is correctly located.

Wheels and tires - tire pressure sensor (G2160695) Removal and installation

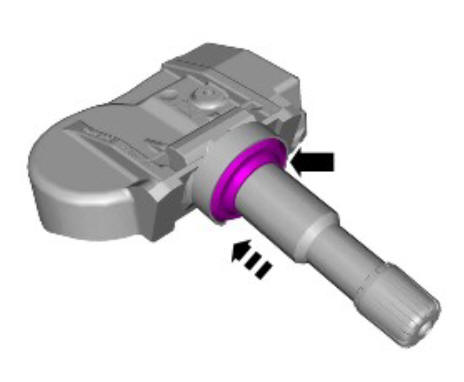

Install a new washer and seal, making sure the valve remains pressed fully onto its seat.

CAUTIONS:

  • Using a lint free cloth make sure that any corrosion or dirt is removed from the mating surfaces.
  • Only use moderate force when installing the sensor.

Wheels and tires - tire pressure sensor (G2160695) Removal and installation

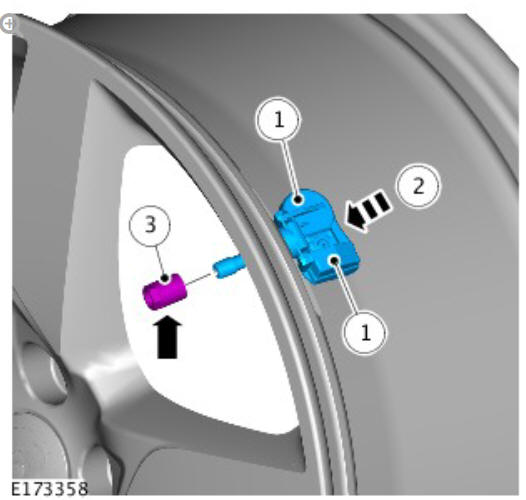

Install a new tire valve, seal, washer, cap and retaining nut.

Torque: 8 Nm

Install the tire and balance the wheel.

Install the wheel.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

Wheels and tires - wheel and tire (G1348306) Removal and installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

CAUTION:

Using power tools may result in damage to the wheel nuts.

Make sure the wheel nuts are released using hand tools only.

Wheels and tires - wheel and tire (G1348306) Removal and installation

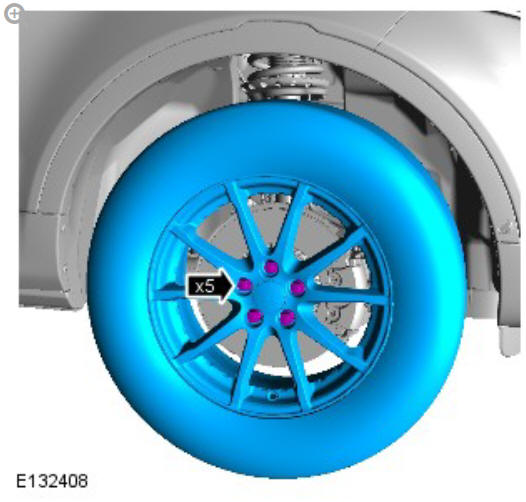

Remove the wheel and tire.

INSTALLATION

CAUTION:

Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.

CAUTION:

Using power tools may result in damage to the wheel nuts.

Make sure the wheel nuts are installed using hand tools only.

NOTE:

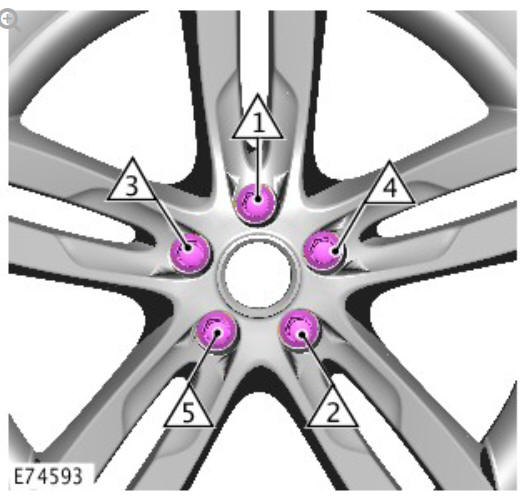

Tighten the wheel in the sequence shown:

Wheels and tires - wheel and tire (G1348306) Removal and installation

Install the wheels and tires.

Torque:

Stage 1: 4 Nm

Stage 2: 70 Nm

Stage 3: 133 Nm
