Land Rover Discovery: Accelerator Pedal (G1350481) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Acceleration and Speed Control / Accelerator Pedal (G1350481) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • LH illustration shown, RH is similar.

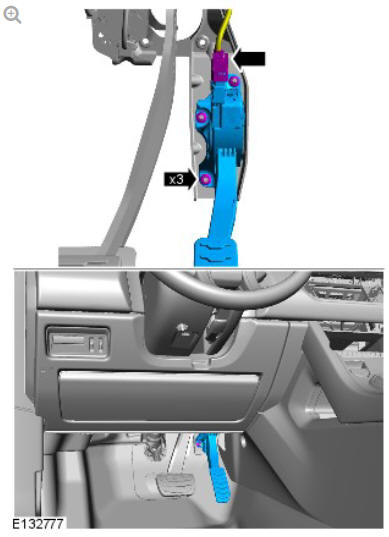

Accelerator Pedal (G1350481) Removal and Installation

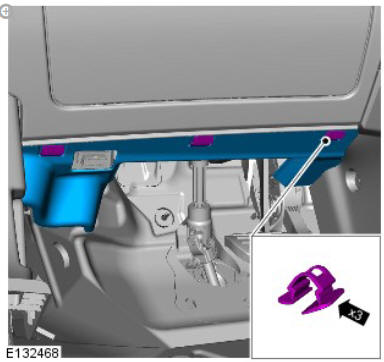

Accelerator Pedal (G1350481) Removal and Installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
