Land Rover Discovery: Anti-Theft - Active Anti-Theft Alarm Horn with Integral Battery (G1791765) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Electronic Feature Group / Anti-Theft - Active Anti-Theft Alarm Horn with Integral Battery (G1791765) / Removal and Installation

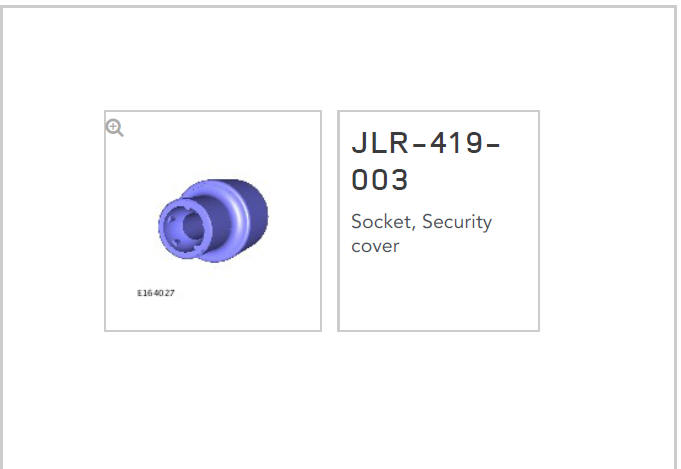

SPECIAL TOOL(S)

Anti-Theft - Active Anti-Theft Alarm Horn with Integral Battery (G1791765) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

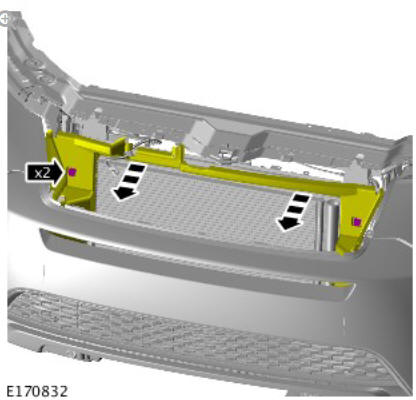

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

Anti-Theft - Active Anti-Theft Alarm Horn with Integral Battery (G1791765) / Removal and Installation

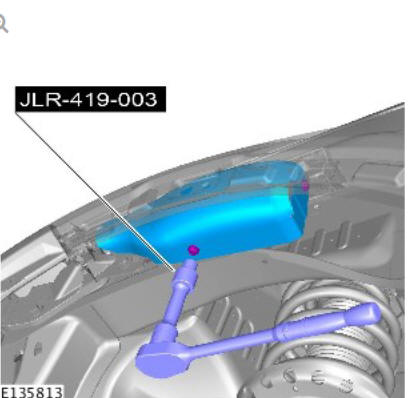

Special Tool(s): JLR-419-003

Torque: 7 Nm

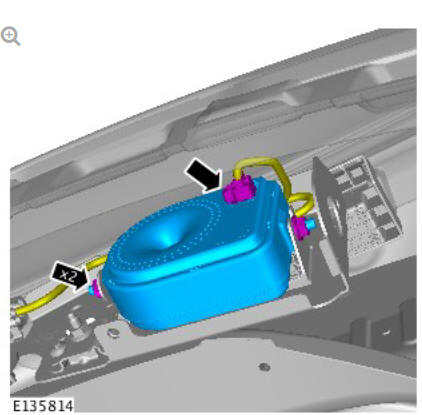

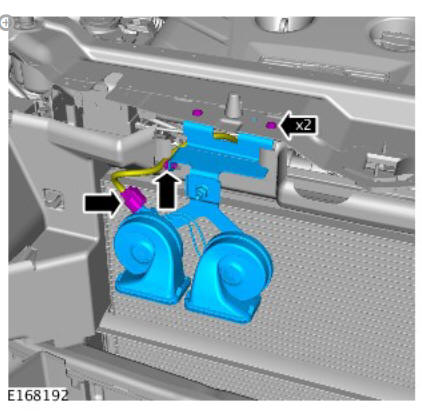

Anti-Theft - Active Anti-Theft Alarm Horn with Integral Battery (G1791765) / Removal and Installation

Torque: 7 Nm

INSTALLATION

To install, reverse the removal procedure.

Anti-theft - active hood switch (G1791766) removal and installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Left hand illustration shown, right hand is similar.

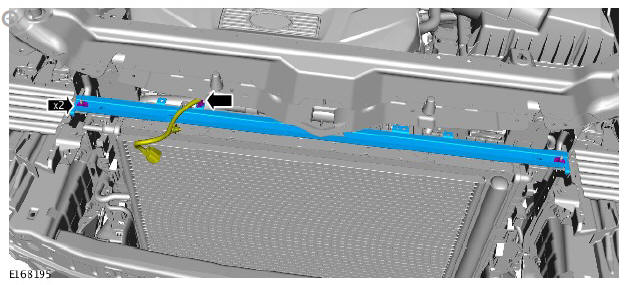

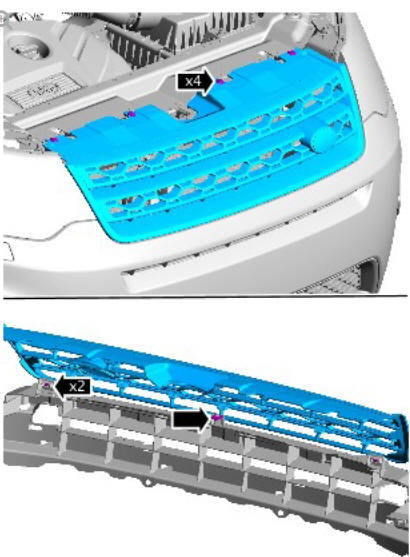

Anti-theft - active hood switch (G1791766) removal and installation

Anti-theft - active hood switch (G1791766) removal and installation

Torque: 10 Nm

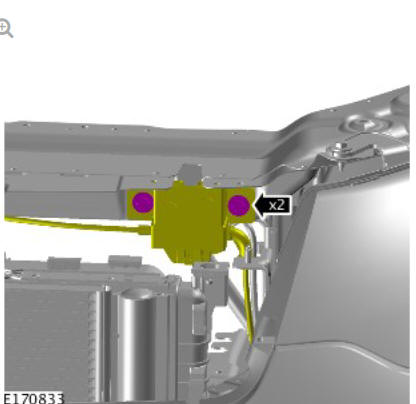

Anti-theft - active hood switch (G1791766) removal and installation

Anti-theft - active hood switch (G1791766) removal and installation

Torque: 5 Nm

Anti-theft - active hood switch (G1791766) removal and installation

Torque: 10 Nm

Anti-theft - active hood switch (G1791766) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
