REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

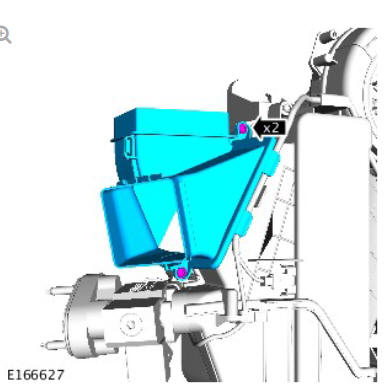

Auxiliary climate control auxiliary evaporator temperature sensor (G1779507) removal and installation

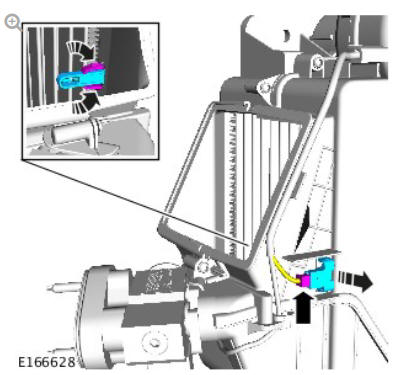

Auxiliary climate control auxiliary evaporator temperature sensor (G1779507) removal and installation

Auxiliary climate control auxiliary evaporator temperature sensor (G1779507) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
  2. Using Land Rover approved diagnostic equipment, calibrate the sensor.

Auxiliary climate control auxilliary thermostatic expansion valve (G1779504) removal and installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Evaporator and Blower Motor Assembly (412-02 Auxiliary Climate Control, Removal and Installation).

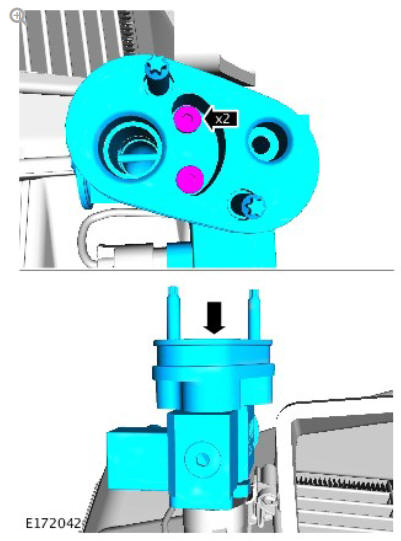

Auxiliary climate control auxilliary thermostatic expansion valve (G1779504) removal and installation

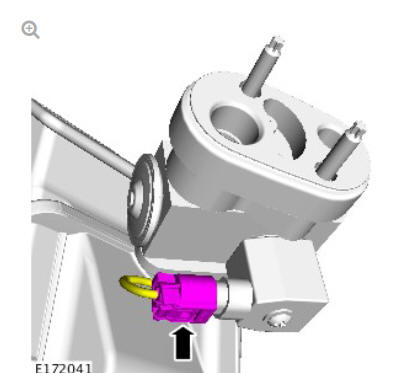

Auxiliary climate control auxilliary thermostatic expansion valve (G1779504) removal and installation

Torque: 4 Nm

INSTALLATION

To install, reverse the removal procedure
