Land Rover Discovery: Auxiliary Climate Control Electric Booster Heater (G1779499) / Removal and Installation
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
Vehicles with automatic transmission
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
Vehicles with manual transmission
Refer to: Gearshift Lever (308-06 Manual Transmission/Transaxle External Controls, Removal and Installation).
All vehicles

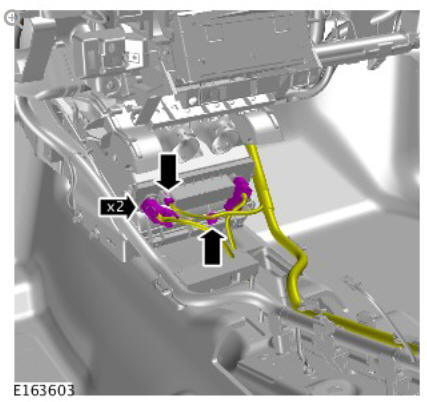

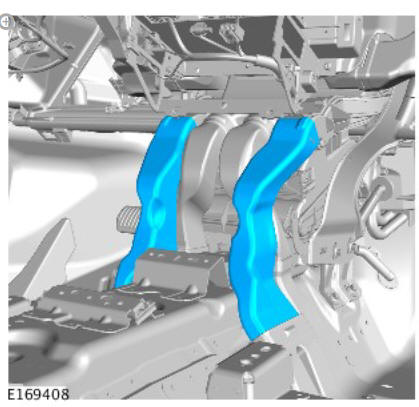

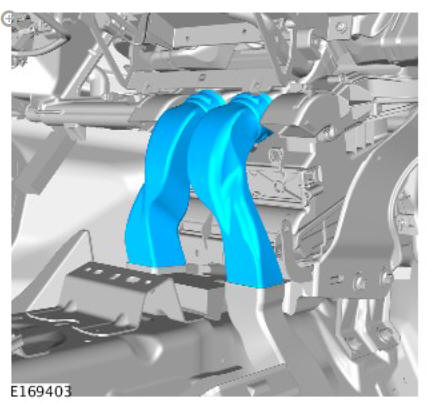

.jpg)
.jpg)
.jpg)
.jpg)

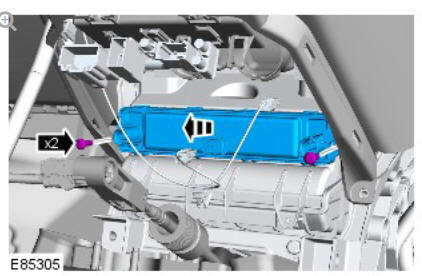

Torque: 2 Nm
Vehicles with automatic transmission
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
Vehicles with manual transmission
Refer to: Gearshift Lever (308-06 Manual Transmission/Transaxle External Controls, Removal and Installation).
All vehicles

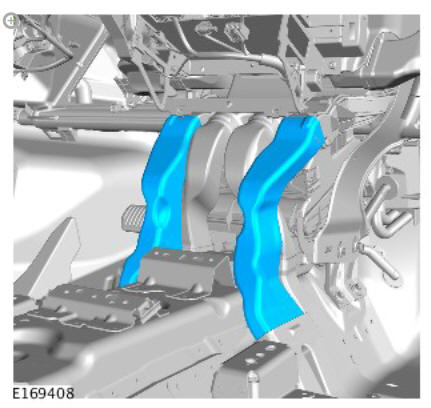

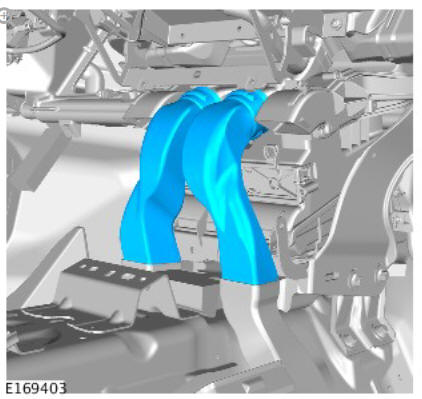

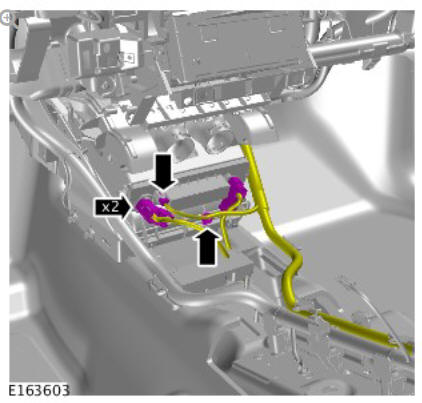

.jpg)
.jpg)
.jpg)
.jpg)

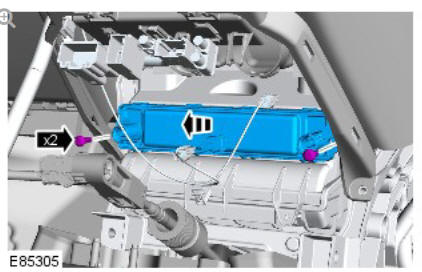

Torque: 2 Nm
INSTALLATION
To install, reverse the removal procedure.
