Land Rover Discovery: Auxiliary Climate Control Evaporator and Blower Motor Assembly (G1817039) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Climate Control System / Auxiliary Climate Control Evaporator and Blower Motor Assembly (G1817039) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Air Conditioning System Recovery, Evacuation and Charging - GTDi 2.0L Petrol (412-00 Climate Control System - General Information, General Procedures).

Refer to: Air Conditioning System Recovery, Evacuation and Charging - TD4 2.2L Diesel (412-00 Climate Control System - General Information, General Procedures).

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

CAUTION:

Take extra care not to damage the component.

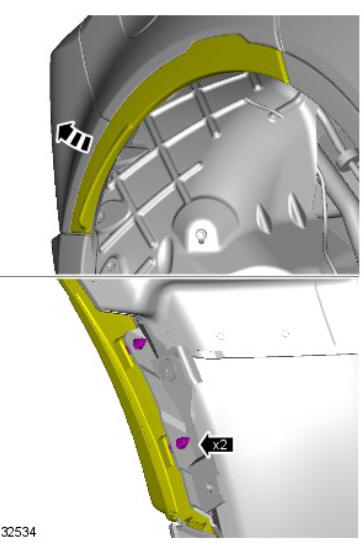

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

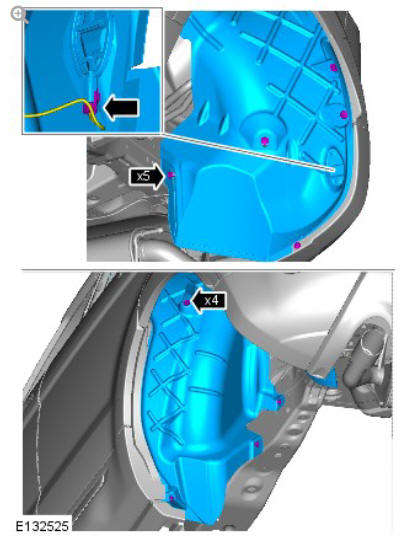

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

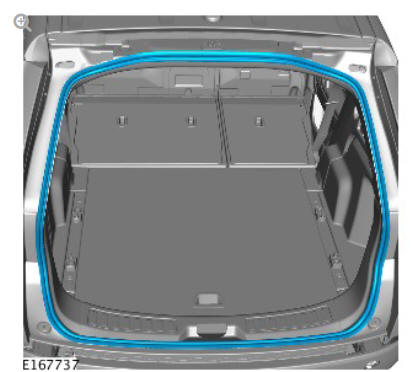

Open the rear door.

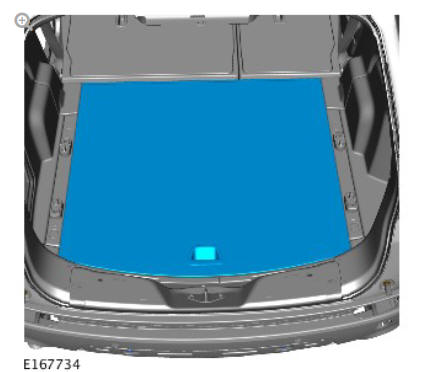

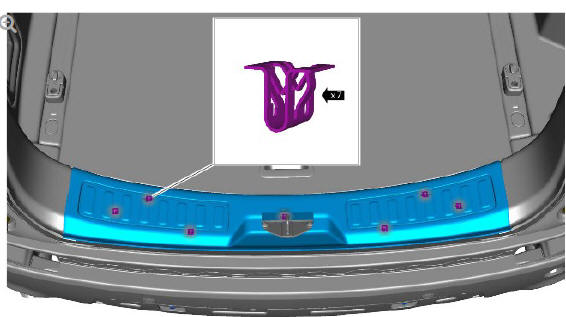

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Torque: 45 Nm

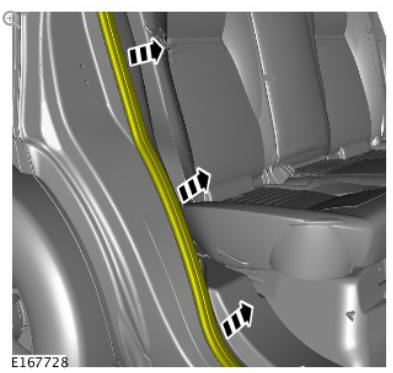

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Torque: 25 Nm

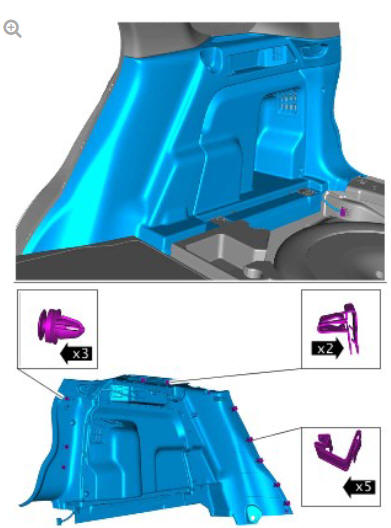

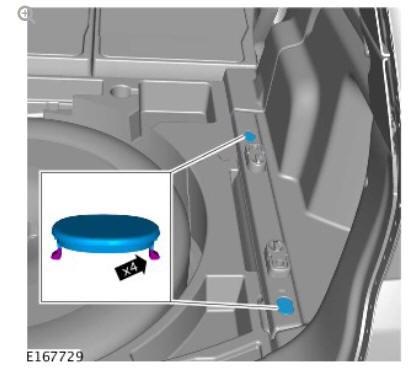

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

NOTE:

Discard the retaining clips.

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Renew Part: Retaining clips.

CAUTION:

Install new o-ring seals

NOTES:

  • Remove and discard the O-ring seals.
  • Make sure that all openings are sealed. Use new blanking caps.

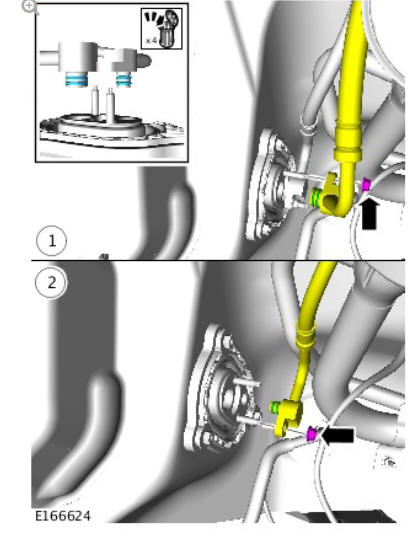

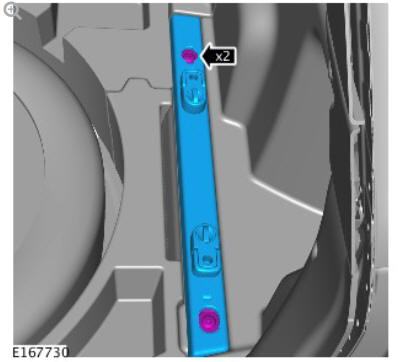

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Renew Part: Evaporator pipe O-ring seals.

Torque: 10 Nm

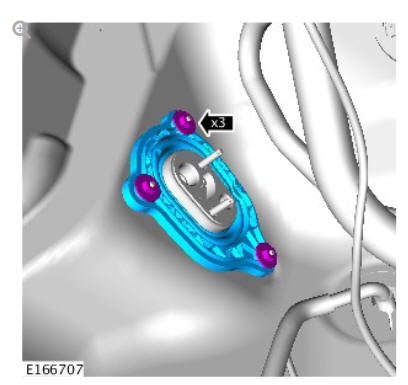

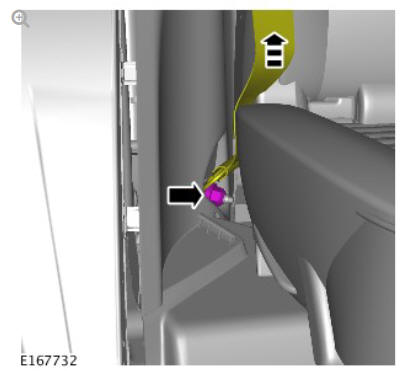

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Torque: 5 Nm

NOTE:

Make sure that all openings are sealed. Use new blanking caps.

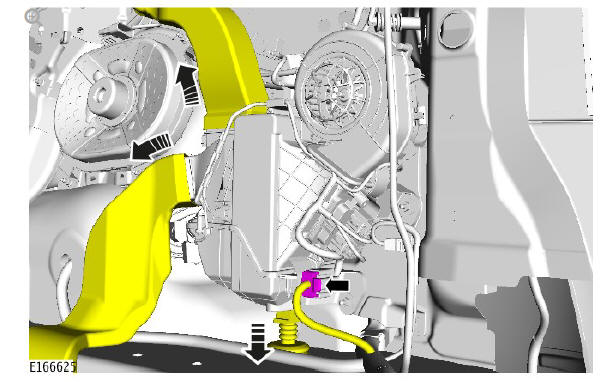

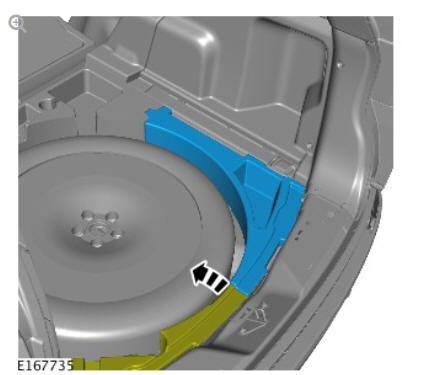

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

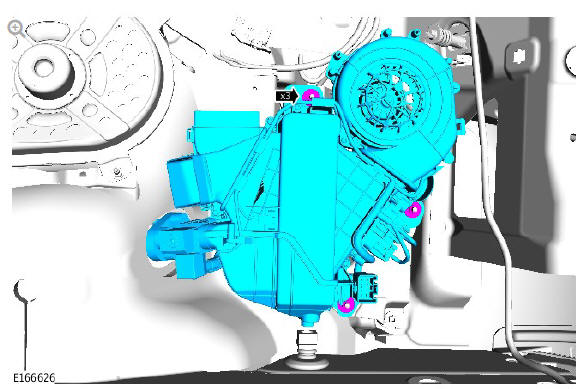

Auxiliary climate control evaporator and blower motor assembly (G1817039) removal and installation

Torque: 5 Nm

INSTALLATION

To install, reverse the removal procedure.
