Land Rover Discovery: Engine Front Cover (G1875898) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Front Cover (G1875898) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Remove the accessory drive belt.

Refer to: Accessory Drive Belt (303-05B Accessory Drive - INGENIUM I4 2.0L Diesel, Removal and Installation).

Remove the crankshaft pulley.

Refer to: Crankshaft Pulley (303-01C, Removal and Installation).

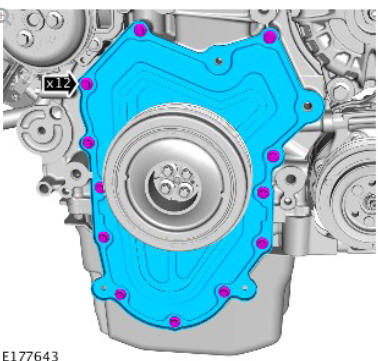

Engine Front Cover (G1875898) / Removal and Installation

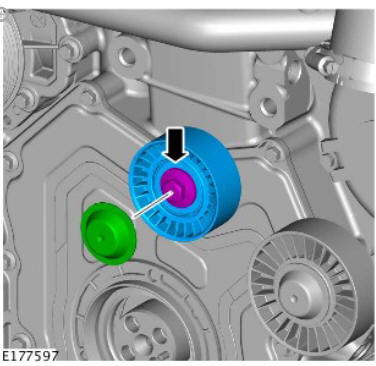

Engine Front Cover (G1875898) / Removal and Installation

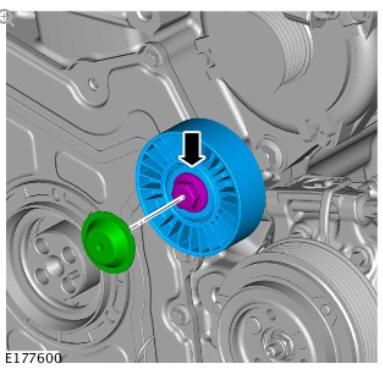

Engine Front Cover (G1875898) / Removal and Installation

INSTALLATION

CAUTION:

Make sure that the surface is clean and free of foreign material.

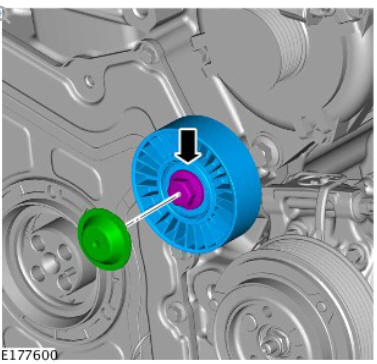

Engine Front Cover (G1875898) / Removal and Installation

NOTE:

Do not fully tighten the bolts at this stage.

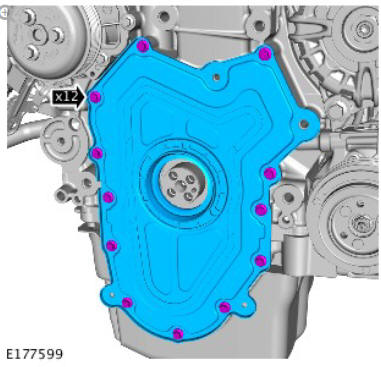

Engine Front Cover (G1875898) / Removal and Installation

Install the crankshaft pulley.

Refer to: Crankshaft Pulley (303-01C, Removal and Installation).

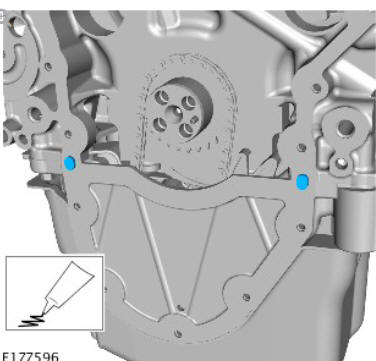

Engine Front Cover (G1875898) / Removal and Installation

Torque: 12 Nm

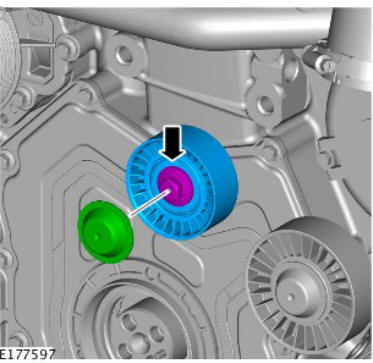

Engine Front Cover (G1875898) / Removal and Installation

Torque: 48 Nm

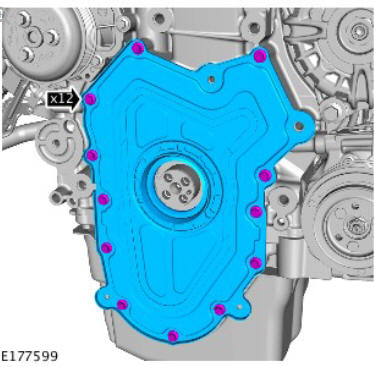

Engine Front Cover (G1875898) / Removal and Installation

Torque: 25 Nm

Install the accessory drive belt.

Refer to: Accessory Drive Belt (303-05A Accessory Drive - TD4 2.2L Diesel, Removal and Installation).

    next pageEngine and Ancillaries (G1977459) / InstallationEngine Mount (G1913572) / Removal and Installationnext page
