Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Engine Mount Alignment (G1815586) / General Procedures
ADJUSTMENT
Transmission mounting
WARNING:
Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Using a suitable hydraulic jack, support the transmission.

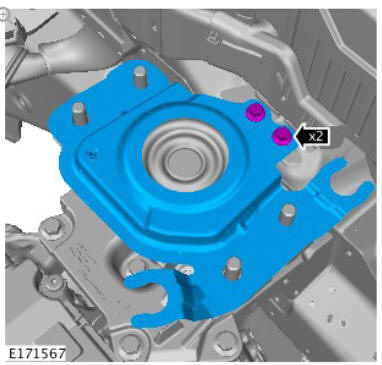

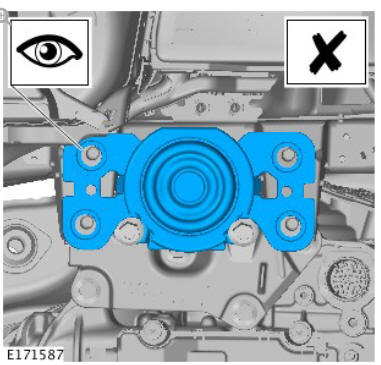

.jpg)

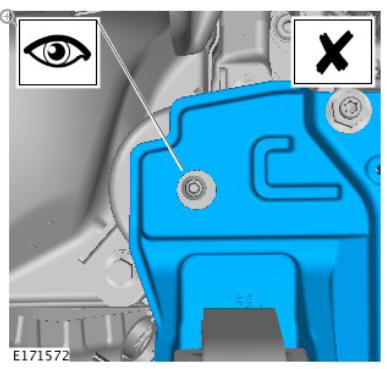

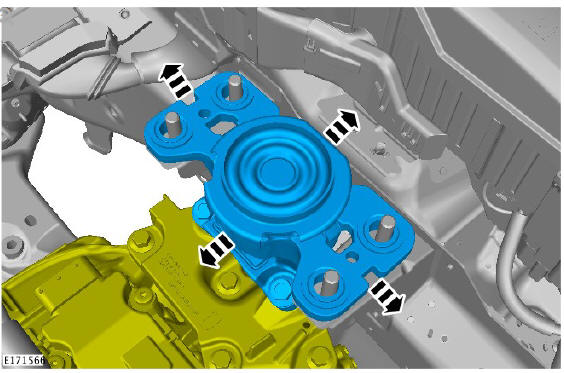

.jpg)

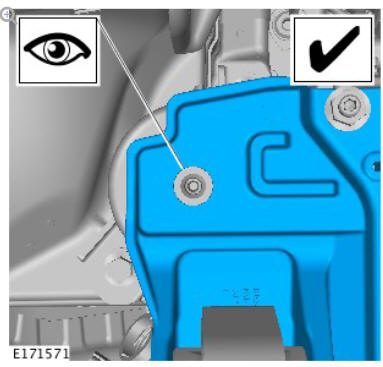

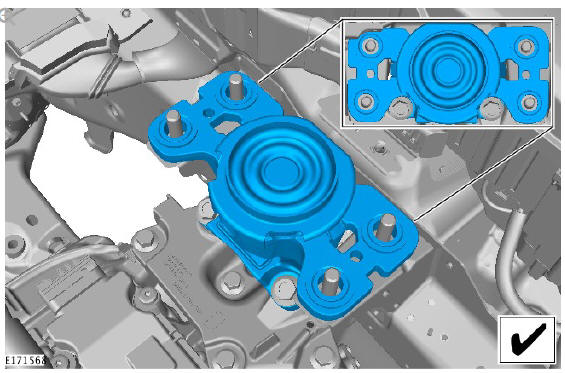

.jpg)
CAUTION:
Take extra care when installing the component.

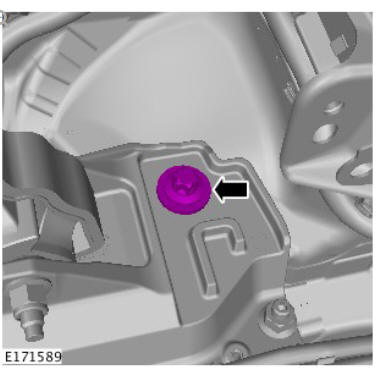

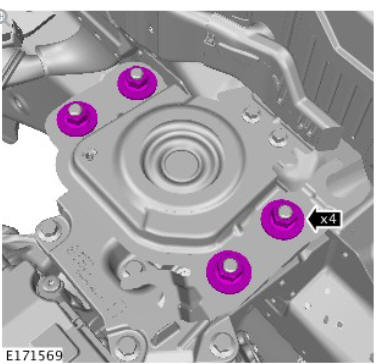

.jpg)
Torque: 25 Nm
CAUTION:
Take extra care not to move the transmission mounting.

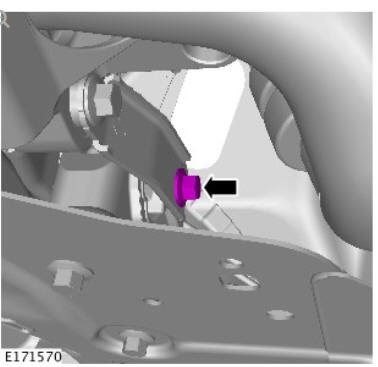

.jpg)
Torque: 80 Nm
Engine mounting
Using a suitable hydraulic jack, support the engine.

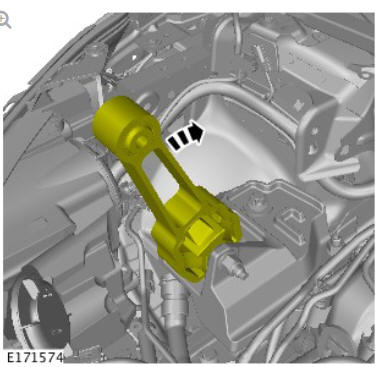

.jpg)
.jpg)
.jpg)
.jpg)
Torque: 80 Nm
Do not install the engine upper support insulator at this point.
NOTE:
Loosen the bolt, but do not remove.

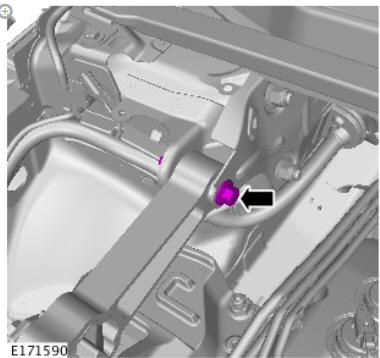

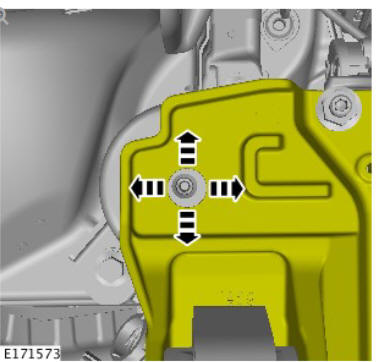

.jpg)
Start the engine.
CAUTION:
Make sure that NEUTRAL is selected before starting this procedure.
NOTE:
Petrol engine shown, diesel engine similar.

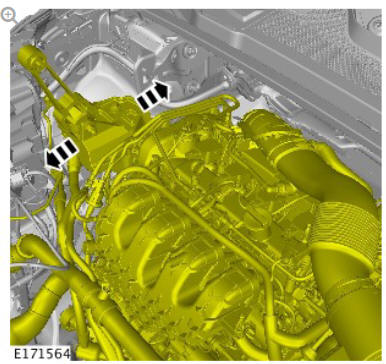

.jpg)
Apply the accelerator pedal a minimum of 3 applications in quick succession, to settle the engine into the correct position.
Turn off the engine.

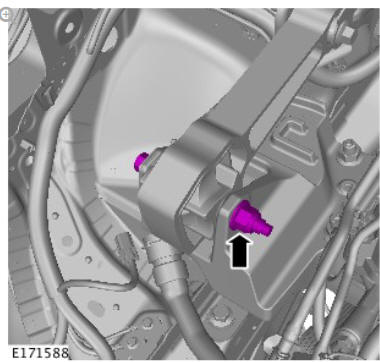

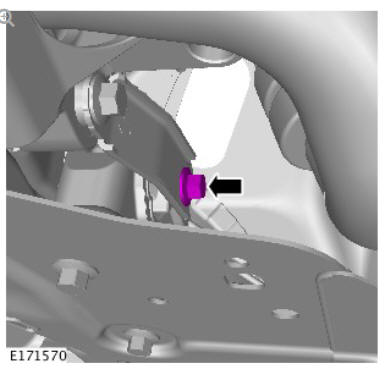

.jpg)
.jpg)
Torque: 110 Nm
.jpg)
Torque: 110 Nm
.jpg)
Torque:
Stage 1: 50 Nm
Stage 2: 180º
