Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Engine Oil Vacuum Draining and Filling
(G2008758)/ General Procedures

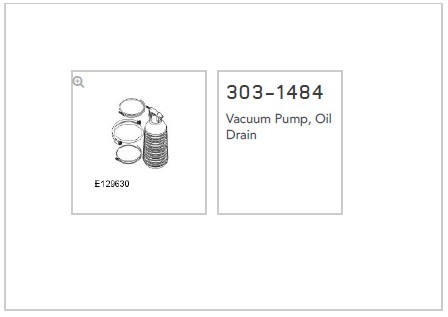

SPECIAL TOOL(S)
.jpg)
PART(S)
.jpg)
CHECK
CAUTION:
Make sure that all openings are sealed.
NOTE:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
Remove the engine cover.
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).
.jpg)

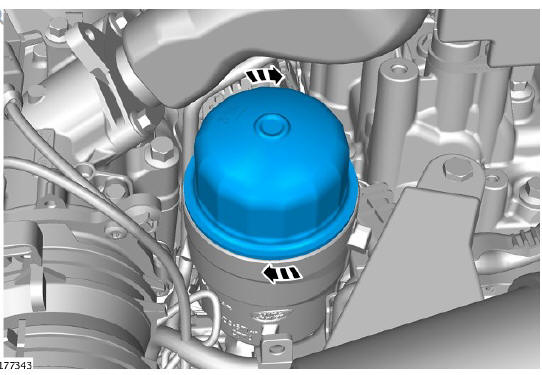

- Loosen the element cover four complete turns to allow
engine oil to drain from the filter cover.
- Allow the engine oil to drain from the oil filter element
housing for two minutes.
.jpg)
.jpg)

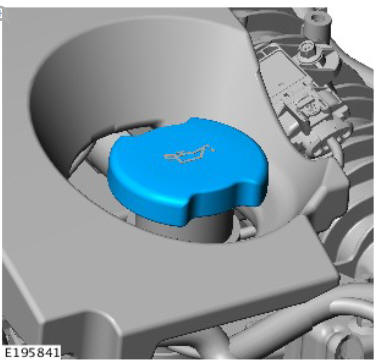

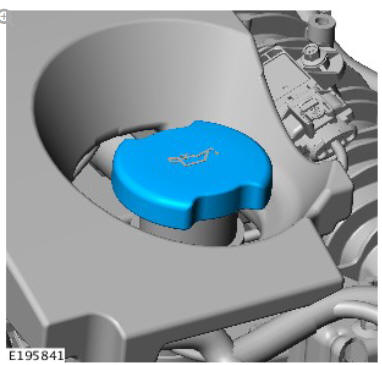

Remove the engine oil filler cap.
.jpg)

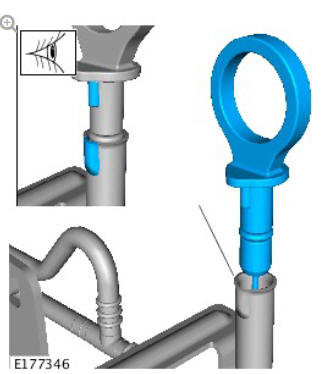

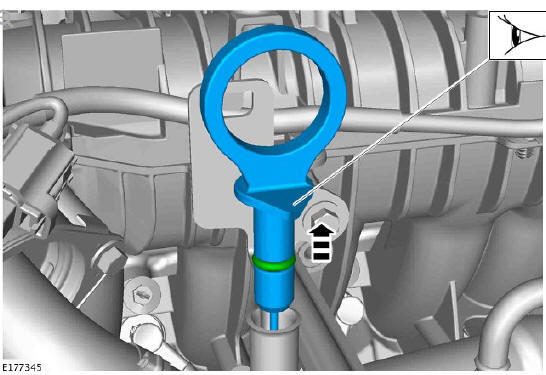

Remove the engine oil level indicator.
.jpg)

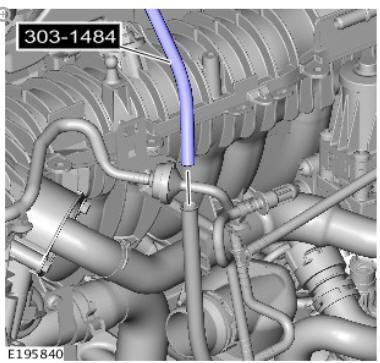

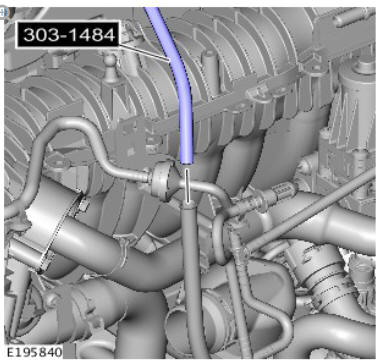

- Install the special tool.
Special Tool(s): 303-1484
- Using the special tool, drain the engine oil.
.jpg)
Remove the special tool.
Special Tool(s): 303-1484
.jpg)

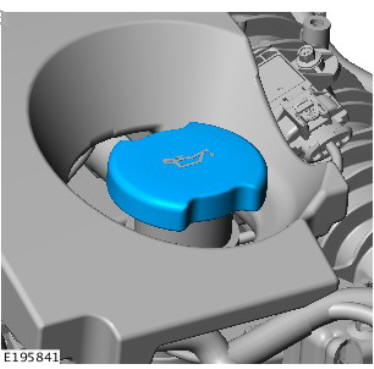

Install the engine oil filler cap.
WARNING:
Be prepared to collect escaping oil.
.jpg)

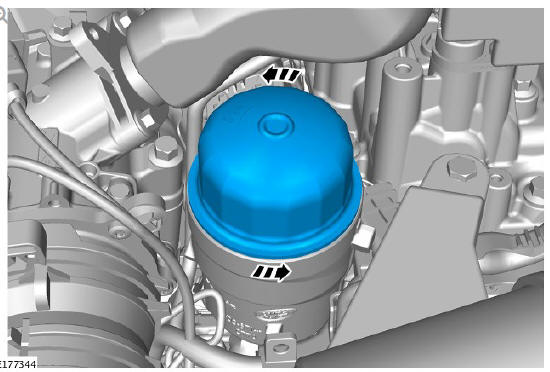

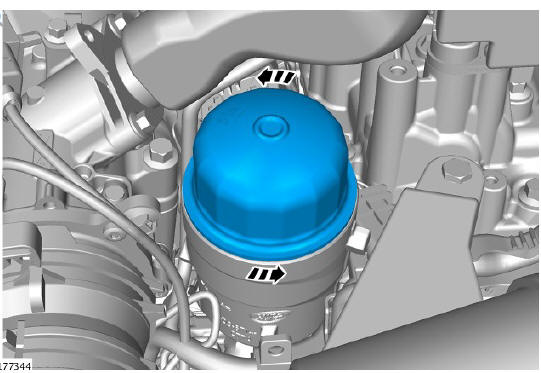

Remove the oil filter element housing.
.jpg)

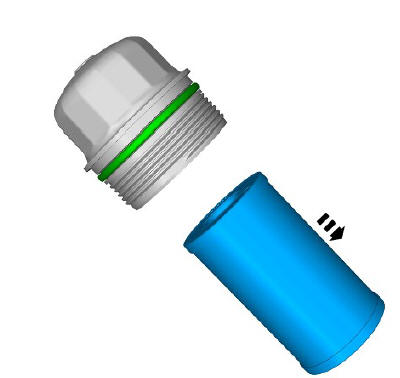

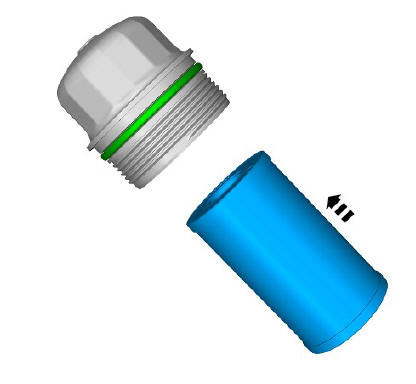

- Remove and discard oil filter element from oil filter housing.
- Remove and discard the seals.
.jpg)
- Install a new oil filter.
Renew Part: Oil filter.
- Install a new O-ring seals.
Renew Part: Oil filter O-ring seal.
- Lubricate the oil filter O-ring seal with clean engine oil.
.jpg)
Torque: 25 Nm
.jpg)

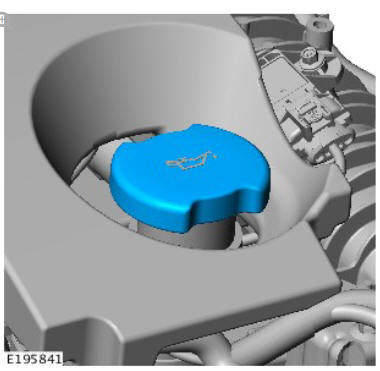

Remove the engine oil filler cap.
Fill the engine with the recommended oil to the correct level.
Refer to: Specifications (303-01B Engine - INGENIUM I4 2.0L Diesel,
Specifications).
.jpg)
Install the engine oil filler cap.
Check the engine oil level.
NOTE:
Make sure that the component is correctly installed.
.jpg)
- Start the engine and allow to idle for 2 minutes.
- Check for leaks.
- Stop the engine.
CAUTION:
Allow for the engine oil level to stabilize. This may
take up to 20 minutes.
- Check the engine oil level.
- Top up as required.
Install the engine cover.
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).
