Land Rover Discovery: Examples of Natural Characteristics of Leather

Below are some examples of the natural characteristics of leather which will mature with use and ageing. These examples of the natural charcteristics of leather are not manufacturing defects. Improvements in the seat cover can be achieved by following the smoothing process.

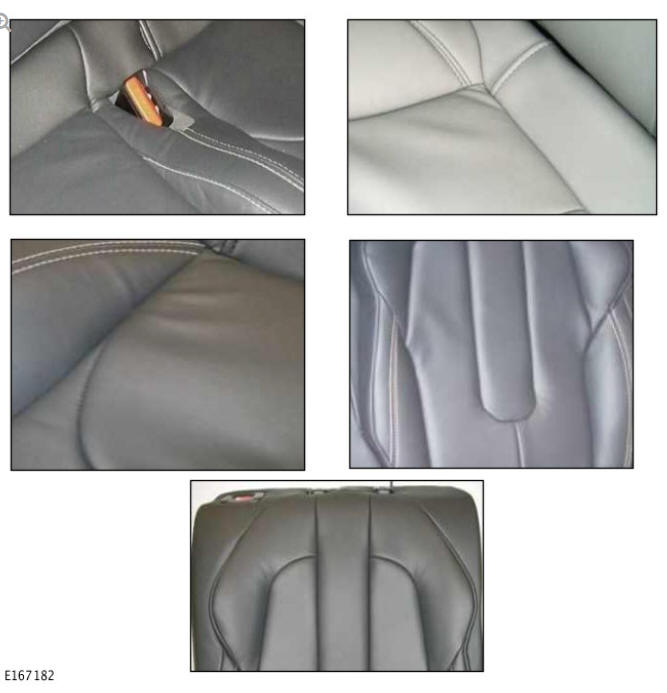

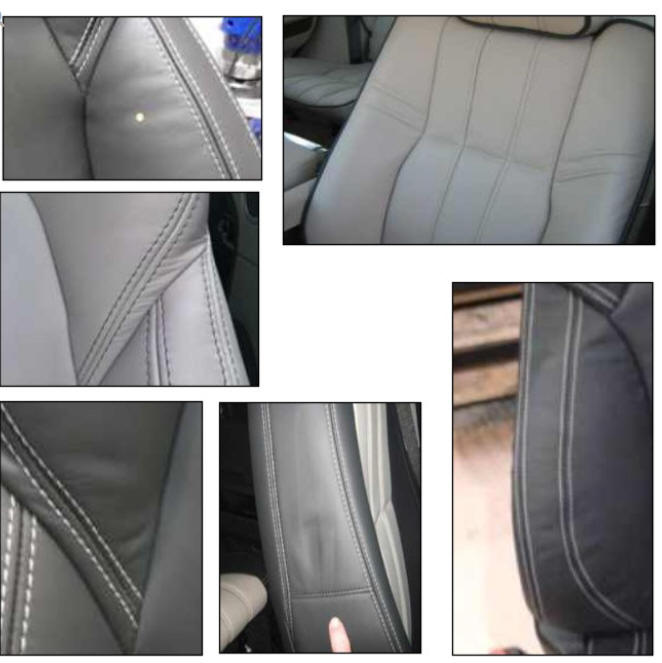

The examples below show the natural characteristics of leather. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

Examples of Natural Characteristics of Leather

Examples of Natural Characteristics of Leather

Examples of Natural Characteristics of Leather

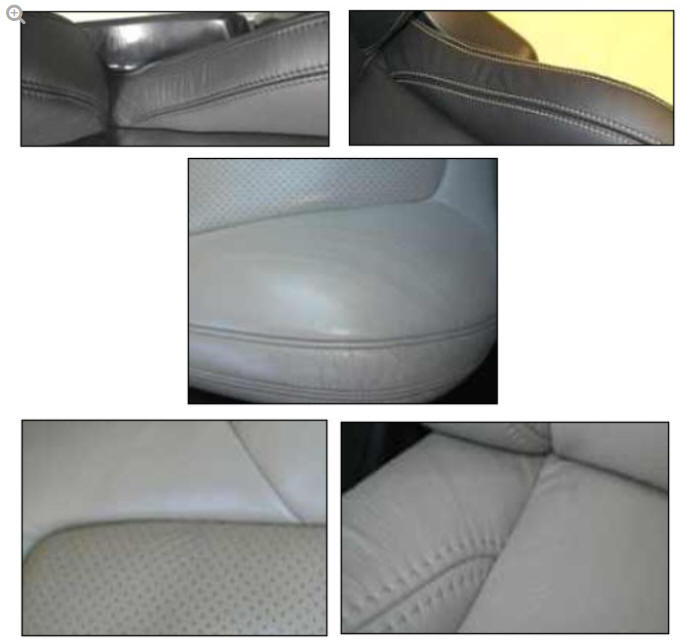

The examples below show the natural characteristics of leather on the front seat back and squab bolsters. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

Examples of Natural Characteristics of Leather

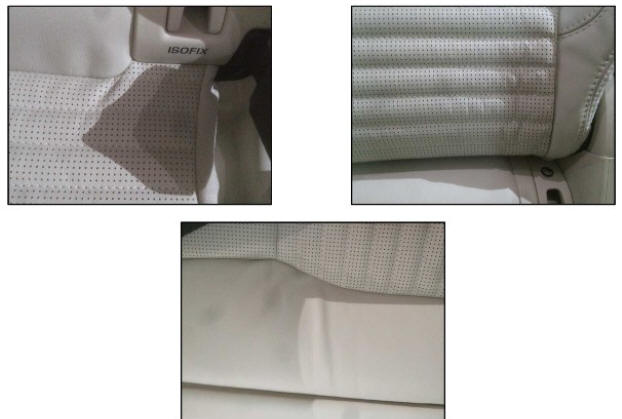

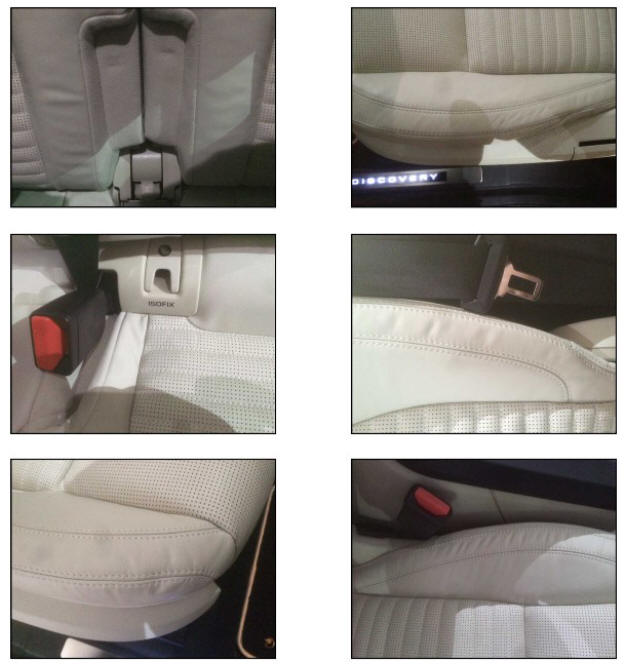

The examples below show the natural characteristics of leather on the rear seat. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

Examples of Natural Characteristics of Leather
