REMOVAL

WARNING:

Observe due care when working near a hot exhaust system.

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

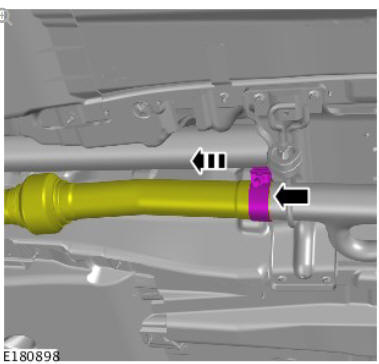

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 55 Nm

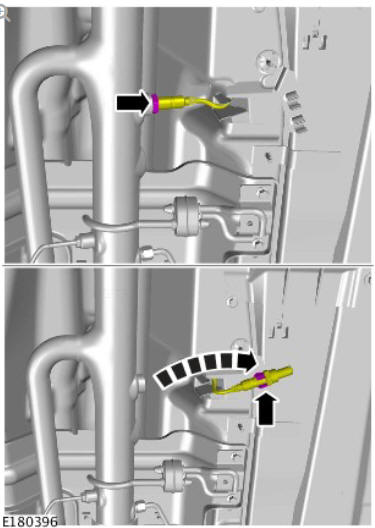

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 48 Nm

CAUTIONS:

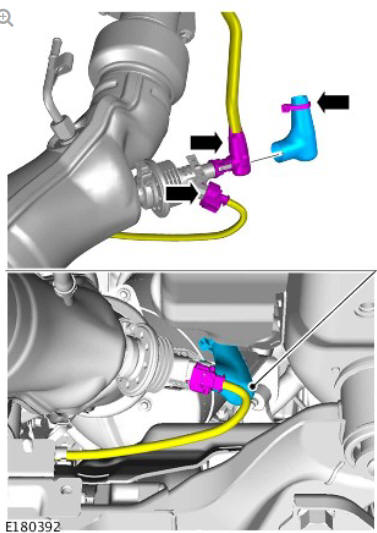

  • Make sure that all openings are sealed. Use new blanking caps.
  • Make sure that the area around the component is clean and free of foreign material.
  • Be prepared to collect escaping fluids.

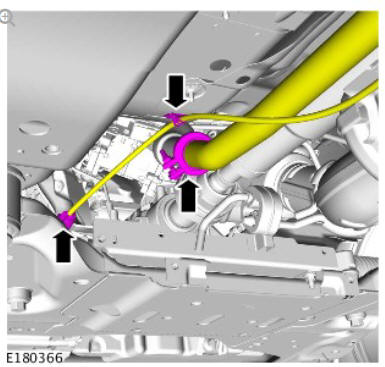

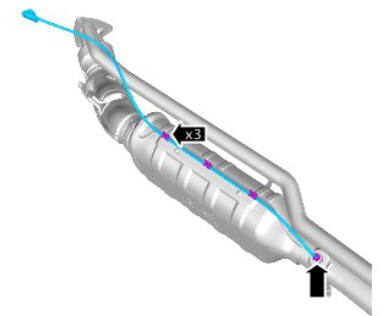

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

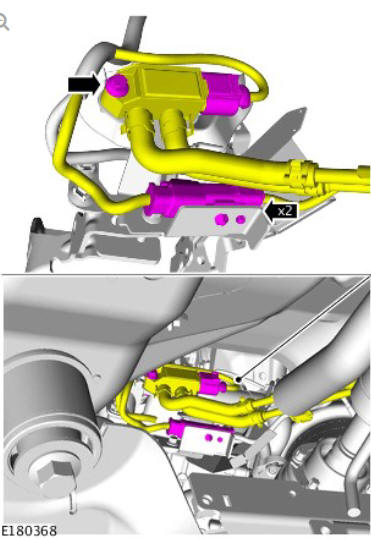

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 10 Nm

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 6 Nm

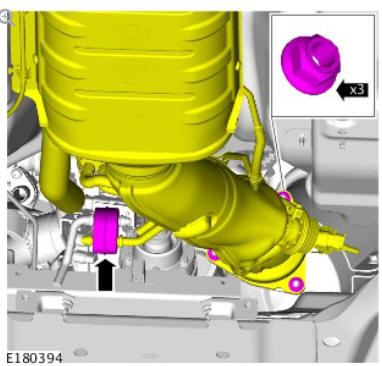

CAUTION:

Make sure that new nuts are installed.

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 24 Nm

NOTE:

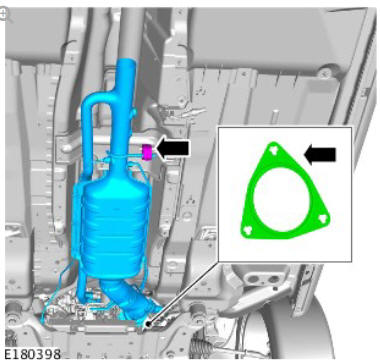

Install new gasket.

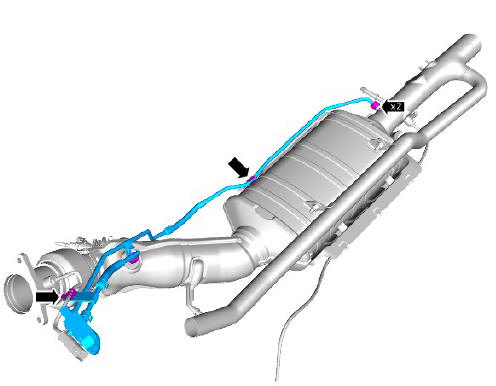

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

NOTE:

Do not disassemble further if the component is removed for access only.

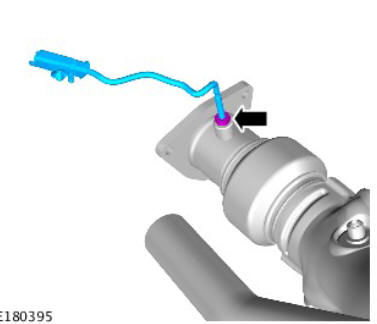

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 35 Nm

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 35 Nm

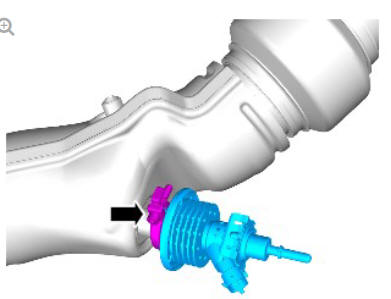

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 35 Nm

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles With- Diesel Exhaust Fluid (G1880492) / Removal Installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new unit is installed, configure using Land Rover approved diagnostic equipment.
