Land Rover Discovery: Folding the rear seats

Always make sure that objects carried in the vehicle are secured properly.

Never allow passengers to travel in the loadspace under any circumstances.

Make sure that when the seatback is raised, the locking mechanism is fully engaged.

When raising the rear seatbacks, make sure the seat belts are correctly routed and not trapped behind the seats.

Make sure the head restraints are raised to the correct position before the seats are used by a passenger.

FOLDING AND RAISING THE FIXED SEATS

When raising the rear seats, make sure that seat belts are correctly routed and not trapped behind the seats.

The split folding rear seats can be folded completely to accommodate large loads, or partially to accommodate large loads and still retain seating for passengers.

FOLDING AND RAISING THE FIXED SEATS

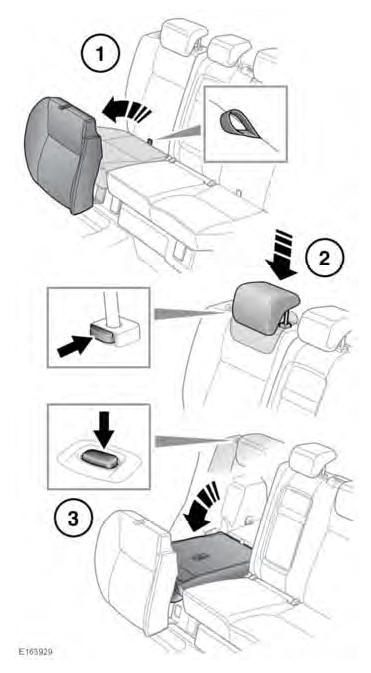

Fold part or all of the seat, as follows:

  1. Pull the strap on the required cushion(s), to raise to the vertical position.
  2. Fully lower the head restraints.
  3. Press the seatback release button(s), then lower the seatback(s) until locked into place.

To raise the rear seat(s), follow the lowering process in reverse.

Make sure that when the seatback(s) is raised, the locking mechanism is fully engaged. If the seatback(s) is not fully locked in place, red markers will be visible around the seatback buttons.

Adjust the head restraint(s).

FOLDING AND RAISING THE SLIDING SEATS

When raising the rear seats, make sure that seat belts are correctly routed and not trapped behind the seats.

The split folding rear seats can be folded completely to accommodate large loads, or partially to accommodate large loads and still retain seating for passengers.

FOLDING AND RAISING THE SLIDING SEATS

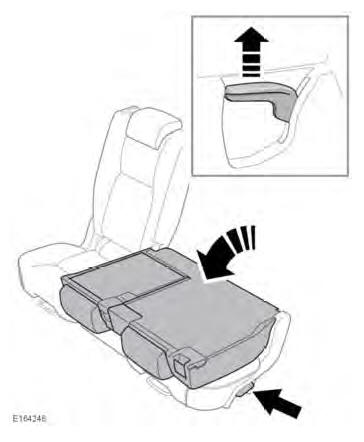

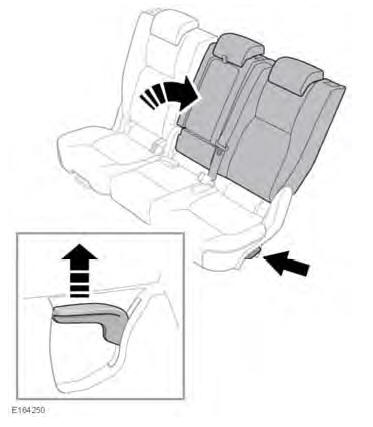

To fold a second row seatback: Lift the lever on the side of the seat and pull the seatback forwards until it locks into the lowered position.

To raise the seatback: Lift the lever to unlock the seatback and then lift until it is locked firmly in the upright position.

FOLDING AND RAISING THE SLIDING SEATS

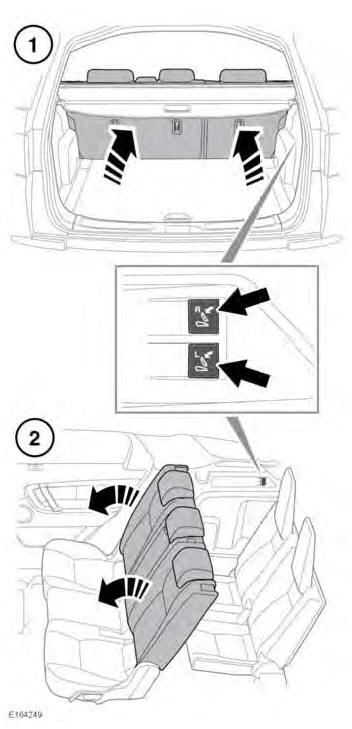

The second row seatbacks can be folded from inside the loadspace (1), or by the passengers occupying the third row seats (2):

  • Pull back on the switch to release the seatback locking mechanism for the Right (R) or Left (L) side seatback.

Note: The switches will only operate when the vehicle is stationary and the tailgate is open.

  • Push forward on the unlocked seatback to lower it into the folded position.

To reset: Lift the seatback into the upright locked position using the lever on the side of the seat. Make sure the seatback locks firmly into the upright position.

FOLDING AND RAISING THE SLIDING SEATS

To recline the second row seatback: Lift the lever on the side of the seat and push the seatback into the recline position.

To reset the seatback into the upright position: Lift the lever and pull the seatback forward into the upright position.

Make sure the seatback locks firmly into the upright position.

FOLDING AND RAISING THE SLIDING SEATS

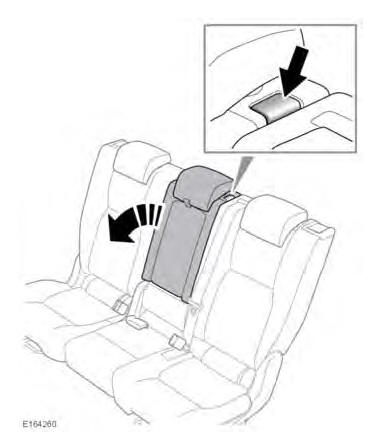

To fold the centre of the seatback: Press the release button on the top of the seatback, then fold the centre of the seatback forwards into the lowered position.

To reset into the upright position: Lift the centre of the seatback until it locks firmly into the upright position.

Note: The second row centre seatbelt incorporates a locking feature to prevent the seatbelt from being pulled out too far when the seatback is folded flat. To reset this feature after folding the seat and returning to the upright position, pull the belt twice, the seatbelt will then operate as normal.

FOLDING AND RAISING THE SLIDING SEATS

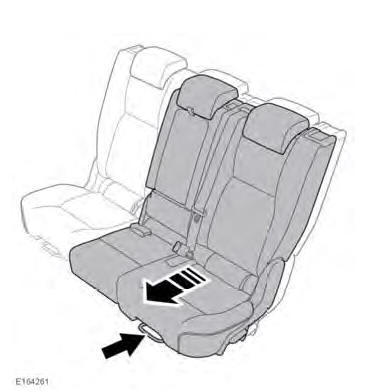

To move a rear seat forward or back:

  • Lift the bar at the front of the rear seat.

    Then slide the rear seat into the required position.

  • Release the bar and make sure the rear seat is locked firmly in position.
