Installation

All vehicles

NOTE:

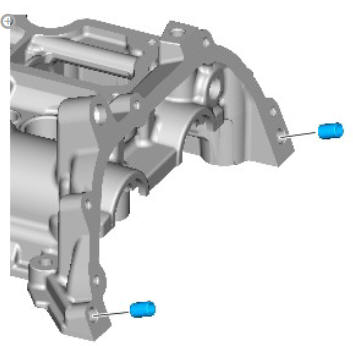

If a new valve cover is installed, new locating dowels must installed.

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

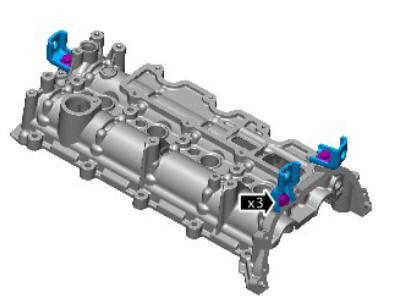

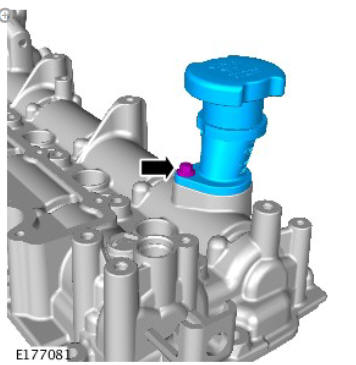

Torque: 47 Nm

CAUTION:

Install a new seal.

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

Renew Part: Oil fill pipe O-ring seal.

Torque: 12 Nm

CAUTION:

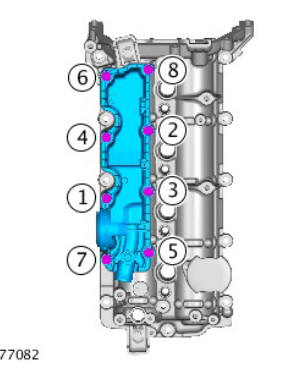

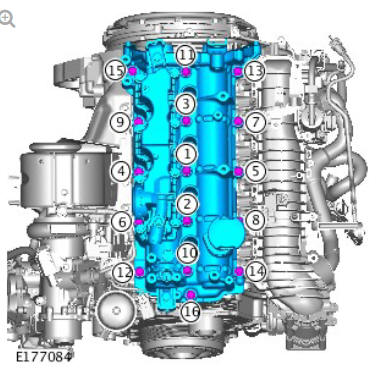

Install and finger tighten bolts before final tightening in sequence illustrated.

NOTE:

Install a new gasket.

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

Renew Part: Engine vent oil separator to valve cover gasket.

Torque: 12 Nm

CAUTION:

Install and finger tighten bolts before final tightening in sequence illustrated.

NOTE:

Make sure that these components are installed to the noted removal position.

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

Lubricate the components with clean engine oil.

Torque: 12 Nm

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

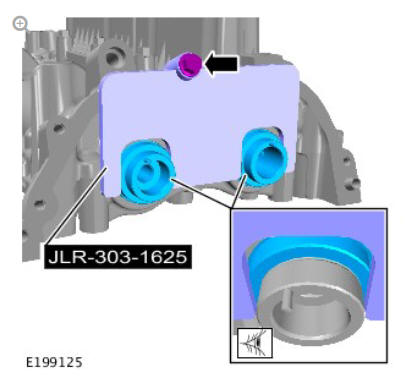

Align the camshafts and install the special tool JLR-303-1625.

Special Tool(s): JLR-303-1625

CAUTION:

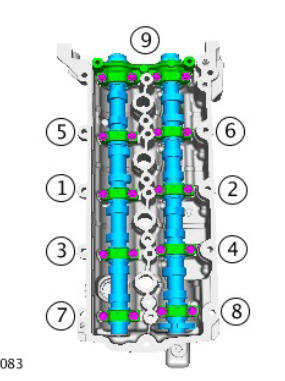

Install and finger tighten bolts before final tightening in sequence illustrated.

NOTE:

Install a new gasket.

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

Renew Part: Camshaft cover gasket.

Torque:

M8 x 80

Stage 1: 15 Nm

Stage 2: 42º

M8 x 40 25 Nm

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

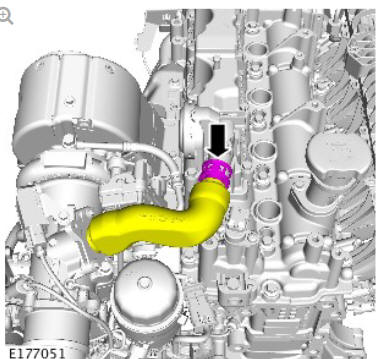

Install the pipe.

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

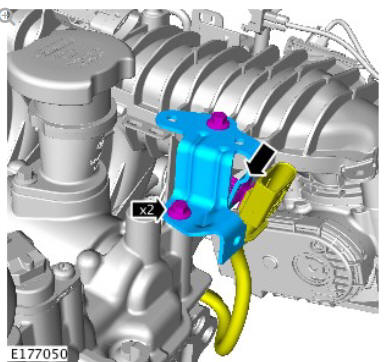

Install the bracket.

Torque: 12 Nm

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

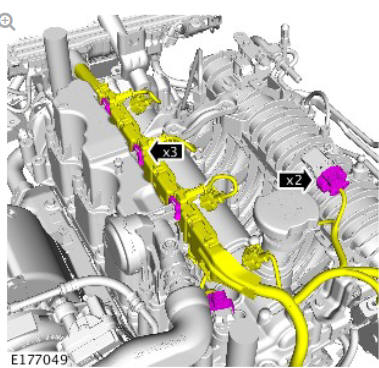

Install the harness.

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

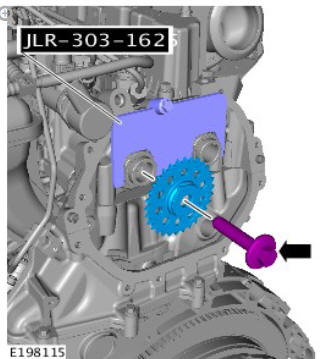

Install the camshaft gear.

Special Tool(s): JLR-303-1625

Renew Part: Camshaft sprocket bolt.

Torque:

Stage 1: 10 Nm

Stage 2: Loosen: 90º

Stage 3: 80 Nm

Stage 4: 90º

Install the fuel cooler.

Refer to: Fuel Cooler (310-01B Fuel Tank and Lines - INGENIUM I4 2.0L Diesel, Removal and Installation).

Install the upper timing cover.

Refer to: Upper Timing Chain (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Install the fuel injectors.

Refer to: Fuel Injectors (303-04C Fuel Charging and Controls - INGENIUM I4 2.0L Diesel, Removal and Installation).

Install the fuel rail.

Refer to: Fuel Rail (303-04C Fuel Charging and Controls - INGENIUM I4 2.0L Diesel, Removal and Installation).

Vehicles with auxiliary fuel system

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

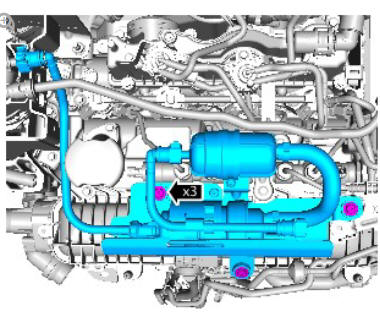

Install the auxiliary fuel pump and filter assembly.

Torque: 10 Nm

Engine - Ingenium i4 2.0l Diesel Valve Cover (G1875874) /  Installation

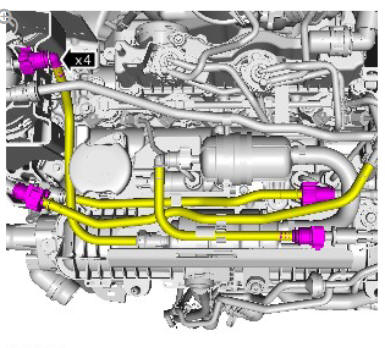

Install the auxiliary fuel pipes.

All vehicles

Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
