Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Valves (G1875887) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine - Ingenium i4 2.0l Diesel Valves (G1875887) / Removal and Installation

SPECIAL TOOL(S)

SPECIAL TOOL(S)

REMOVAL

  1. Refer to: Cylinder Head (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

NOTE:

Repeat step for other Valves.

Engine - Ingenium i4 2.0l Diesel Valves (G1875887) Removal and Installation

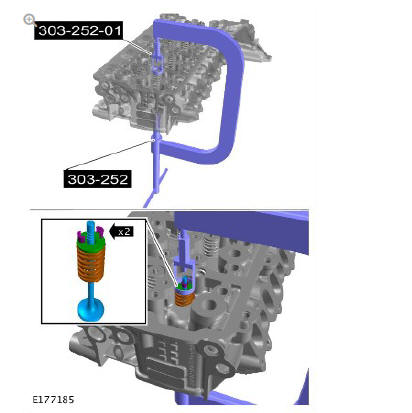

Using the special tool 303-252 compress the valve spring. Remove 2 collets from the valve stem using a magnet.

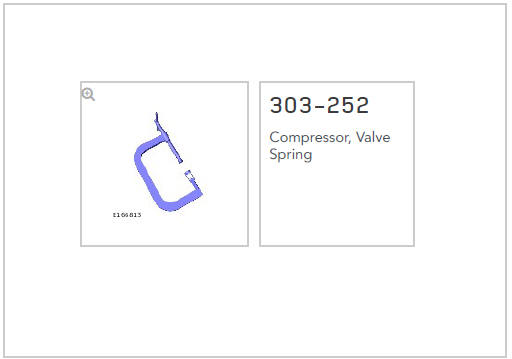

Special Tool(s): 303-252

NOTE:

Repeat step for other Valves.

Engine - Ingenium i4 2.0l Diesel Valves (G1875887) Removal and Installation

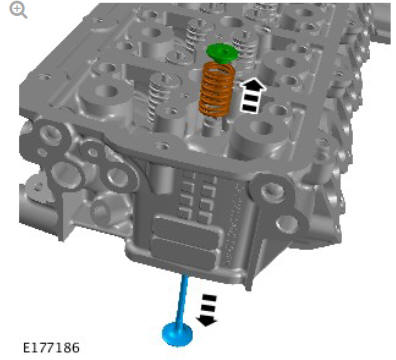

Remove the spring cap, valve spring and valve.

INSTALLATION

NOTE:

Repeat step for other Valves.

  1. Lap each valve to seat using fine grinding paste.
  2. Apply Prussian Blue to valve seat, insert valve and press into position several times without rotating. Remove and check valve for even and central seating, seating position shown in blue should be in the center of valve face.

NOTE:

Repeat step for other Valves.

Remove all traces of grinding paste on completion.

NOTES:

  • Repeat step for other Valves.
  • Lubricate the valve stems and assemble valves.

Engine - Ingenium i4 2.0l Diesel Valves (G1875887) Removal and Installation

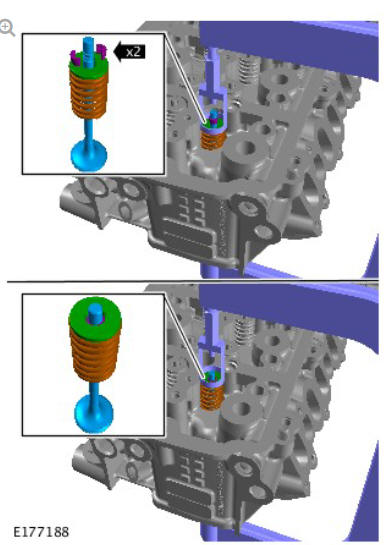

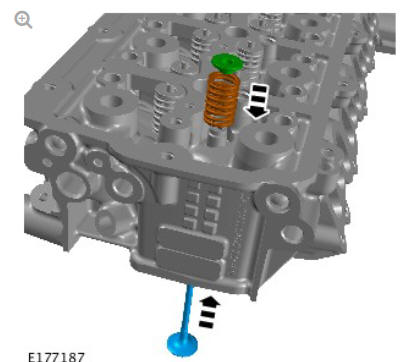

Install the spring cap, valve spring and valve.

NOTE:

Repeat step for other Valves.

Engine - Ingenium i4 2.0l Diesel Valves (G1875887) Removal and Installation

Refer to: Cylinder Head (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).
