Land Rover Discovery: Side Panel Sheet Metal Repairs Rocker Panel and B Pillar Inner (G1770926) - Removal

NOTE:

The rocker panel and B-pillar inner is installed in conjunction with:

  • Front fender
  • Front door
  • Rear door
  • B-pillar outer panel
  • Headliner
  • Rocker panel

NOTE:

The rocker panel and B-pillar inner is detached from the inner ring frame as it is not serviced separately

Side panel sheet metal repairs rocker panel and B pillar inner (G1770926) - Removal

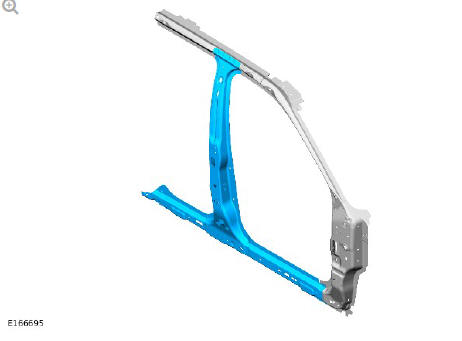

  1. The rocker panel and B-pillar inner is serviced as indicated.
  2. Before commencing this procedure make sure that you are aware of all Health and Safety requirements.

    For additional information, refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

  3. For further information on the methods, tools and fixings used in this procedure refer to the body repairs - general information section.

NOTES:

  • Any joints sealed as part of vehicle manufacture must be sealed as part of the repair.
  • Make sure a zinc rich primer is applied to any bare metal surfaces.
  1. For additional information, refer to: Fender (501-02 Front End Body Panels, Removal and Installation).
  2. For additional information, refer to: Front Door (501-03 Body Closures, Removal and Installation).
  3. For additional information, refer to: Rear Door (501-03 Body Closures, Removal and Installation).
  4. For additional information, refer to: 'B' Pillar Outer Panel (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).
  5. For additional information, refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).
  6. For additional information, refer to: Rocker Panel (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).
  7. Release and position the floor carpet to one side.
  8. Release and position the floor noise, vibration, harshness (NVH) material to one side.
  9. Release and position the wiring harness to one side.

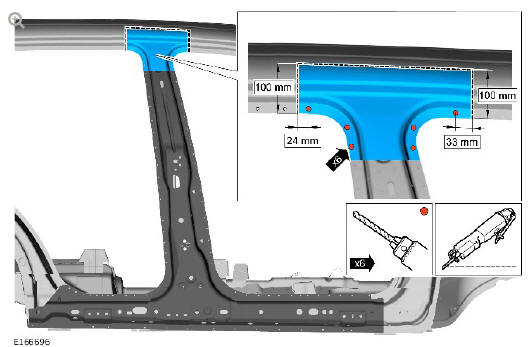

  10. To install the rocker panel and B-pillar inner the B-pillar outer panel will require the following cuts to be made and spot welds to be removed as indicated.

Side panel sheet metal repairs rocker panel and B pillar inner (G1770926) - Removal

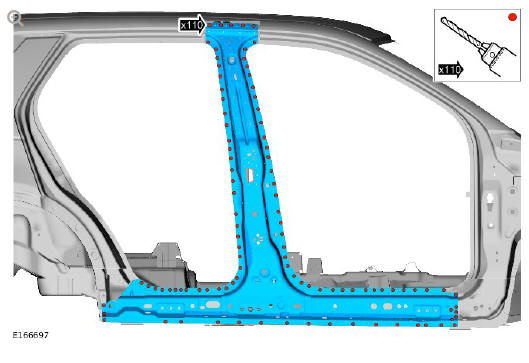

  1. Remove the spot welds as indicated.

Side panel sheet metal repairs rocker panel and B pillar inner (G1770926) - Removal

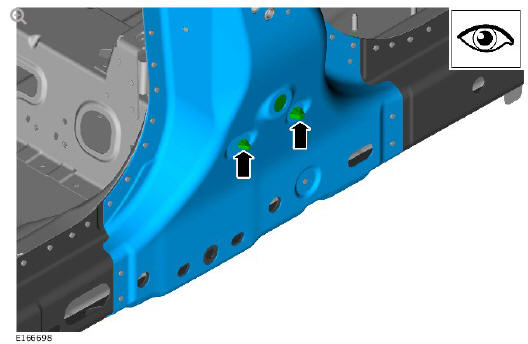

  1. Carefully separate the joints and remove the panel, also releasing the Noise, Vibration and Harshness (NVH) component as indicated.

Side panel sheet metal repairs rocker panel and B pillar inner (G1770926) - Removal
