Land Rover Discovery: Rear Quarter Window Glass (G1805069) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Glass, Frames and Mechanisms / Rear Quarter Window Glass (G1805069) / Removal and Installation

REMOVAL

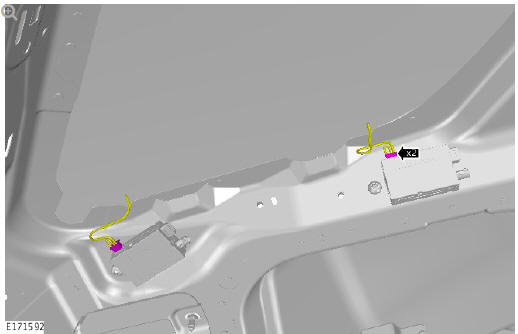

Refer to: C-Pillar Upper Trim Panel (501-05, Removal and Installation).

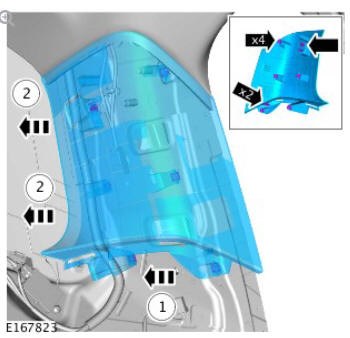

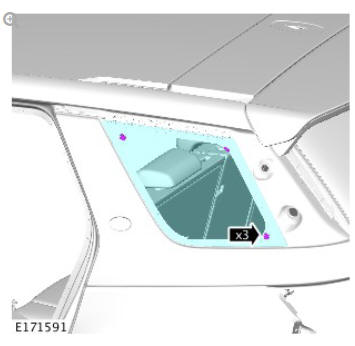

Rear quarter window glass (G1805069) removal and installation

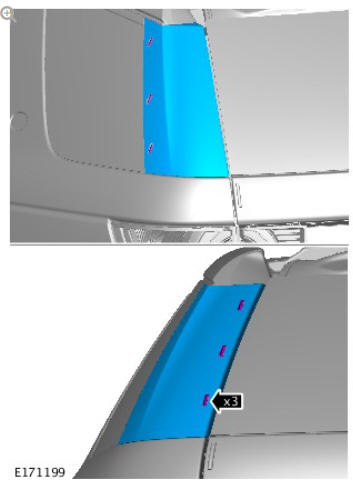

Rear quarter window glass (G1805069) removal and installation

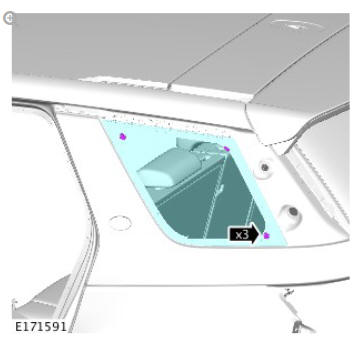

Rear quarter window glass (G1805069) removal and installation

CAUTIONS:

  • Protect the surrounding components.
  • Protect the surrounding paintwork to avoid damage.

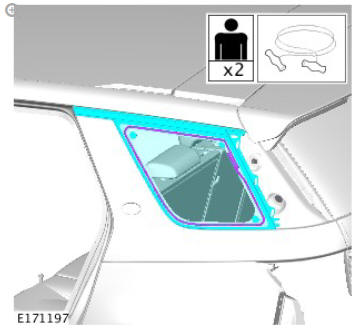

Rear quarter window glass (G1805069) removal and installation

Pull glazing wire through windshield sealant to the inside of the vehicle.

Rear quarter window glass (G1805069) removal and installation

INSTALLATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Rear quarter window glass (G1805069) removal and installation

NOTE:

Make sure that a Hi-modulus sealer (for example, Wurth Ultimate adhesive) is used when bonding the component to the vehicle.

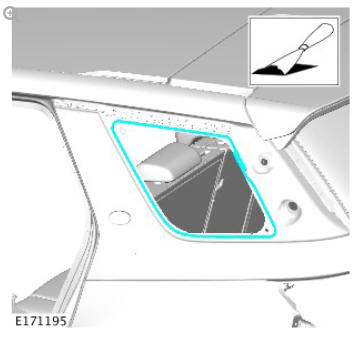

Rear quarter window glass (G1805069) removal and installation

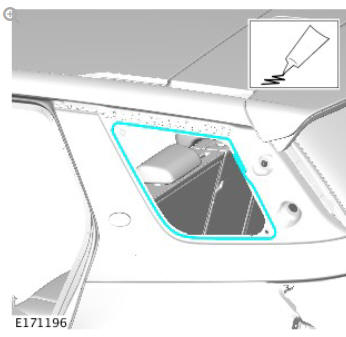

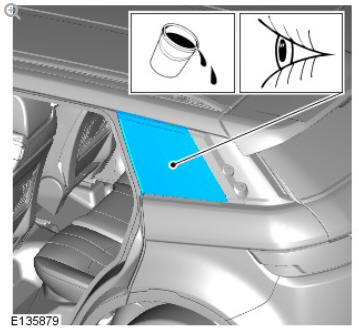

Prepare the window glass, window glass flange and trimmed PU adhesive in accordance with the instructions included with the PU adhesive kit.

Rear quarter window glass (G1805069) removal and installation

Rear quarter window glass (G1805069) removal and installation

Test the sealer for leaks, apply additional sealer if necessary. If water is used, allow sealer to dry before testing. Spray water around the glass and check for leaks. Mark any area that leaks. Dry the glass and sealer then apply additional sealer.

To install, reverse the removal procedure.

Specifications

Torque Specifications

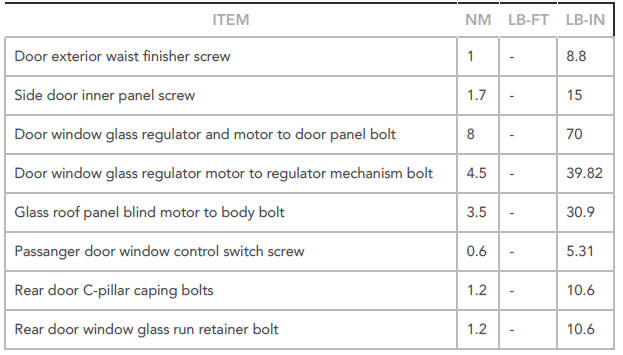

Torque Specifications
