Land Rover Discovery: Rear Door Window Regulator and Motor (G1805068) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Glass, Frames and Mechanisms / Rear Door Window
Regulator and Motor (G1805068)
/ Removal and Installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Rear Door Trim Panel (501-05, Removal and Installation).

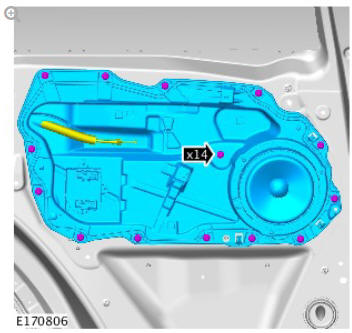

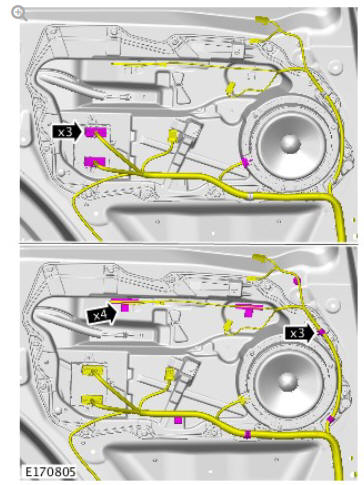

.20.jpg)
.21.jpg)
.22.jpg)

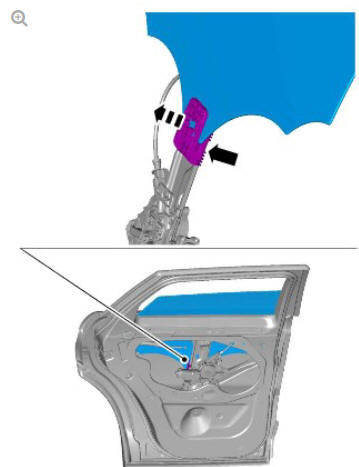

Release the clip.
NOTE:
Do not disassemble further if the component is removed for access only.

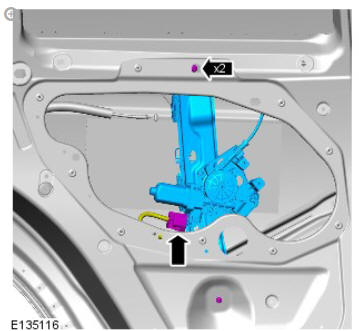

.23.jpg)
.24.jpg)

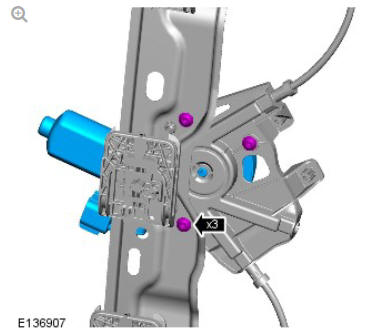

Torque: 4.5 Nm
INSTALLATION
To install, reverse the removal procedure.
