REMOVAL

Refer to: Rear Door Trim Panel (501-05, Removal and Installation).

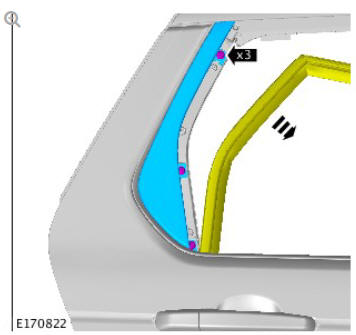

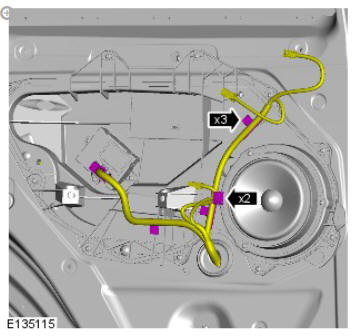

Rear door window glass (G1805067) removal and installation

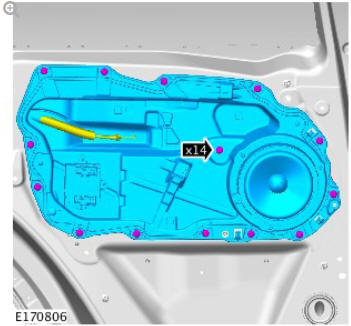

Rear door window glass (G1805067) removal and installation

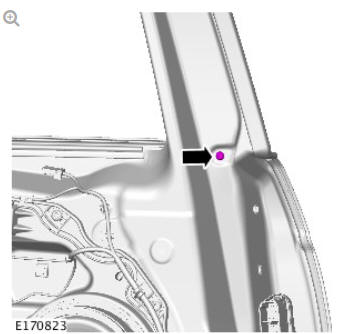

Rear door window glass (G1805067) removal and installation

Torque: 1.2 Nm

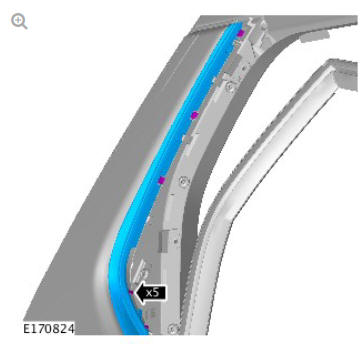

Rear door window glass (G1805067) removal and installation

Torque: 1.2 Nm

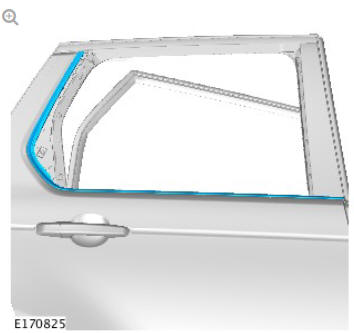

Rear door window glass (G1805067) removal and installation

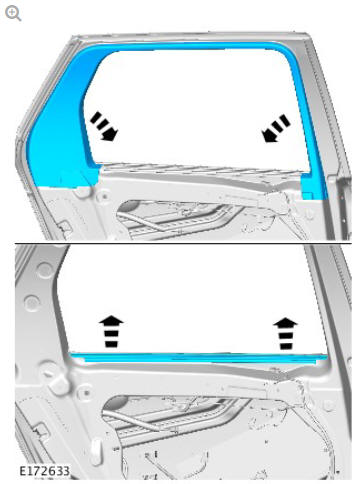

Rear door window glass (G1805067) removal and installation

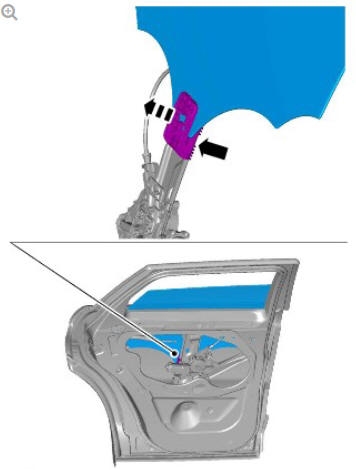

Rear door window glass (G1805067) removal and installation

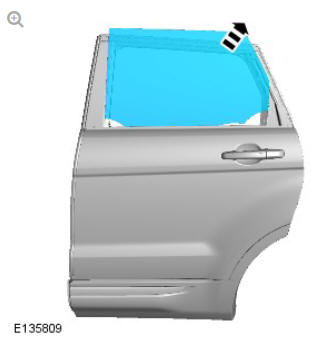

Rear door window glass (G1805067) removal and installation

Rear door window glass (G1805067) removal and installation

INSTALLATION

NOTE:

An audible click is heard when the clips are fully latched.

To install, reverse the removal procedure.
