Land Rover Discovery: Liftgate Window Glass (G1805065) - Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Glass, Frames and Mechanisms / Liftgate Window Glass (G1805065) / Removal and Installation / Liftgate Window Glass (G1805065) - Installation

Installation

CAUTION:

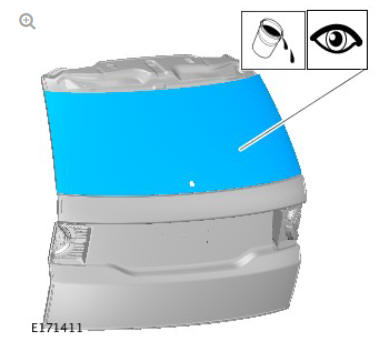

Make sure that the mating faces are clean and free of foreign material.

Liftgate window glass (G1805065) - Installation

NOTE:

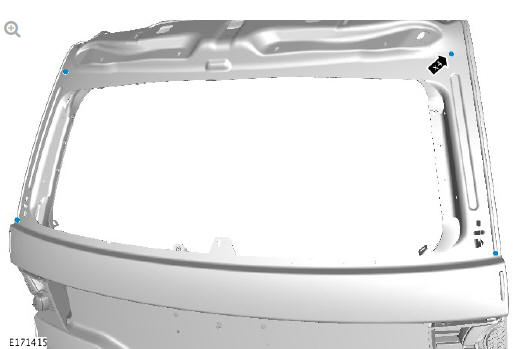

Install new spacers.

Liftgate window glass (G1805065) - Installation

NOTE:

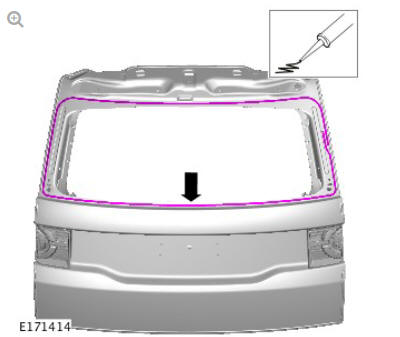

The tailgate is manufactured from aluminium. Make sure that appropriate bonding component is applied before the PU adhesive.

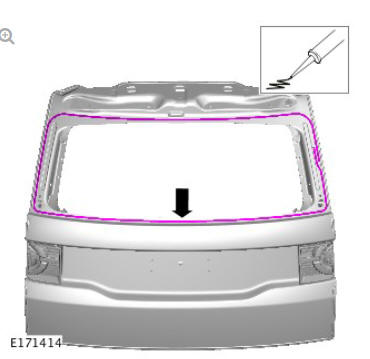

Liftgate window glass (G1805065) - Installation

Liftgate window glass (G1805065) - Installation

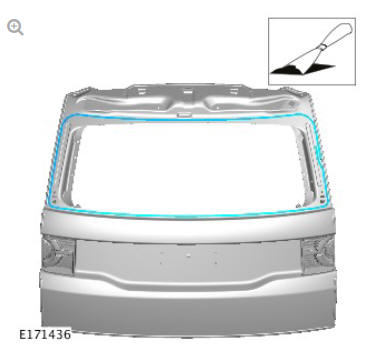

Prepare the window glass, window glass flange and trimmed PU adhesive in accordance with the instructions included with the PU adhesive kit.

NOTE:

This step requires the aid of another technician

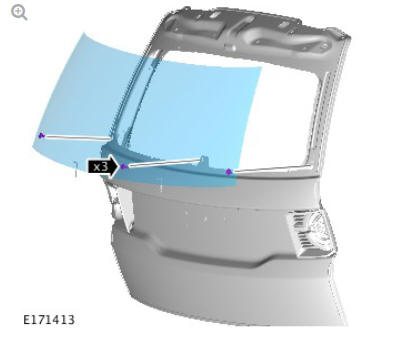

Liftgate window glass (G1805065) - Installation

Liftgate window glass (G1805065) - Installation

Test the sealer for leaks, apply additional sealer if necessary. If water is used, allow sealer to dry before testing. Spray water around the glass and check for leaks. Mark any area that leaks. Dry the glass and sealer then apply additional sealer.

To install, reverse the removal procedure.

Passenger door window control switch (G1805066) removal and installation

REMOVAL

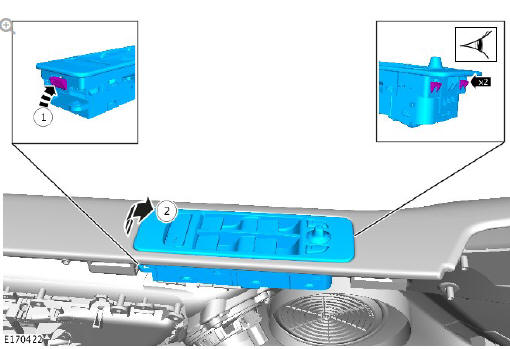

Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Passenger door window control switch (G1805066) removal and installation

Left shown, right similar.

INSTALLATION

  1. To install, reverse the removal procedure.
