Land Rover Discovery: Door Lock Cylinder (G1348139) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Handles, Locks, Latches and Entry Systems / Door Lock Cylinder (G1348139) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • This procedure is for removal and installation of the door lock cylinder only. The ignition lock and door lock cylinders are replaced in sets.

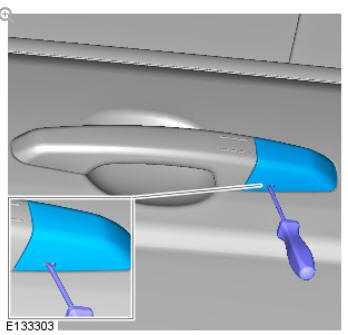

Door lock cylinder (G1348139) removal and installation

NOTE:

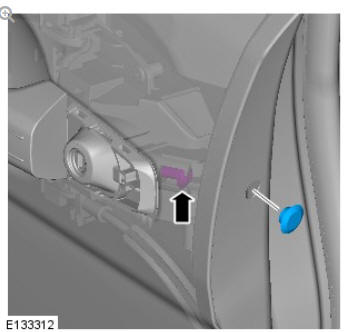

Loosen the bolt, but do not fully remove.

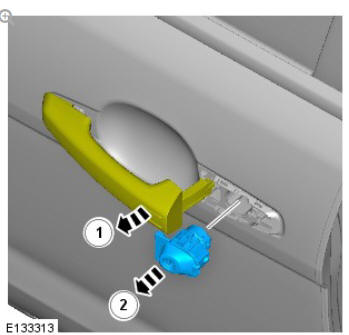

Door lock cylinder (G1348139) removal and installation

Torque: 4.1 Nm

Door lock cylinder (G1348139) removal and installation

INSTALLATION

To install, reverse the removal procedure.
