Land Rover Discovery: Exterior Front Door Handle (G1794532) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Handles, Locks, Latches and Entry Systems / Exterior Front Door Handle (G1794532) / Removal and Installation

REMOVAL

CAUTION:

Protect the surrounding paintwork to avoid damage.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Make sure the door window glass is in the fully closed position.
  • LHD illustration shown, RHD is similar.

Refer to: Front Door Trim Panel (501-05, Removal and Installation).

WARNING:

To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.

Make the SRS system safe.

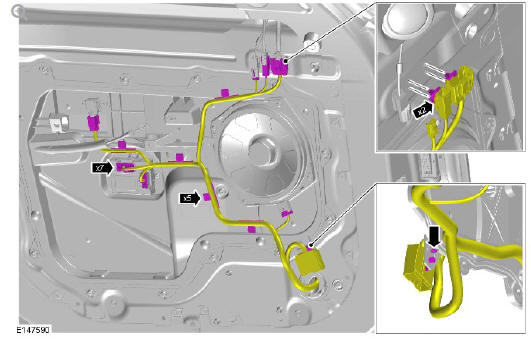

Exterior front door handle (G1794532) removal and installation

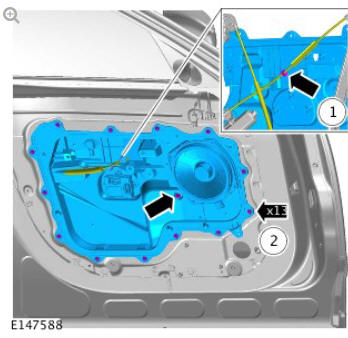

Exterior front door handle (G1794532) removal and installation

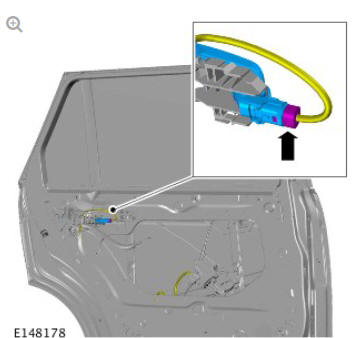

Exterior front door handle (G1794532) removal and installation

NOTE:

LH shown.

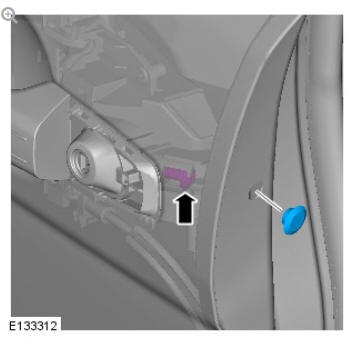

Exterior front door handle (G1794532) removal and installation

NOTES:

  • Loosen the bolt, but do not fully remove.
  • LH shown.

Exterior front door handle (G1794532) removal and installation

Torque: 4.1 Nm

NOTE:

LH shown.

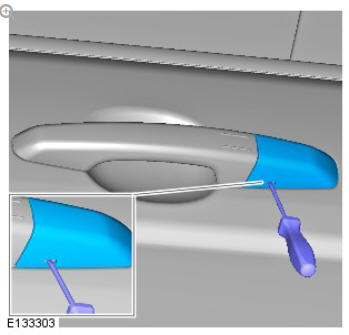

Exterior front door handle (G1794532) removal and installation

NOTE:

LH shown.

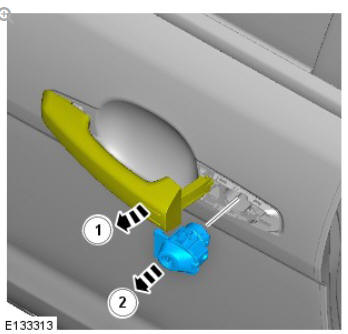

Exterior front door handle (G1794532) removal and installation

NOTE:

RH Shown.

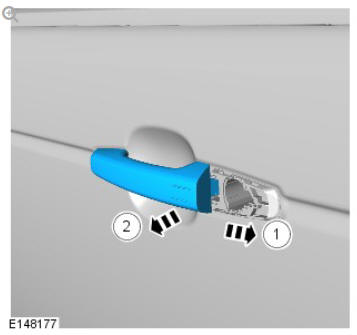

Exterior front door handle (G1794532) removal and installation

NOTE:

RH Shown

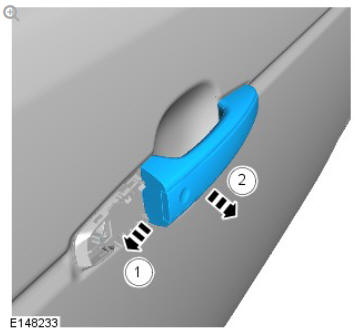

Exterior front door handle (G1794532) removal and installation

INSTALLATION

To install reverse the removal procedure.

NOTE:

LH shown.

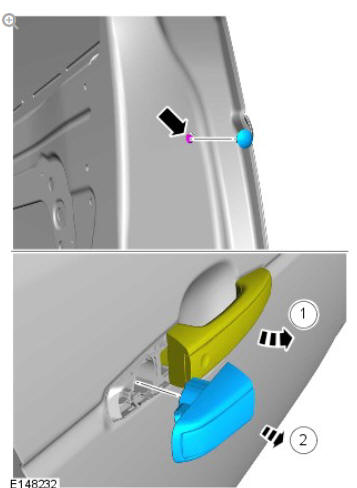

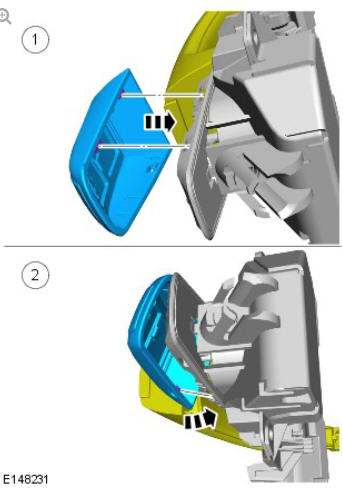

Exterior front door handle (G1794532) removal and installation

Install the door lock cover.
