Land Rover Discovery: Front Door Latch (G1791773) / Removal and Installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
Refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
WARNING:
To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
Make the SRS system safe.

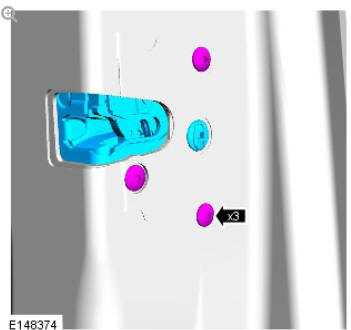

.61.jpg)
Torque: 7 Nm

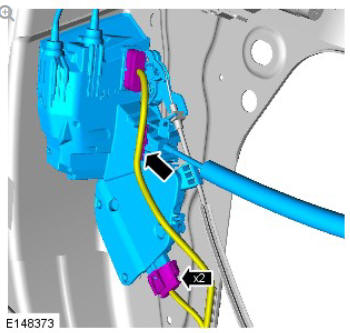

.62.jpg)

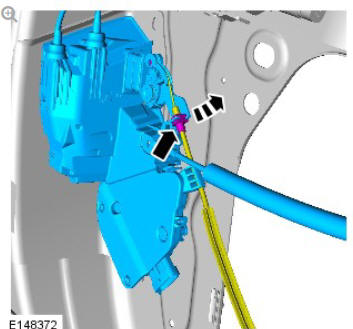

.63.jpg)
.64.jpg)

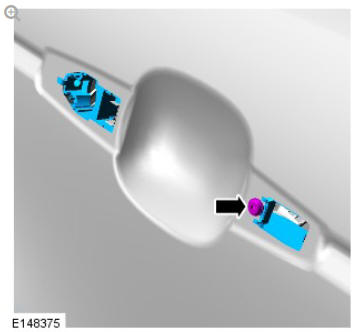

Torque: 3.2 Nm

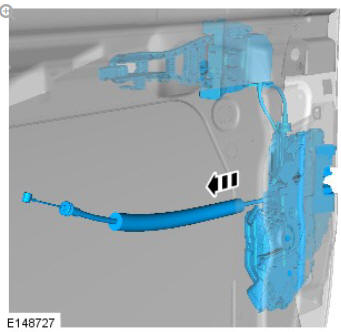

.65.jpg)

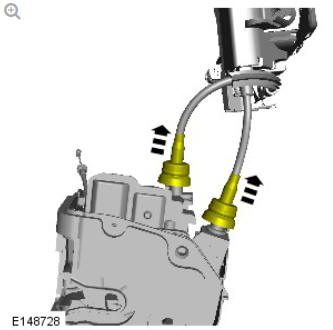

.66.jpg)
CAUTION:
Inspect the component, replace if damaged.
NOTE:
Care should be taken when removing water cover to allow for a secure fit during installation.

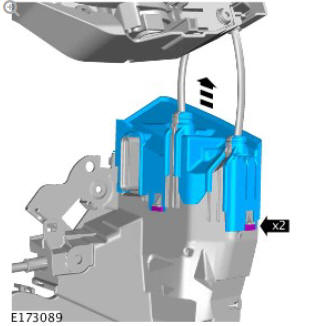

.67.jpg)
CAUTION:
Inspect the component, replace if damaged.
NOTE:
Care should be taken when removing water cover to allow for a secure fit during installation.

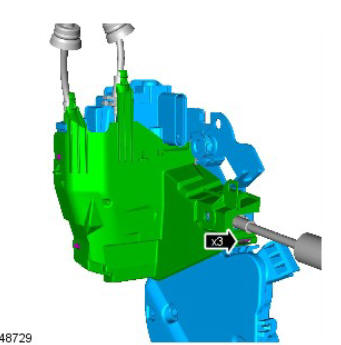

.68.jpg)

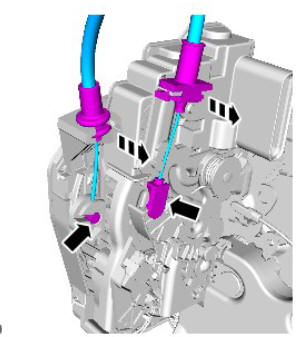

.69.jpg)

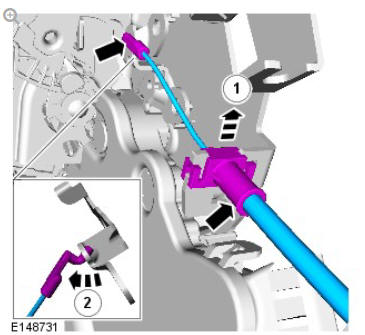

.70.jpg)
INSTALLATION
To install, reverse the removal procedure.
