REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Make sure the door window glass is in the fully closed position.

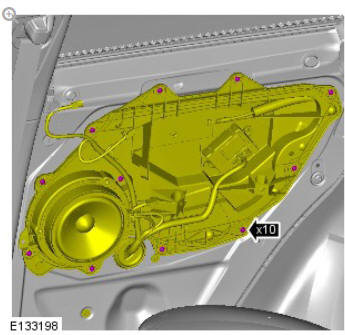

Refer to: Rear Door Trim Panel (501-05, Removal and Installation).

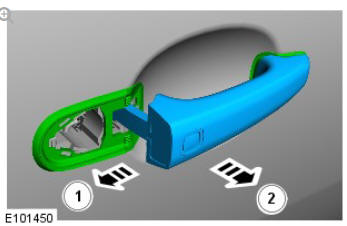

Exterior rear door handle (G1794533) removal and installation

Torque: 1.7 Nm

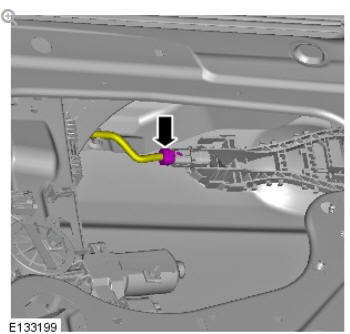

Exterior rear door handle (G1794533) removal and installation

NOTE:

Loosen the bolt, but do not fully remove.

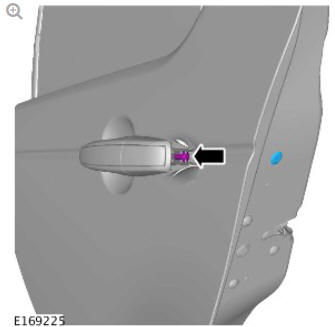

Exterior rear door handle (G1794533) removal and installation

Torque: 4.1 Nm

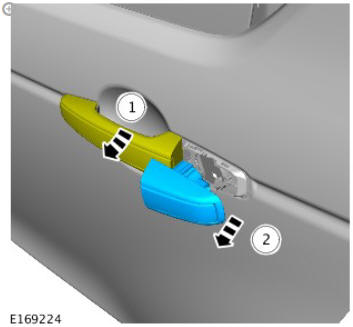

Exterior rear door handle (G1794533) removal and installation

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

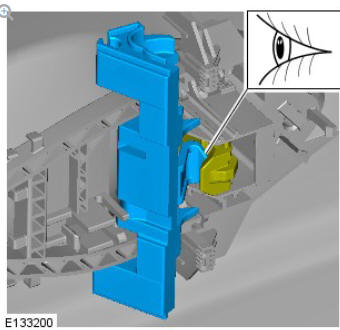

Exterior rear door handle (G1794533) removal and installation

INSTALLATION

Exterior rear door handle (G1794533) removal and installation

To install, reverse the removal procedure.
