Land Rover Discovery: Horn (G1774485) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Horn (G1774485) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

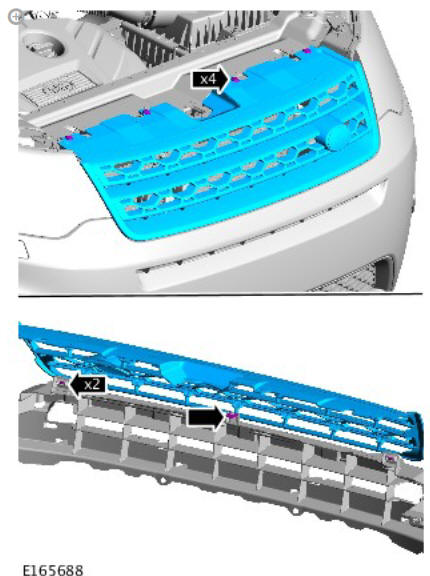

Horn (G1774485) / Removal and Installation

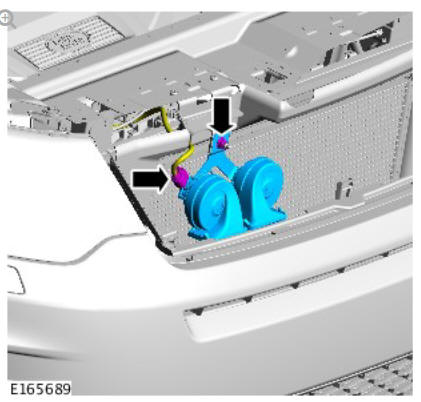

Horn (G1774485) / Removal and Installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.

Horn specifications

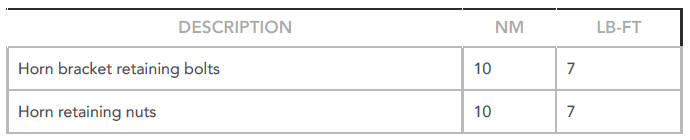

Torque Specifications

Horn specifications
