Land Rover Discovery: Information and Message Center Head up Display Control

Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Information and Message Center Head up Display Control

Information and message center head up display control module (G1780342) removal and installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

  1. Disconnect the battery ground cable.

    Refer to: Specifications (414-01, Specifications).

  2. Refer to: Instrument Panel Upper Section (501-12, Removal and Installation).

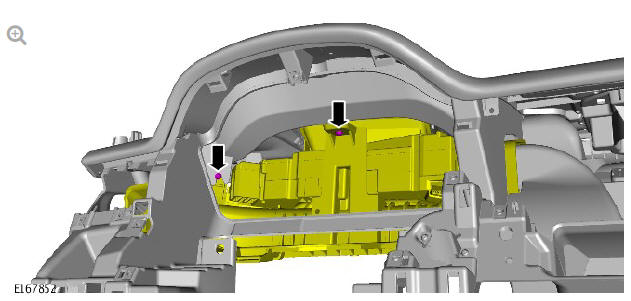

Information and message center head up display control module (G1780342) removal and installation

Torque: 1.5 Nm

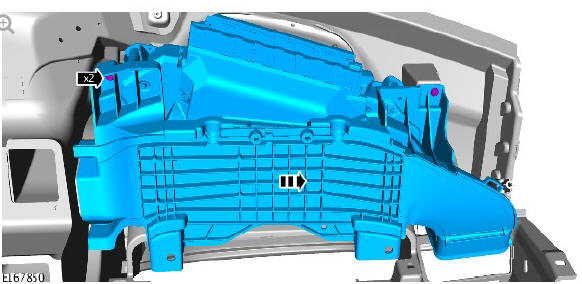

Information and message center head up display control module (G1780342) removal and installation

Torque: 1.5 Nm

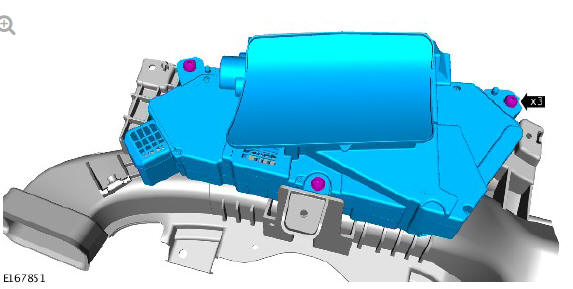

Information and message center head up display control module (G1780342) removal and installation

Torque: 5 Nm

INSTALLATION

  1. To install, reverse the removal procedure.

Information and message center head up display cooling fan control module (G1780343) removal and installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

  1. Make the SRS system safe.

    Refer to: Standard Workshop Practices (100-00, Description and Operation).

  2. Refer to: Driver Lower Air Bag Module (501-20B, Removal and Installation).

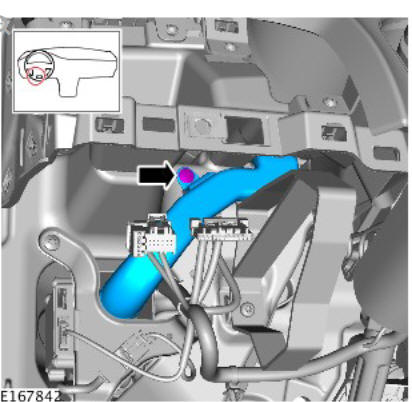

Information and message center head up display cooling fan control module (G1780343) removal and installation

Information and message center head up display cooling fan control module (G1780343) removal and installation

Torque: 1.5 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

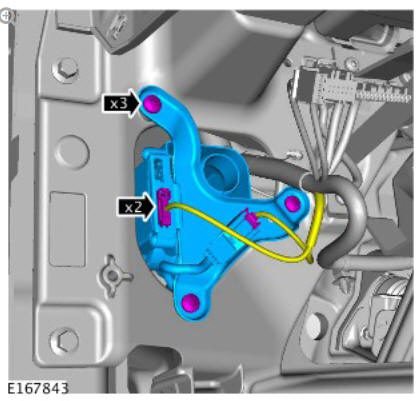

Information and message center head up display cooling fan control module (G1780343) removal and installation

Torque: 1.5 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component is to be installed, configure using Land Rover approved diagnostic equipment.

Information and message center head up display cooling fan motor (G1780344) removal and installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

  1. Make the SRS system safe.

    Refer to: Standard Workshop Practices (100-00, Description and Operation).

  2. Refer to: Driver Lower Air Bag Module (501-20B, Removal and Installation).

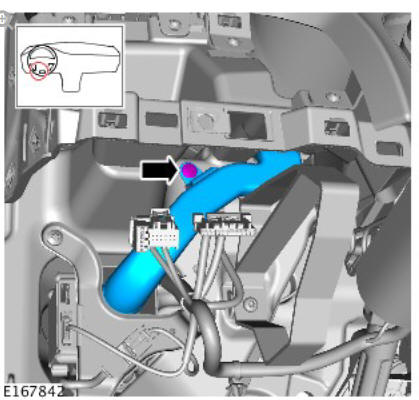

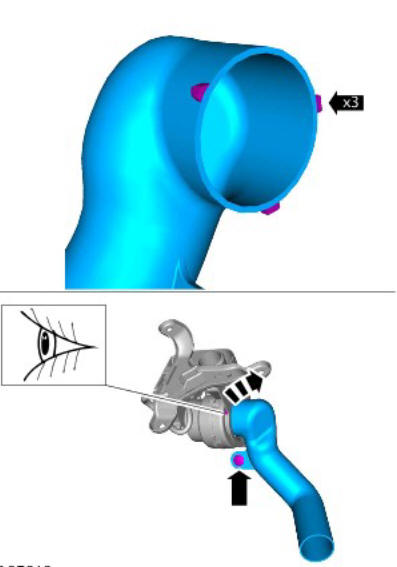

Information and message center head up display cooling fan motor (G1780344) removal and installation

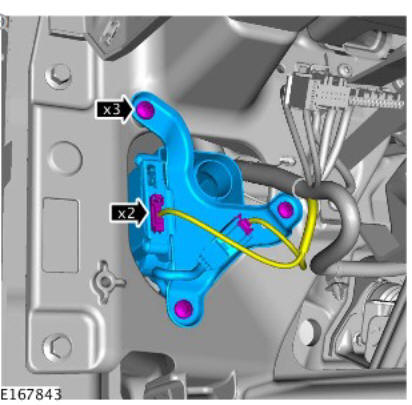

Information and message center head up display cooling fan motor (G1780344) removal and installation

Torque: 1.5 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

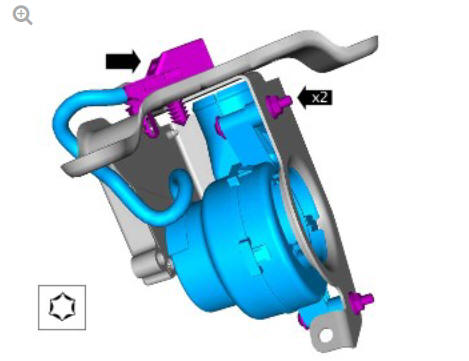

Information and message center head up display cooling fan motor (G1780344) removal and installation

Information and message center head up display cooling fan motor (G1780344) removal and installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
