Land Rover Discovery: Steering Column Diagnosis and Testing - Pinpoint tests
Pinpoint tests
NOTE:
The steering wheel heater will not operate if the engine is not running.

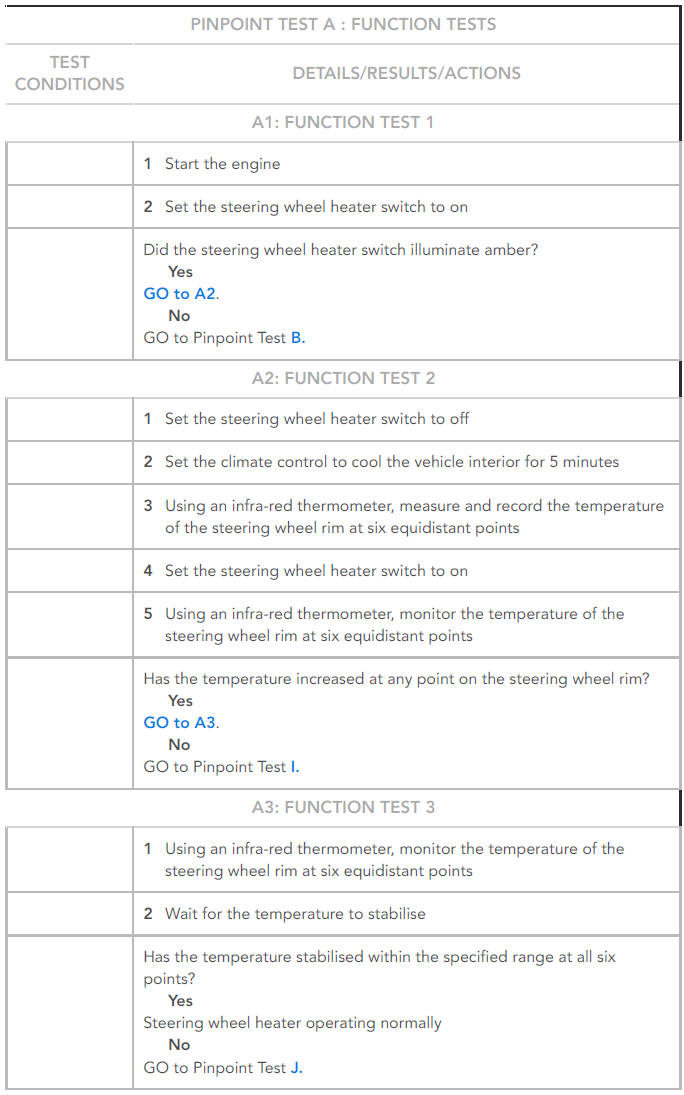

NOTES:
- An infra-red thermometer is used during this test.
- The steering wheel temperature should have increased by approximately 10ºC after 5 minutes.
- Do not measure the steering wheel temperature at the seam in the in the leather; this is where the heater element starts and finishes and will produce inaccurate test results.
NOTES:
- An infra-red thermometer is used during this test.
- The steering wheel temperature should stabilise at 30ºC to 43ºC.

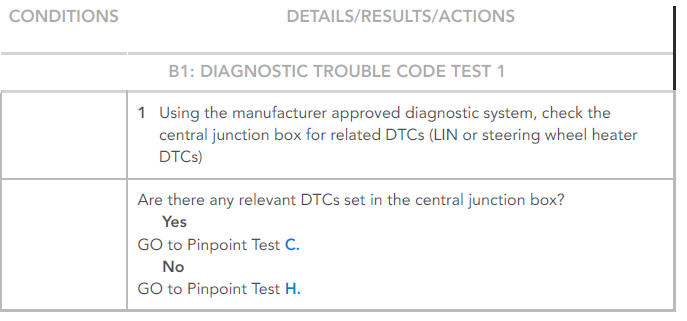

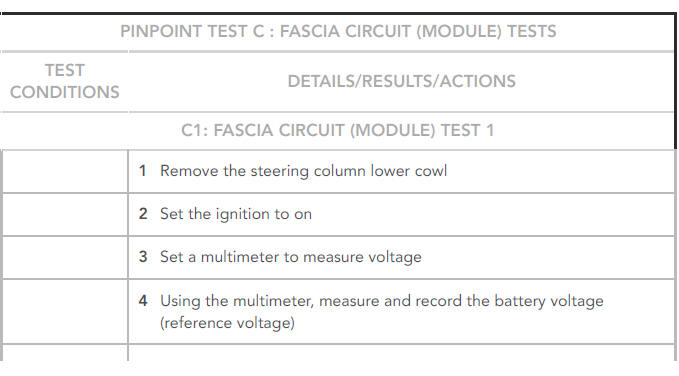

.jpg)

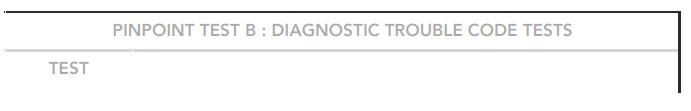

.jpg)

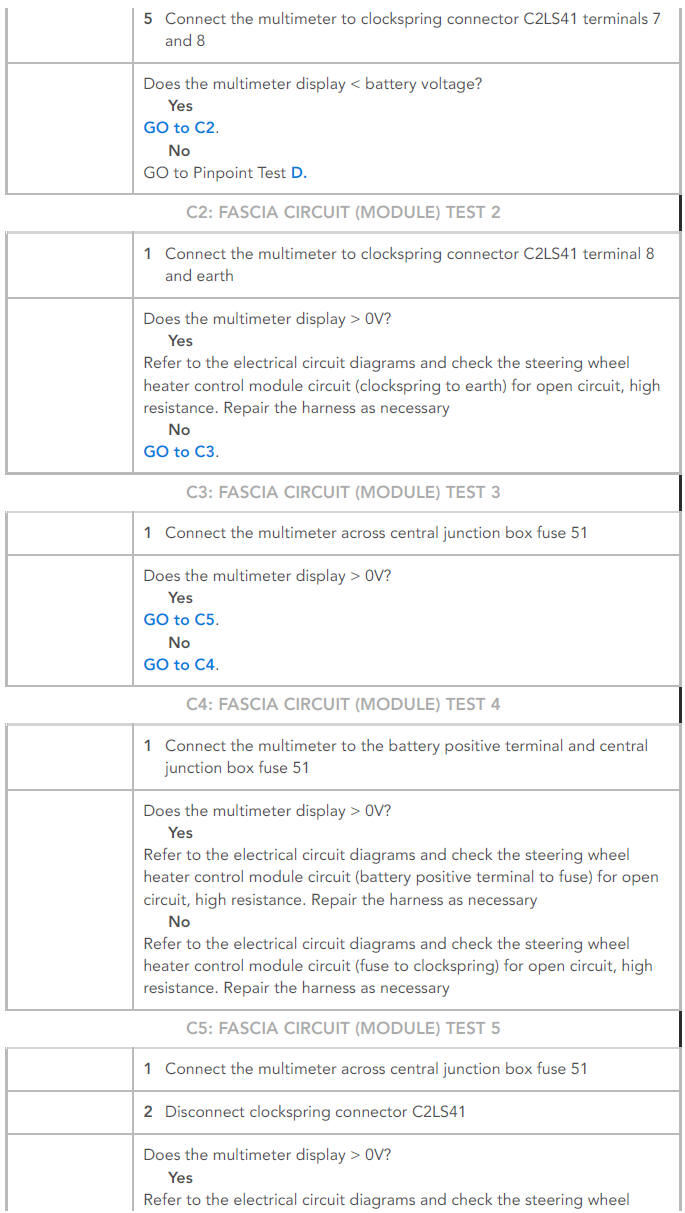

.jpg)
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.

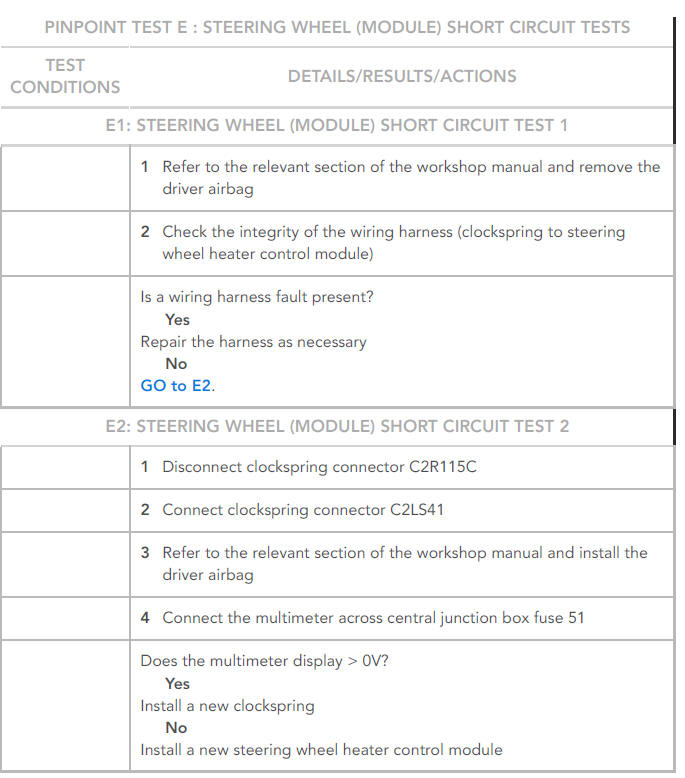

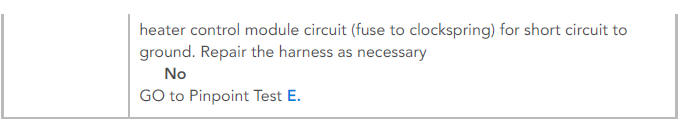

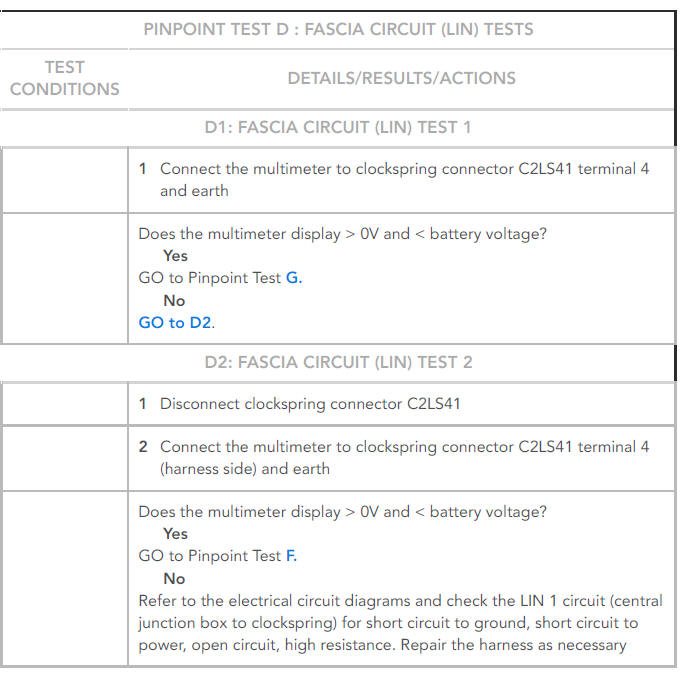

.jpg)

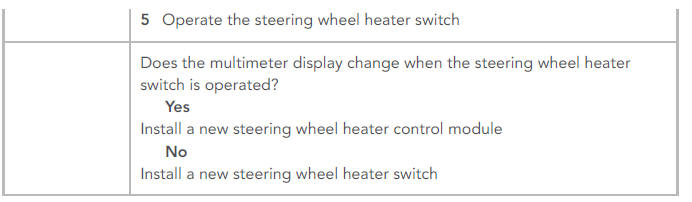

.jpg)

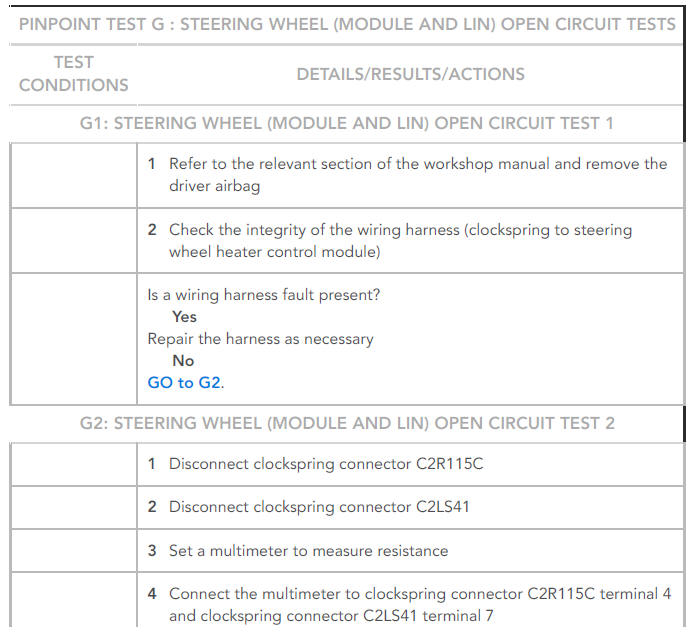

.jpg)
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.

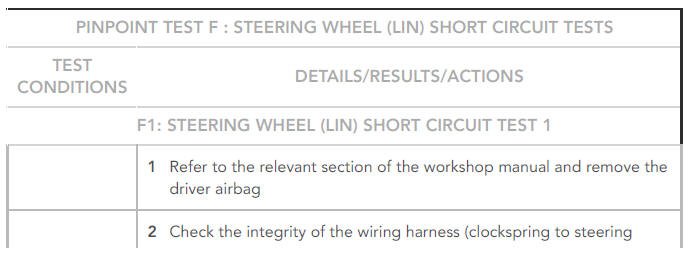

.jpg)
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.

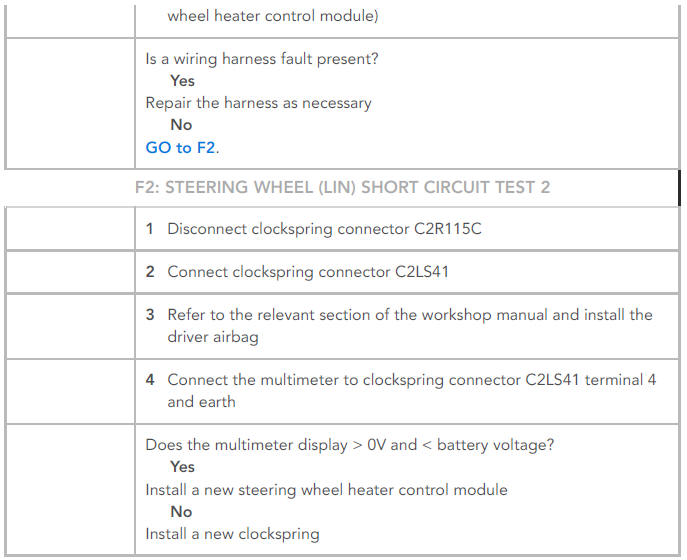

.jpg)
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
.jpg)
.jpg)
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
NOTE:
Rotate the steering wheel during this test to check for an intermittent fault.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
NOTE:
Rotate the steering wheel during this test to check for an intermittent fault.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
NOTE:
Rotate the steering wheel during this test to check for an intermittent fault.

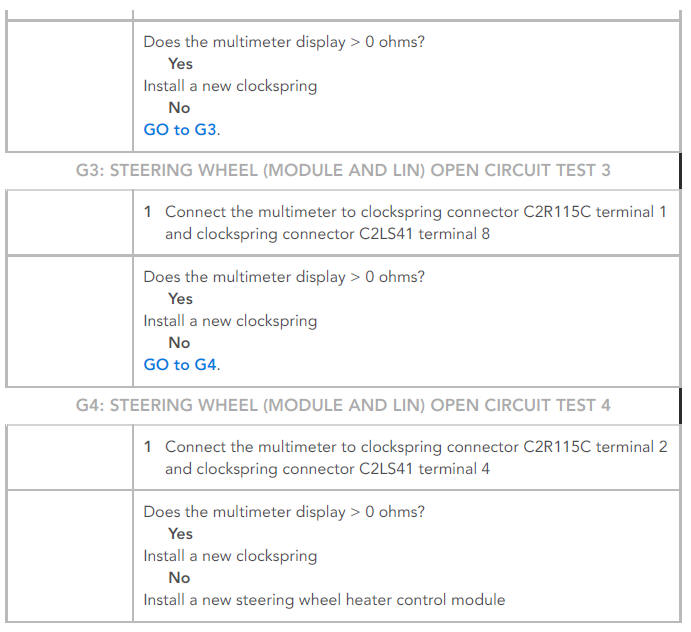

.jpg)
.jpg)

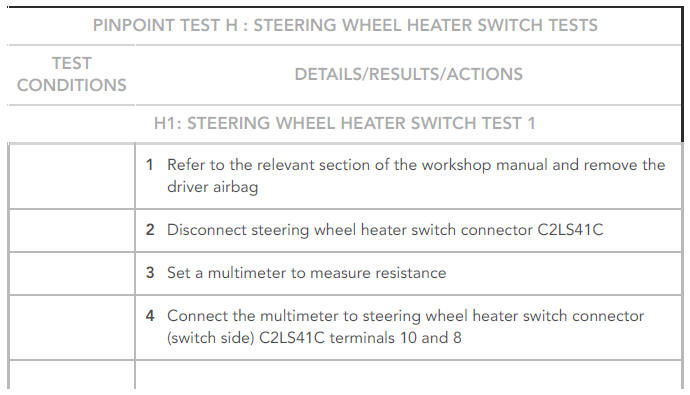

WARNING:
Do not probe or disconnect the airbag connector(s) during this test.

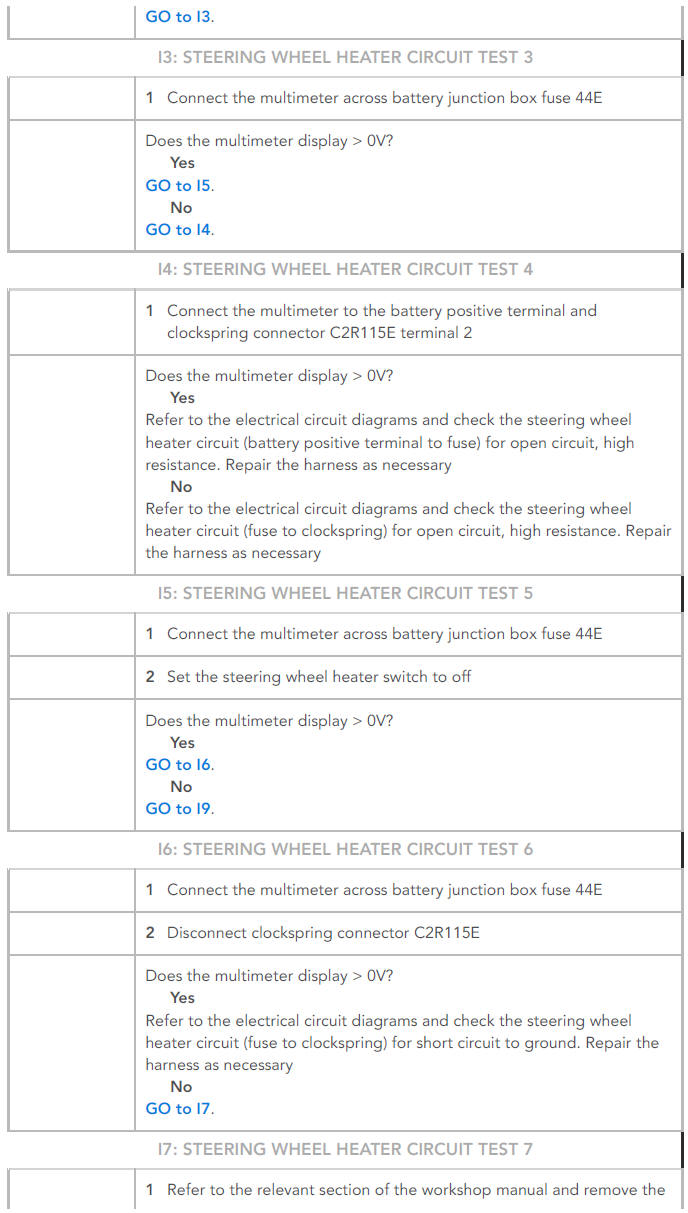

.jpg)
.jpg)

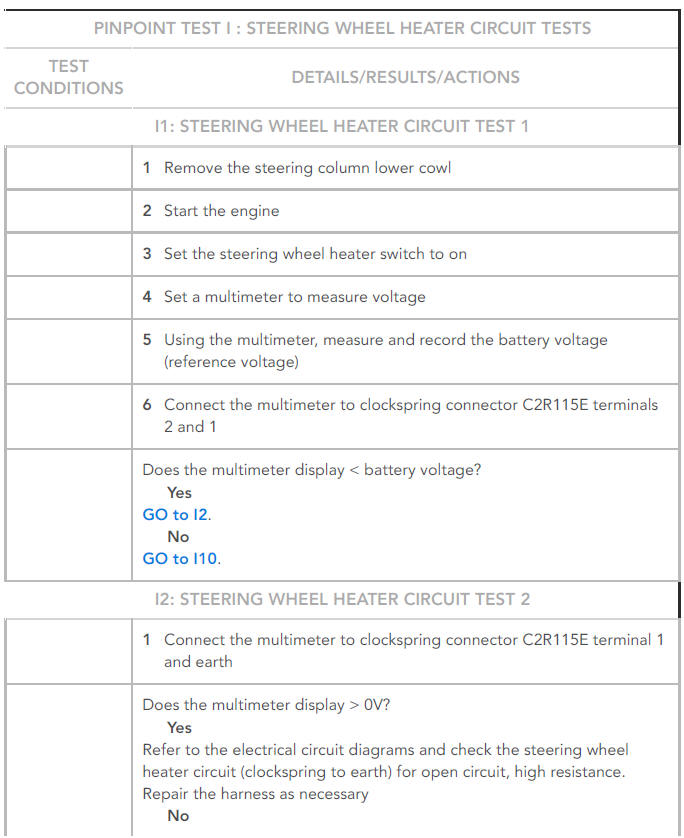

NOTE:
The steering wheel heater will not operate if the engine is not running.
NOTE:
The engine should still be running and the steering wheel heater set to on.
NOTE:
The engine should still be running and the steering wheel heater set to on.
NOTE:
The engine should still be running and the steering wheel heater set to on.
NOTE:
The engine should still be running and the steering wheel heater set to on.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
NOTE:
The engine should still be running and the steering wheel heater set to on.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
NOTE:
Rotate the steering wheel during this test to check for an intermittent fault.
WARNING:
Do not probe or disconnect the airbag connector(s) during this test.
NOTE:
Rotate the steering wheel during this test to check for an intermittent fault.

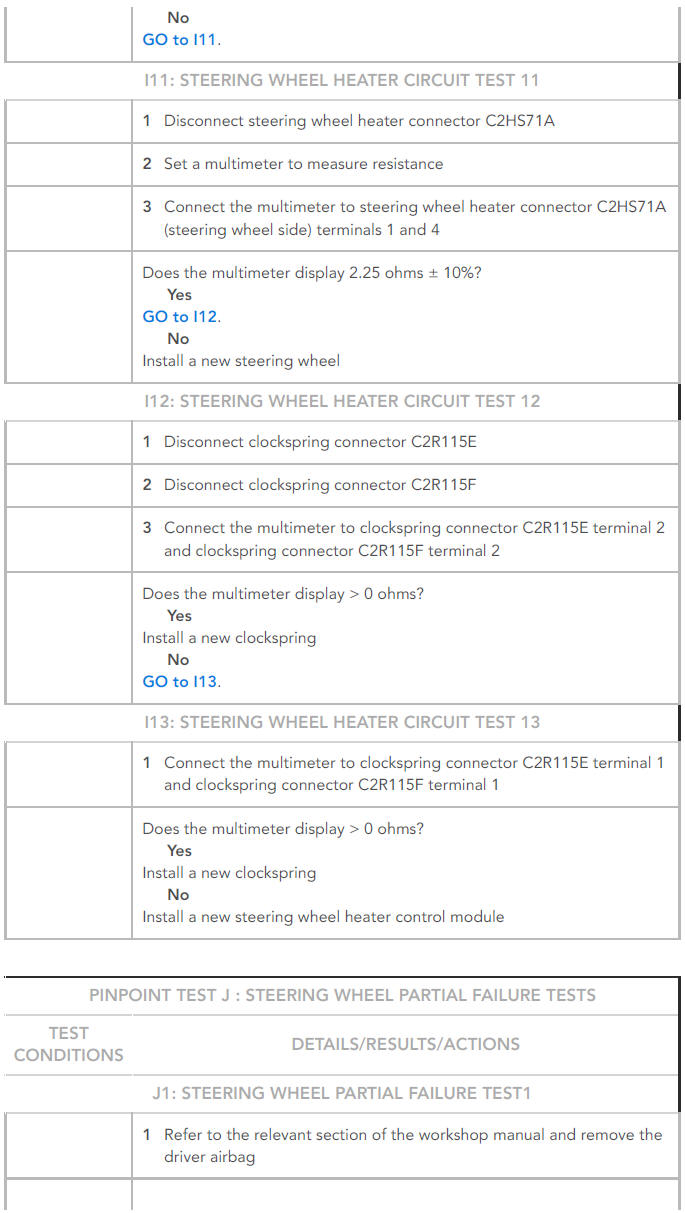

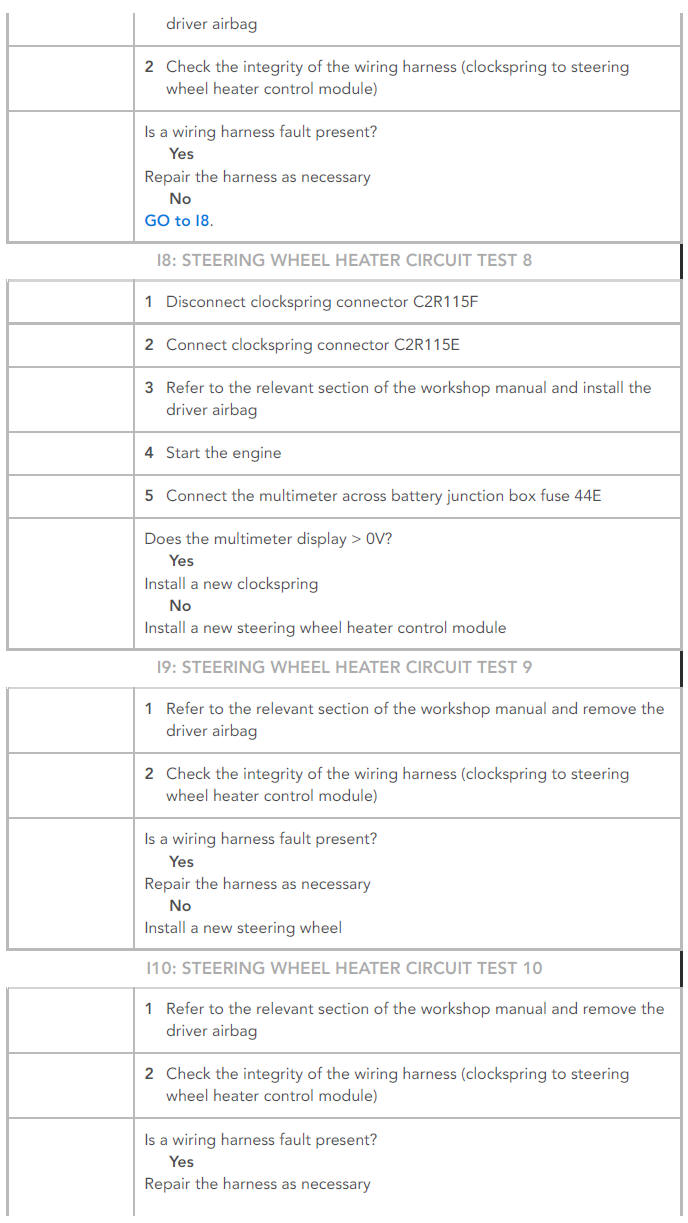

.jpg)

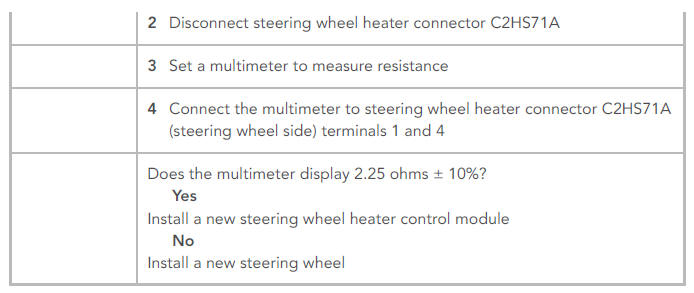

.jpg)
.jpg)
.jpg)
.jpg)
DTC INDEX
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.
REFER to: Diagnostic Trouble Code Index - DTC: Power Steering Control Module (100-00 General Information, Description and Operation).
Steering column specifications
General Specification
.jpg)

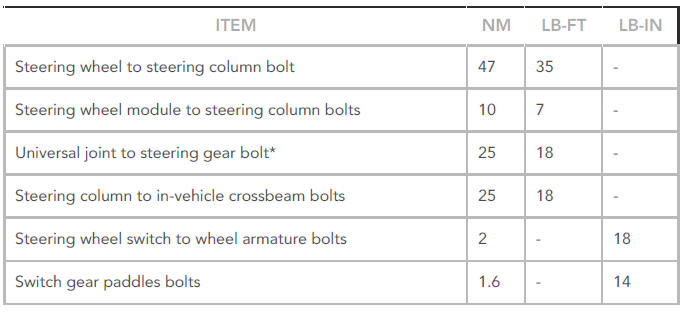

Torque Specifications
.jpg)
* New nuts/bolts must be fitted
Steering Column Diagnosis and
Testing - Inspection and verificationSteering Column Switches
Ignition Switch (G1774960)
/ Removal and Installation
