Land Rover Discovery: Steering Column Switches Ignition Switch (G1774960) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Steering-System / Steering Column Switches Ignition Switch (G1774960) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • The steering wheel is shown removed for clarity.
  • Left hand drive illustration(s) shown, Right hand drive is similar.

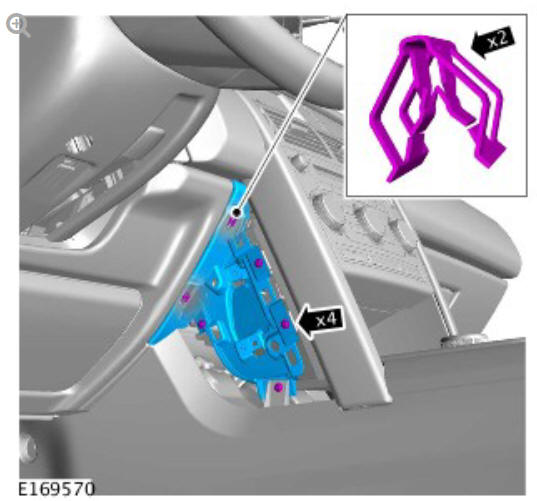

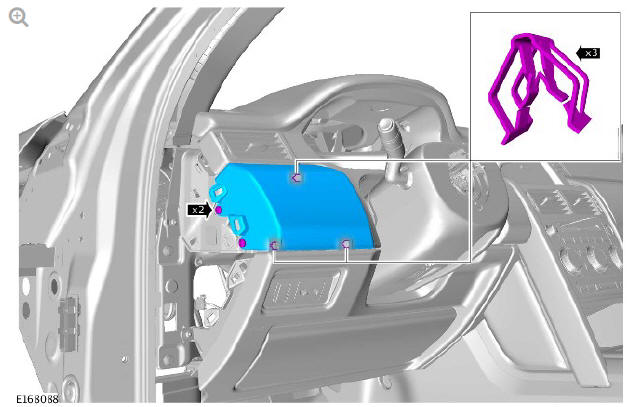

Steering column switches ignition switch (G1774960) removal and installation

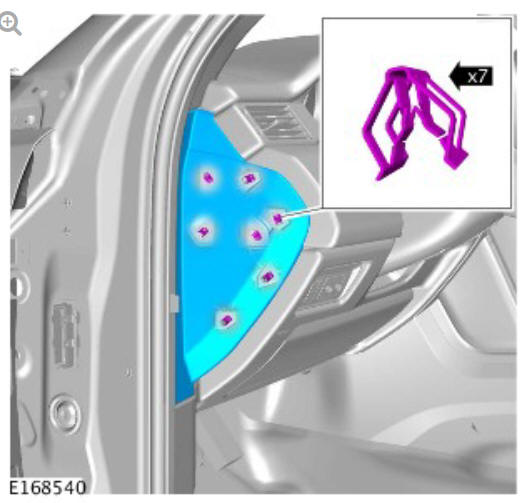

Steering column switches ignition switch (G1774960) removal and installation

Torque: 1.5 Nm

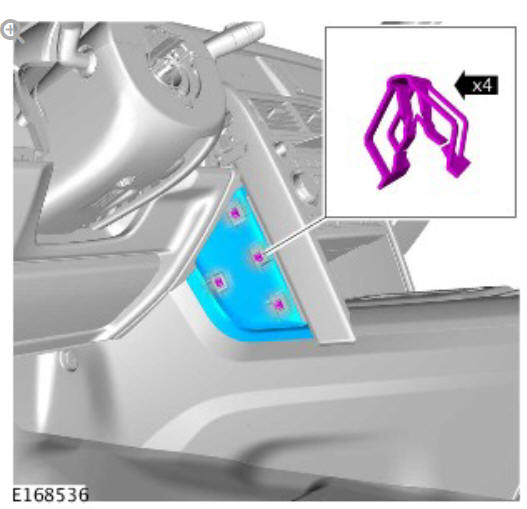

Steering column switches ignition switch (G1774960) removal and installation

Torque: 1.5 Nm

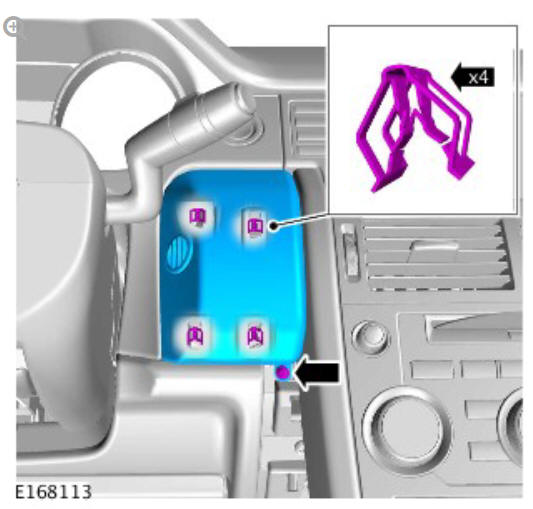

Steering column switches ignition switch (G1774960) removal and installation

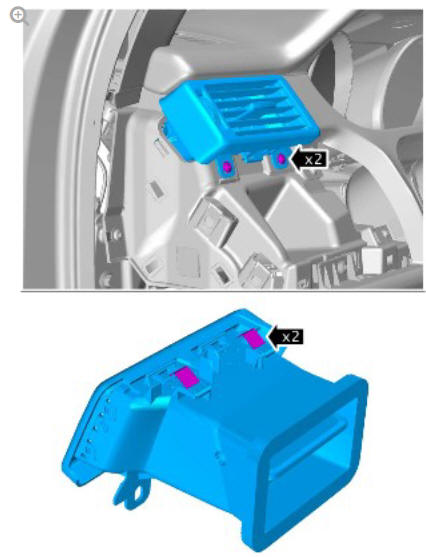

Steering column switches ignition switch (G1774960) removal and installation

Torque: 1.5 Nm

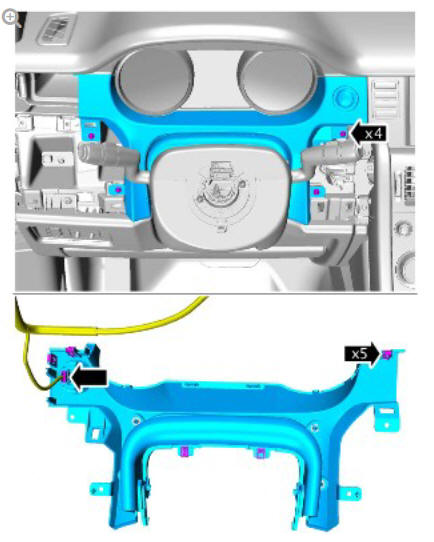

Steering column switches ignition switch (G1774960) removal and installation

Torque: 1.5 Nm

Steering column switches ignition switch (G1774960) removal and installation

Torque: 1.5 Nm

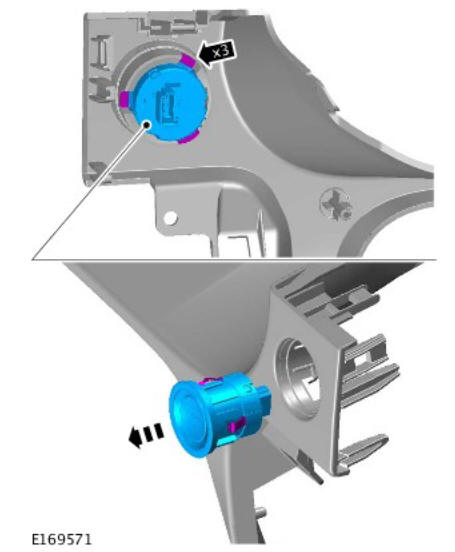

Steering column switches ignition switch (G1774960) removal and installation

INSTALLATION

To install, reverse the removal procedure.

Steering column switches steering column lock module (G1351136) removal and installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • The steering column lock module is retained with 2 patch locked, tamper proof bolts.

Refer to: Steering Column (211-04, Removal and Installation).

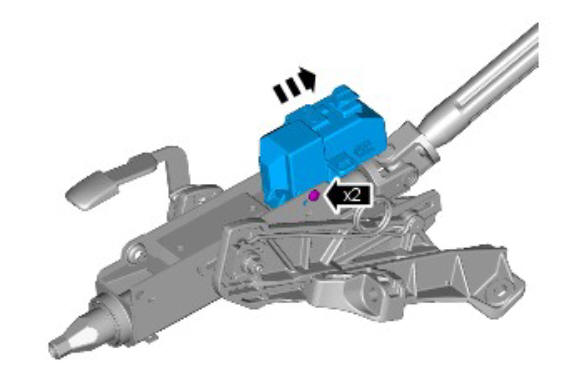

Steering column switches steering column lock module (G1351136) removal and installation

Using a suitable stud extraction tool, remove the tamper proof bolts.

INSTALLATION

CAUTION:

Tighten the new tamper proof bolts until the hexagon shears.

To install, reverse the removal procedure.

Using the Land Rover approved diagnostic system, calibrate a new module.

If a new component is installed, the soft lock stop reset routine should be completed on the power steering system, using the approved diagnostic tool.
