Land Rover Discovery: Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit
(G1779691)

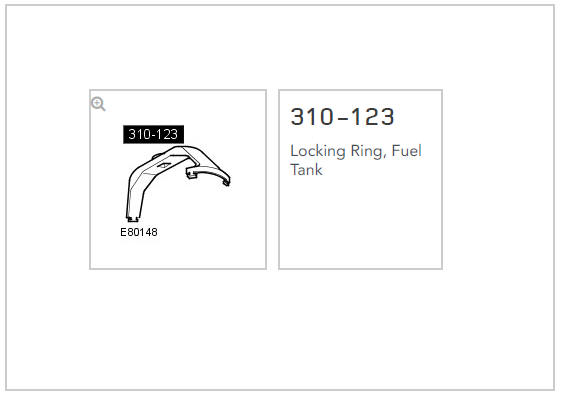

SPECIAL TOOL(S)
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index511(5).jpg)
REMOVAL
WARNINGS:
- After carrying out repairs, the fuel system must be checked
visually
for leaks. Failure to follow this instruction may result in personal
injury.
- This procedure involves fuel handling. Be prepared for fuel
spillage
at all times and always observe fuel handling precautions. Failure to
follow these instructions may result in personal injury.
- The spilling of fuel is unavoidable during this operation.
Ensure that
all necessary precautions are taken to prevent fire and explosion.
- Do not carry or operate cellular phones when working on or near
any fuel related components. Highly flammable vapors are always
present and may ignite. Failure to follow these instructions may
result in personal injury.
- If fuel contacts the eyes, flush the eyes with cold water or
eyewash
solution and seek immediate medical attention.
- Wash hands thoroughly after fuel handling, as prolonged contact
may cause irritation. Should irritation develop, seek medical
attention.
CAUTION:
Make sure the workshop area in which the vehicle is being worked on
is as clean and as dust free as possible. Foreign matter from work on
clutches, brakes or from machining or welding operations can
contaminate the fuel system and may result in later malfunction.
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
Refer to: Fuel System Pressure Release - GTDi 2.0L Petrol (310-00
Fuel System - General Information, General Procedures).
Refer to: Rear Seat (501-10 Seating, Removal and Installation).
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
Refer to: Fuel Tank Draining (310-00 Fuel System - General
Information, General Procedures).
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index512(4).jpg)

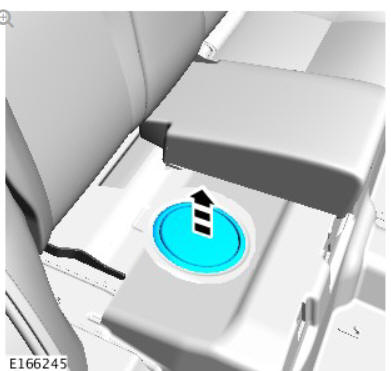

![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index513(4).jpg)
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index514(4).jpg)

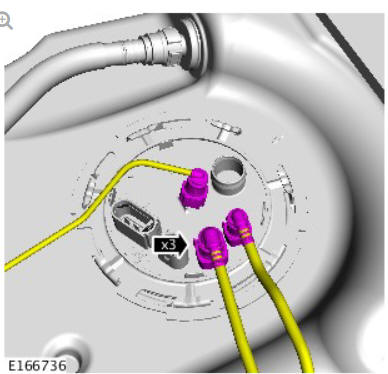

CAUTION:
Be prepared to collect escaping fuel.
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index515(4).jpg)
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index516(4).jpg)

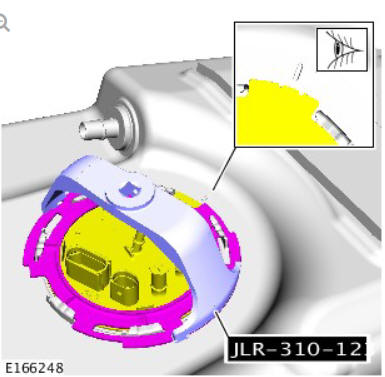

Special Tool(s): 310-123
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index517(4).jpg)

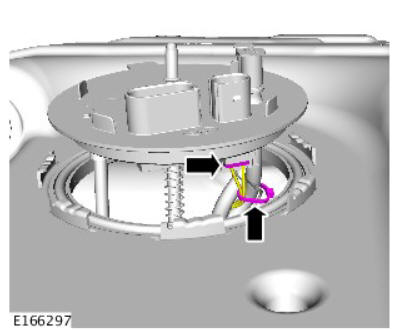

WARNING:
Be prepared to collect escaping fuel.
NOTE:
Note the orientation of the component prior to removal.
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index518(4).jpg)

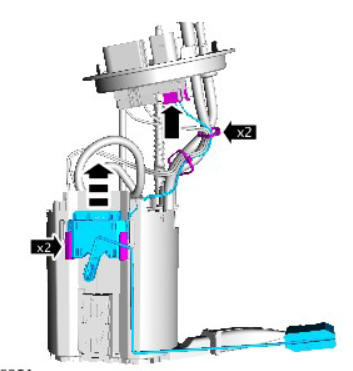

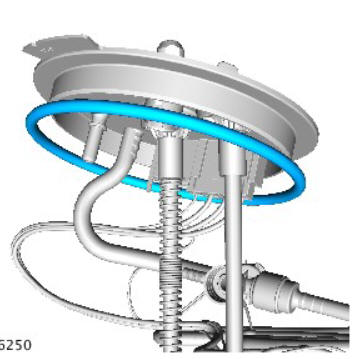

NOTES:
- Discard the O-ring seal.
- Do not disassemble further if the component is removed
for access only.
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index519(4).jpg)
![Fuel Tank and Lines - Ingenium i4 2.0l Diesel Fuel Pump and Sensor Unit (G1779691)](images/books/227/index520(4).jpg)
INSTALLATION
CAUTIONS:
- A new O-ring seal must be installed.
- Make sure the locking ring is correctly installed.
To install, reverse the removal procedure.
