Land Rover Discovery: Hydraulic Brake Actuation Brake Fluid Reservoir (G1785123) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Brake-System / Hydraulic Brake Actuation Brake Fluid Reservoir (G1785123) / Removal and Installation

REMOVAL

CAUTION:

If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

NOTE:

Removal steps in this procedure may contain installation details.

All vehicles

Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

Hydraulic brake actuation brake fluid reservoir (G1785123) removal and installation

Left-hand drive vehicles

Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

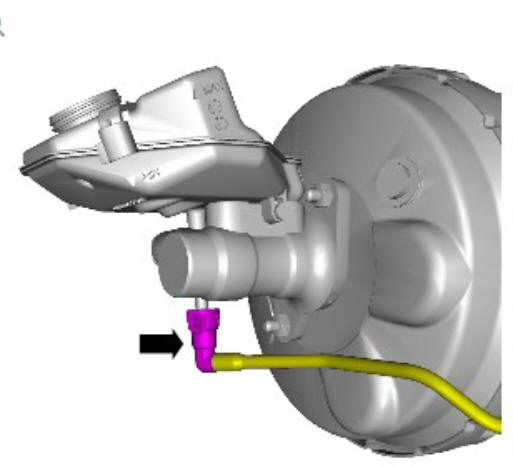

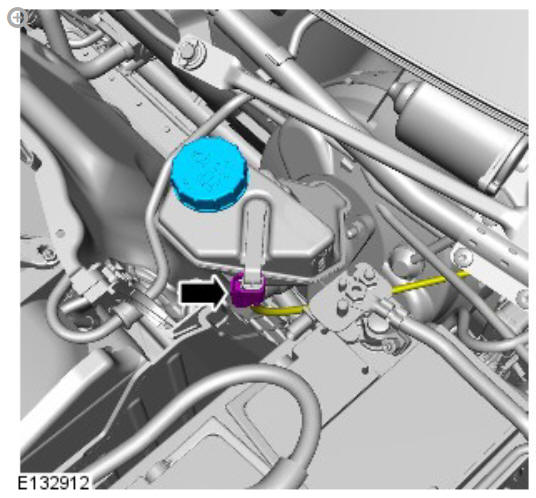

Vehicles with manual transmission

WARNING:

Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Hydraulic brake actuation brake fluid reservoir (G1785123) removal and installation

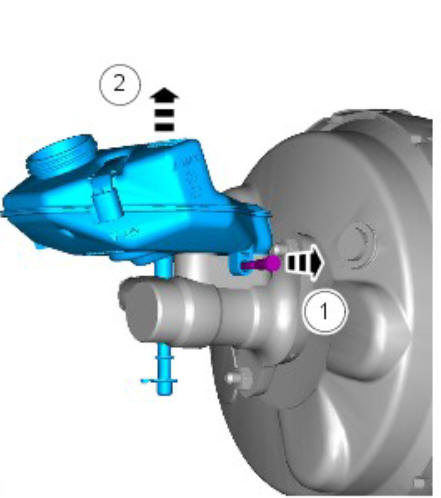

All vehicles

WARNING:

Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Hydraulic brake actuation brake fluid reservoir (G1785123) removal and installation

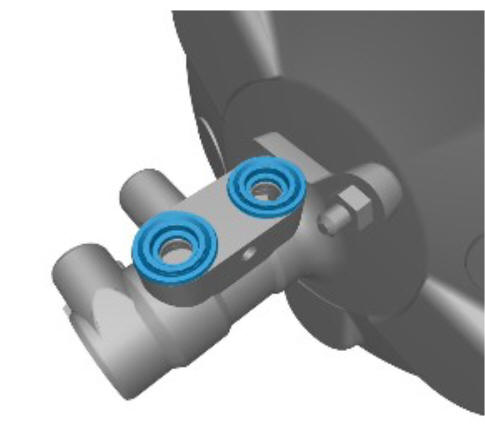

CAUTION:

Discard the seals.

NOTE:

Make sure that all openings are sealed. Use new blanking caps.

Hydraulic brake actuation brake fluid reservoir (G1785123) removal and installation

INSTALLATION

All vehicles

CAUTION:

Install the new seals.

To install, reverse the removal procedure.

Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).

Vehicles with manual transmission

Refer to: Clutch System Bleeding (308-00 Manual Transmission/Transaxle and Clutch - General Information, General Procedures).
