REMOVAL

WARNINGS:

  • Do not probe supplemental restraint system (SRS) electrical connectors.
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

NOTE:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.

1.Make the SRS system safe.

Refer to: Supplemental Restraint System Health and Safety Precautions (100-00 General Information, Description and Operation).

Disconnect the start up battery ground cable.

Refer to: Battery and Cables (414-01 Battery, Mounting and Cables, Description and Operation).

Raise and support the vehicle on a suitable 2 post lift.

Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Remove the front bumper.

Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

NOTE:

This step must be preformed to the components on both sides of the vehicle.

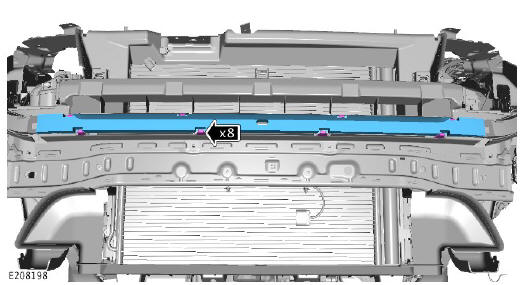

Pedestrian protection system pedestrian impact sensor (G2158916) removal and installation

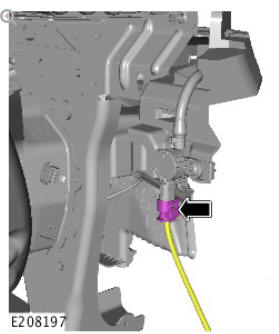

Pedestrian protection system pedestrian impact sensor (G2158916) removal and installation

NOTE:

This step must be preformed to the components on both sides of the vehicle.

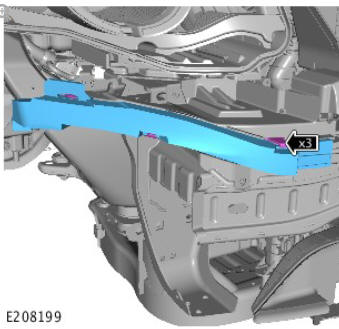

Pedestrian protection system pedestrian impact sensor (G2158916) removal and installation

NOTE:

This step must be preformed to the components on both sides of the vehicle.

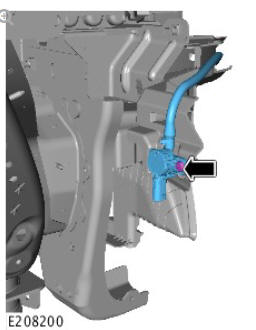

Pedestrian protection system pedestrian impact sensor (G2158916) removal and installation

Torque: 10 Nm

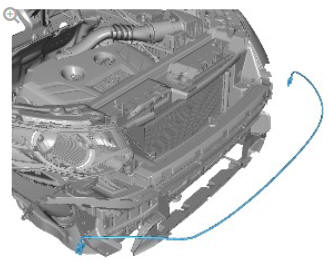

Pedestrian protection system pedestrian impact sensor (G2158916) removal and installation

INSTALLATION

To install, reverse the removal procedure.
