Glass roof panel blind (G1805063) - Removal

Refer to: A-Pillar Trim Panel (501-05, Removal and Installation).

Refer to: B-Pillar Upper Trim Panel (501-05, Removal and Installation).

Refer to: C-Pillar Upper Trim Panel (501-05, Removal and Installation).

Refer to: D-Pillar Trim Panel (501-05, Removal and Installation).

Refer to: Overhead Console (501-12, Removal and Installation).

Refer to: Interior Rear View Mirror (501-09, Removal and Installation).

NOTE:

Note the orientation of the seal prior to detaching.

Glass roof panel blind (G1805063) - Removal

NOTE:

The step must be carried out on both sides.

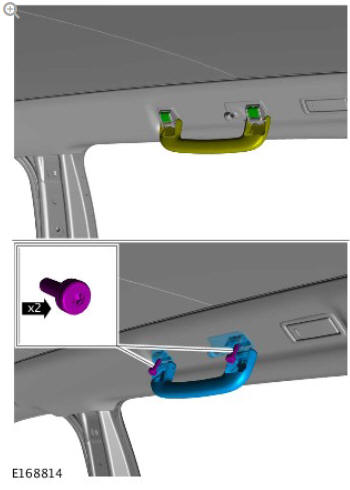

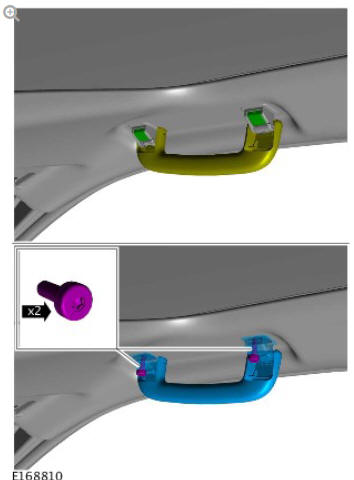

Glass roof panel blind (G1805063) - Removal

Torque: 6 Nm

NOTE:

The step must be carried out on both sides.

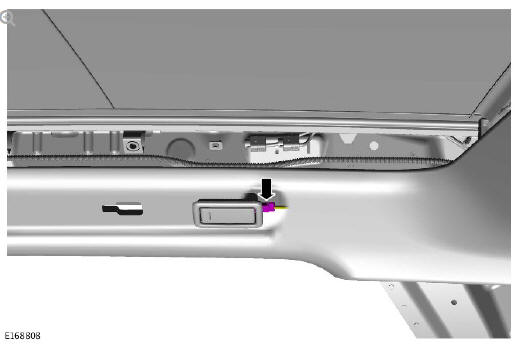

Glass roof panel blind (G1805063) - Removal

Torque: 6 Nm

NOTE:

The step must be carried out on both sides.

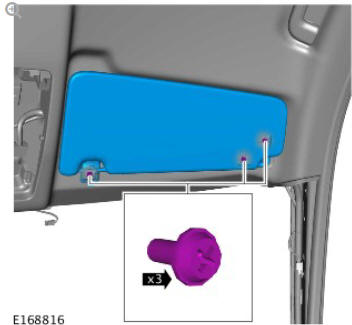

Glass roof panel blind (G1805063) - Removal

Torque: 6 Nm

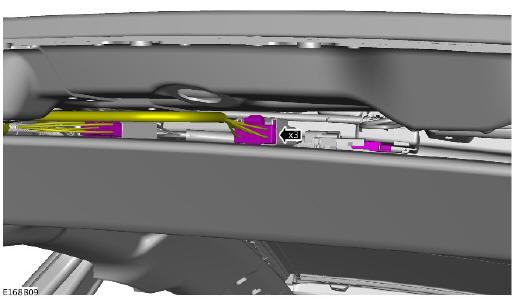

CAUTION:

LH illustration shown, RH is similar.

NOTE:

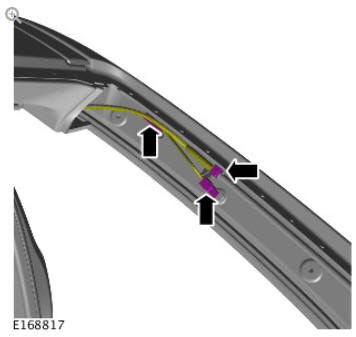

Position cloth to collect fluid spillage.

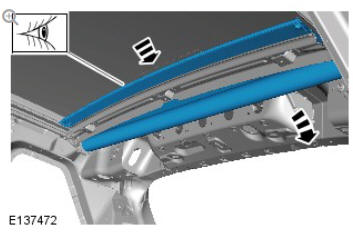

Glass roof panel blind (G1805063) - Removal

NOTE:

RH illustration shown, LH is similar.

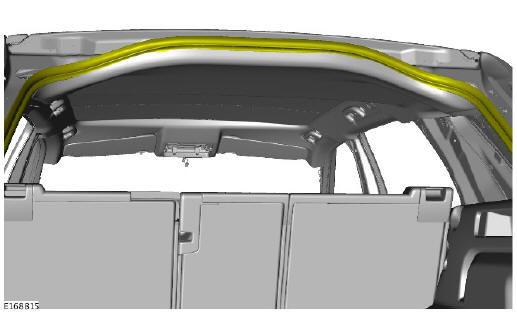

Glass roof panel blind (G1805063) - Removal

CAUTION:

Take extra care not to damage the component.

Glass roof panel blind (G1805063) - Removal

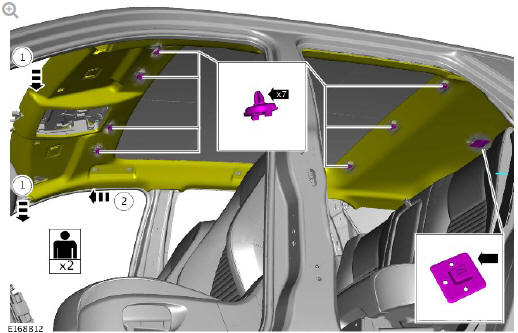

CAUTIONS:

  • Take extra care not to damage the component.
  • Using a suitable plastic trim tool, release the magnetic fixings.

NOTES:

  • Discard the retaining clips.
  • Make sure that there is at least 50mm clearance between the magnetic fixings and the headliner during the removal procedure. The fixings will engage if too close to each other.

Glass roof panel blind (G1805063) - Removal

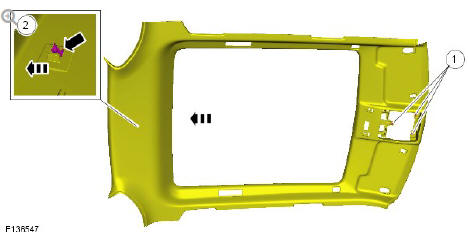

  • Lower the headliner for access.

NOTES:

  • Headliner shown removed for clarity.
  • This step requires the aid of another technician.

Glass roof panel blind (G1805063) - Removal

  • Lower the headliner for access.

Glass roof panel blind (G1805063) - Removal

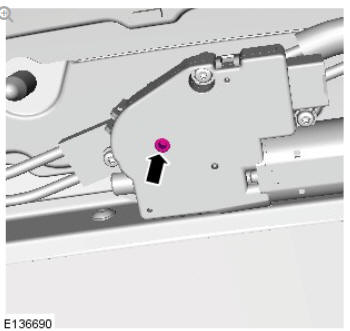

Using a suitable tool, rotate the opening roof panel blind motor to adjust the blind.

Glass roof panel blind (G1805063) - Removal

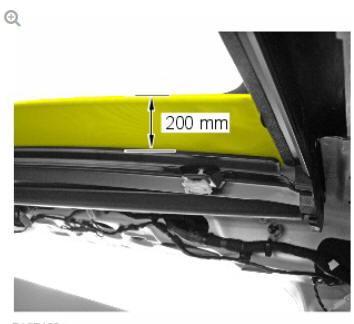

Position the glass roof panel blind 200mm from the rear bracket.

CAUTION:

Make sure that extreme cleanliness is observed with the following steps.

NOTE:

The step must be carried out on both sides.

Glass roof panel blind (G1805063) - Removal

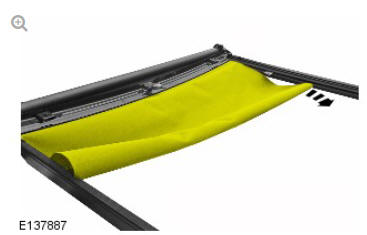

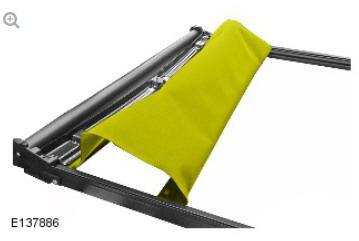

Position the glass roof panel blind fabric to one side to access the retaining tangs on the feet.

Glass roof panel blind (G1805063) - Removal

NOTE:

The step must be carried out on both sides.

Glass roof panel blind (G1805063) - Removal

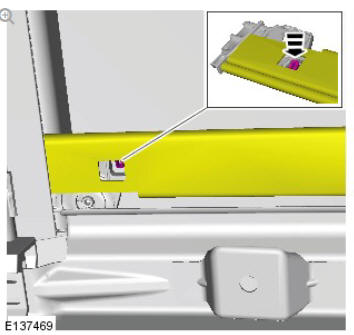

Release the locking tang from the top of the glass roof panel blind.

Glass roof panel blind (G1805063) - Removal

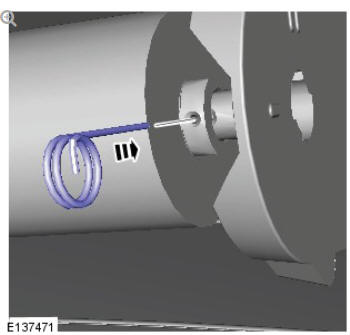

CAUTION:

Discard the component.

NOTE:

Make sure that the alignment marks are correctly aligned to remove the collet.

Glass roof panel blind (G1805063) - Removal

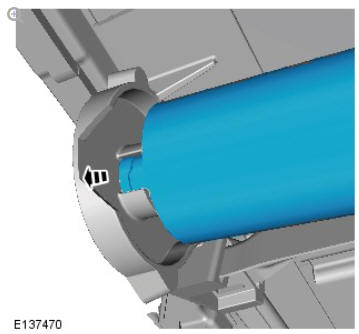

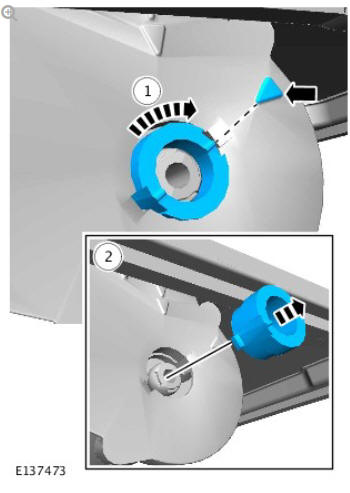

Use a suitable tool, remove the collet.

Glass roof panel blind (G1805063) - Removal

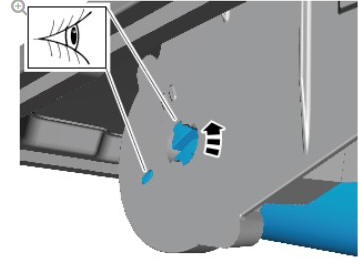

NOTE:

Make sure that the alignment mark and glass roof panel blind are correctly aligned to remove the glass roof panel blind.

Glass roof panel blind (G1805063) - Removal

Rotate the glass roof panel blind until the blind tang is aligned to the mark, as illustrated.

CAUTION:

Care must be taken when feeding the blind behind the roof panel bracket.

Glass roof panel blind (G1805063) - Removal

INSTALLATION

To install, reverse the removal procedure.
