Land Rover Discovery: Glass Roof Panel Blind Motor (G1805064) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Glass, Frames and Mechanisms / Glass Roof Panel Blind Motor (G1805064) / Removal and Installation

PART(S)

PART(S)

REMOVA L

  1. Refer to: 'A' Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: 'B' Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: 'C' Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  4. Refer to: 'D' Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  5. Refer to: Overhead Console (501-12 Instrument Panel and Console, Removal and Installation).
  6. Refer to: Interior Rear View Mirror (501-09 Rear View Mirrors, Removal and Installation).

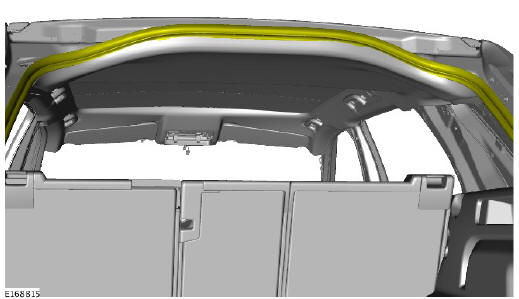

NOTE:

Note the orientation of the seal prior to detaching.

Glass roof panel blind motor (G1805064) removal and installation

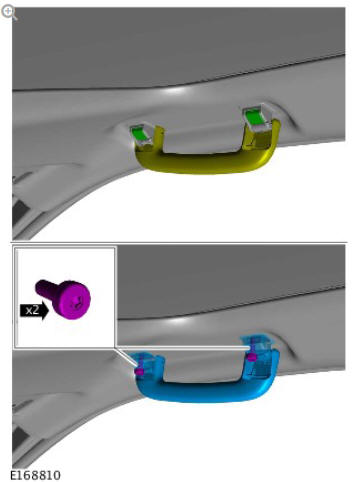

NOTE:

The step must be carried out on both sides.

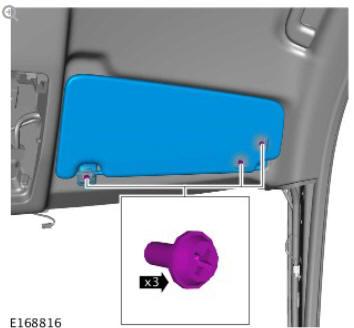

Glass roof panel blind motor (G1805064) removal and installation

Torque: 6 Nm

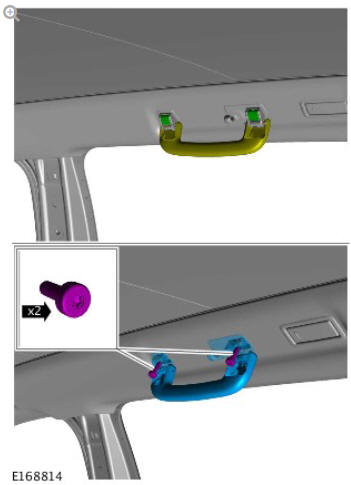

NOTE:

The step must be carried out on both sides.

Glass roof panel blind motor (G1805064) removal and installation

Torque: 6 Nm

NOTE:

The step must be carried out on both sides.

Glass roof panel blind motor (G1805064) removal and installation

Torque: 6 Nm

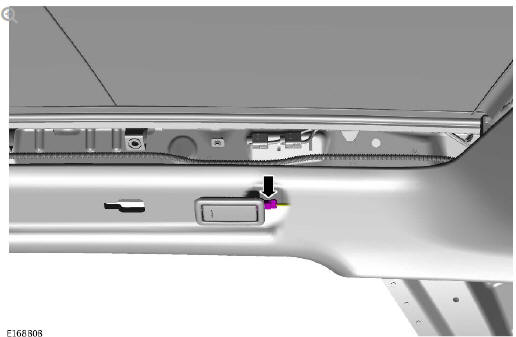

CAUTION:

LH illustration shown, RH is similar.

NOTE:

Position cloth to collect fluid spillage.

Glass roof panel blind motor (G1805064) removal and installation

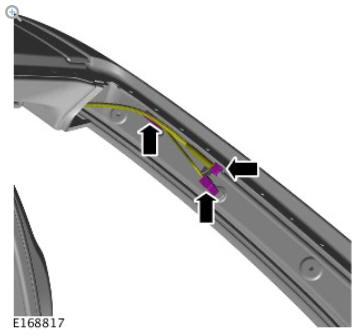

NOTE:

RH illustration shown, LH is similar.

Glass roof panel blind motor (G1805064) removal and installation

CAUTION:

Take extra care not to damage the component.

Glass roof panel blind motor (G1805064) removal and installation

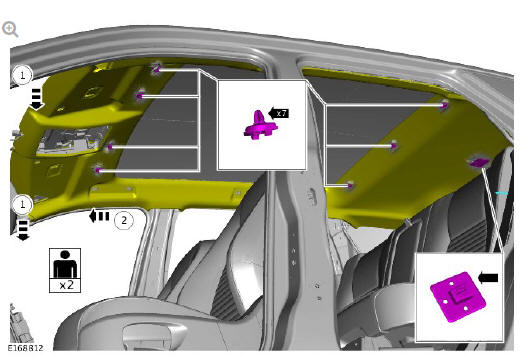

CAUTIONS:

  • Take extra care not to damage the component.
  • Using a suitable plastic trim tool, release the magnetic fixings.

NOTES:

  • Discard the retaining clips.
  • Make sure that there is at least 50mm clearance between the magnetic fixings and the headliner during the removal procedure. The fixings will engage if too close to each other.

Glass roof panel blind motor (G1805064) removal and installation

Renew Part: Retaining clips.

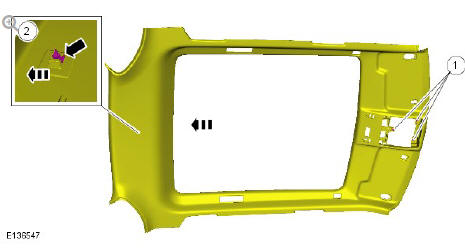

NOTES:

  • Headliner shown removed for clarity.
  • This step requires the aid of another technician.

Glass roof panel blind motor (G1805064) removal and installation

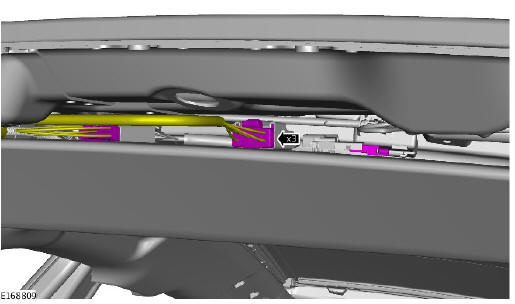

  • Lower the headliner for access.

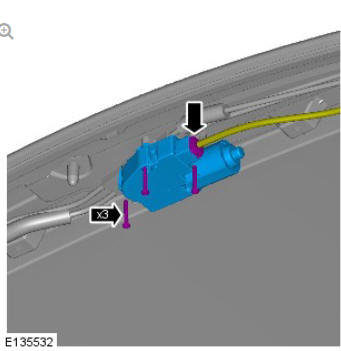

Glass roof panel blind motor (G1805064) removal and installation

Torque: 3.5 Nm

INSTALLATION

To install, reverse the removal procedure.
