Land Rover Discovery: Pedestrian Protection System Pedestrian Protection System Airbag (G2158917) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Seatbelt and Supplemental Restraint
System / Pedestrian Protection System
Pedestrian Protection
System Airbag (G2158917)
/ Removal and Installation
REMOVAL
WARNINGS:
- Do not probe supplemental restraint system (SRS) electrical connectors.
- To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
Make the SRS system safe.
Refer to: Supplemental Restraint System Health and Safety Precautions (100-00 General Information, Description and Operation).
Disconnect the start up battery ground cable.
Refer to: Battery and Cables (414-01 Battery, Mounting and Cables, Description and Operation).
Open the hood.

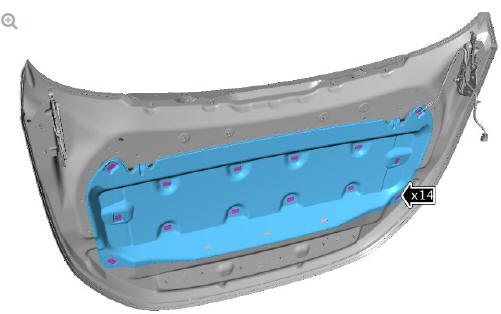

.48.jpg)

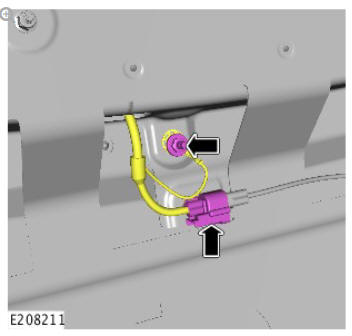

.49.jpg)
Torque: 10 Nm

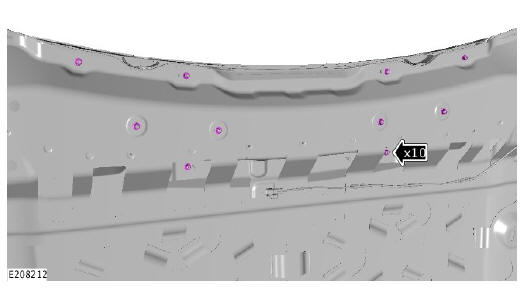

.50.jpg)
Torque: 10 Nm

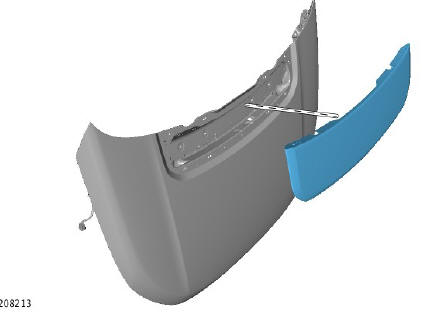

.51.jpg)
INSTALLATION
To install, reverse the removal procedure.
If a new component has been installed, configure using Land Rover approved diagnostic equipment.
